Запчасти Case IH STX380 (06-79) - 500 SERIES AXLE ASSEMBLY - FINAL DRIVE, QUADTRAC TRACTOR (06) - POWER TRAIN

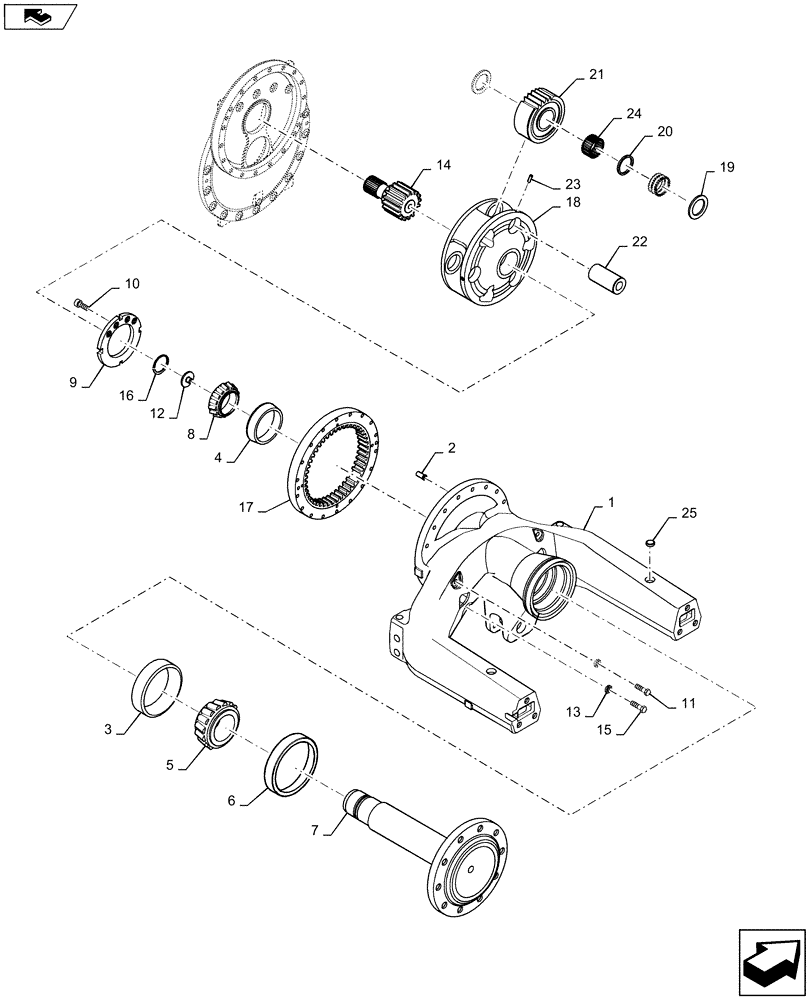

Схема запчастей Case IH STX380 - (06-79) - 500 SERIES AXLE ASSEMBLY - FINAL DRIVE, QUADTRAC TRACTOR (06) - POWER TRAIN
7
9
12
6
18
8
23
22
25
1
24
13
2
4
15
19
17
3
5
16
11
20
14
10
21

Артикул

Название

Примечание

Количество

87423305

FRONT AXLE

QT W/Diff Lock

1шт.

87423305R

REMAN-AXLE

QT Front Axle W/ Diff Lock

1шт.

87423305C

CORE-FRT AXLE w/DL

Return Number

1шт.

87423306

REAR AXLE

QT W/Diff Lock

1шт.

87423306R

REMAN-REAR AXLE 4WD

QT W/Diff Lock

1шт.

87423306C

CORE-REAR AXLE W/DI

Return Number

1шт.

87308304

AXLE CARRIER

Yoke, Incl 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

Housing, Yoke, Incl in 87308304

1шт.

2

837-16040

DOWEL,M16 x 40

2шт.

3

237698A1

BEARING CUP,212.74mm OD x 53.87mm W

1шт.

4

64371H0

BEARING ASSY,157.16mm OD x 26.19mm W

Bearing

1шт.

5

237700A1

TAPERED BEARING,114.3127 mm ID x 66.7766 mm

1шт.

6

369532A2

SEAL,194mm ID x 238.76mm OD x 47mm Thk

1шт.

7

87441344

SHAFT

Axle

1шт.

8

64370H

BEARING, ROLLER,101.6mm ID x 36.12mm W

Cone

1шт.

9

87472512

BEARING LOCK NUT

Flg Socket Hd, M5 x 0.8, G10.9

2шт.

10

84129048

HEX SOC SCREW,FLAT, M8 x 16mm, Cl 10.9

1шт.

11

87301260

BOLT,Hex, M16 x 420mm, Cl 10.9

4шт.

12

1981270C1

INSERT

1шт.

13

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

9шт.

14

360335A1

SHAFT

16 T, Sun Gear

2шт.

15

87301259

BOLT,Hex, M16 x 350mm, Cl 10.9

4шт.

16

101-11350

SNAP RING,#350, Ext

2шт.

17

310695A1

RING GEAR,77T

77 T

2шт.

18

388366A1

PINION CARRIER

GEAR CARRIER Planetary

1шт.

19

87435907

THRUST WASHER,64.3mm ID x 95mm OD x 2.6mm Thk

16шт.

20

86985634

SPACER, RING,66.5mm ID x 76.45mm OD x 7mm L

3шт.

21

310694A2

PLANETARY GEAR,29T

29 T

3шт.

22

310697A3

SHAFT,31.75mm ID x 63.4mm OD x 130mm L

Gear

3шт.

23

838-3826

PIN,M8 x 26, Coiled

3шт.

24

1349347C1

NEEDLE ROLLER,Needle, 6.65mm OD x 34.09mm L

198шт.

25

87326609

PLUG,Exp, 2"

2шт.

Выбрано товаров: 32
