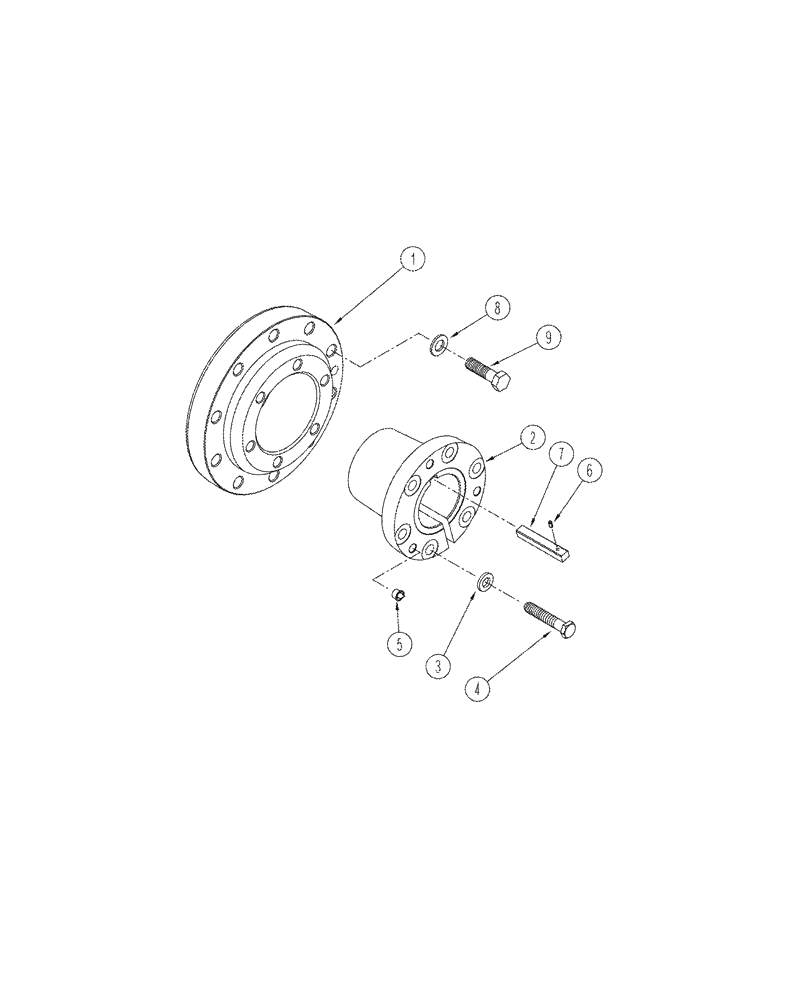

Запчасти Case IH STX380 (06-08) - HUB ASSEMBLY MOUNTING (06) - POWER TRAIN

1

405812A1

HUB

1шт.

2

405816A1

BUSHING

115 mm (4-1/2")

1шт.

3

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

6шт.

4

228273A1

BOLT,Hex, M20 x 2.5 x 110mm, Cl 10.9

6шт.

5

303401A1

PLUG

3шт.

6

38-11608

LOCK PIN,1/4" x 1/2", Slotted

4шт.

7

A63219

KEY

3/4" x 6"

4шт.

8

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

40шт.

9

827-22080

BOLT,Hex, M22 x 2.5 x 80mm, Cl 10.9

40шт.
