(06-28) - FOURTH SHAFT ASSY

Запчасти Case IH STX375 (06-28) - FOURTH SHAFT ASSY (06) - POWER TRAIN

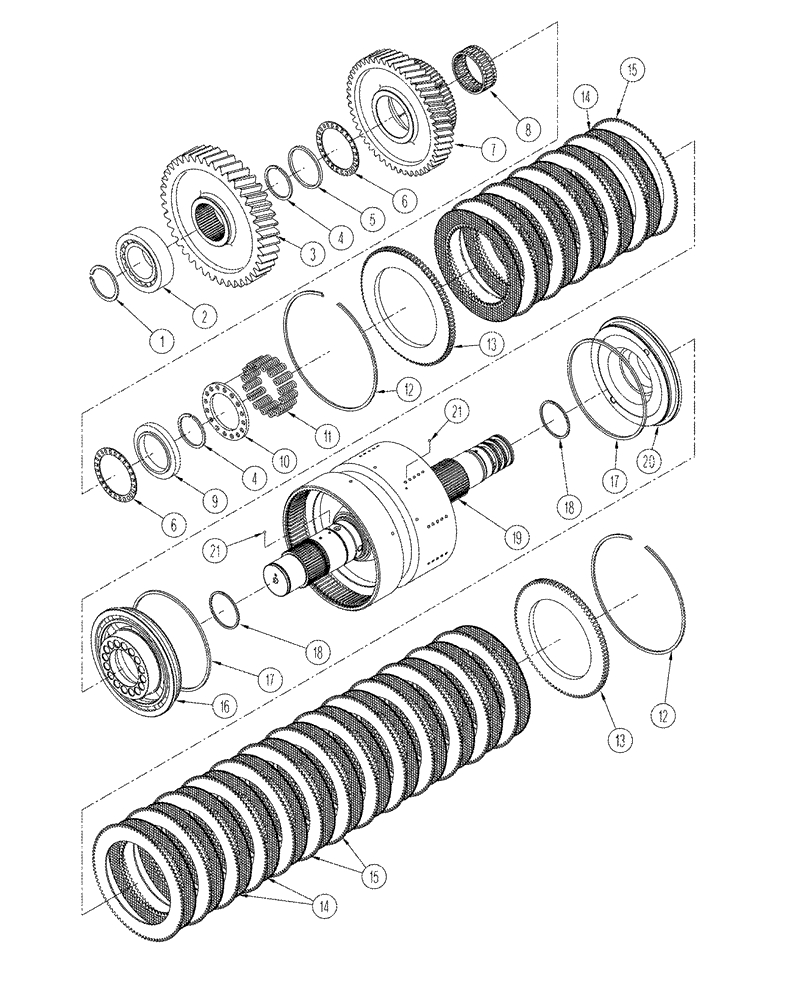

Схема запчастей Case IH STX375 - (06-28) - FOURTH SHAFT ASSY (06) - POWER TRAIN
9
14
12
16
15
19
1
8
14
21
13
18
4
15
10
6
7
17
18
13
12
4
5
6
2
21
3
11
20
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

370540A1

SHAFT ASSY.

fourth, consists of: Ref. 1 - 27

1шт.

1

33-1823T1

RING, SNAP

RING SNAP 2.50 mm

1шт.

1

33-1824T1

RING, SNAP

RING SNAP 2.60 mm

1шт.

1

33-1825T1

RING, SNAP

RING SNAP 2.70 mm

1шт.

1

33-1826T1

RING, SNAP

RING SNAP 2.80 mm

1шт.

1

33-1827T1

RING, SNAP

RING SNAP 2.90 mm

1шт.

1

33-1828T1

RING, SNAP

RING SNAP 3.00 mm

1шт.

2

33-1705T1

TAPERED BEARING

2шт.

3

362610A1

GEAR

drive

1шт.

4

S5040S00F

RING

4шт.

5

362611A1

SPACER

3шт.

6

353060A1

THRUST BEARING

4шт.

7

362612A1

GEAR

driven

1шт.

8

362613A1

NEEDLE BEARING

1шт.

9

362614A1

THRUST WASHER

1шт.

10

362615A1

PLATE

spring retainer

1шт.

11

362616A1

SPRING

16шт.

12

359235A1

RING, SNAP

RING SNAP

2шт.

13

362617A1

PLATE

clutch end

2шт.

14

362618A1

CLUTCH DISC

CLUTCH DISK

19шт.

15

362628A1

CLUTCH DISC

CLUTCH DISK steel, if used, 2.4 mm

1шт.

15

362629A1

CLUTCH DISC

CLUTCH DISK steel, if used, 2.6 mm, Ref. 15, 362628A1 and 362629A1 plates are different sizes. Select the proper combination of plates. Not to exceed 19 total.

1шт.
