Запчасти Case IH STX375 (06-19) - POWER SHIFT TRANSMISSION - HOUSING AND CLUTCHES (06) - POWER TRAIN

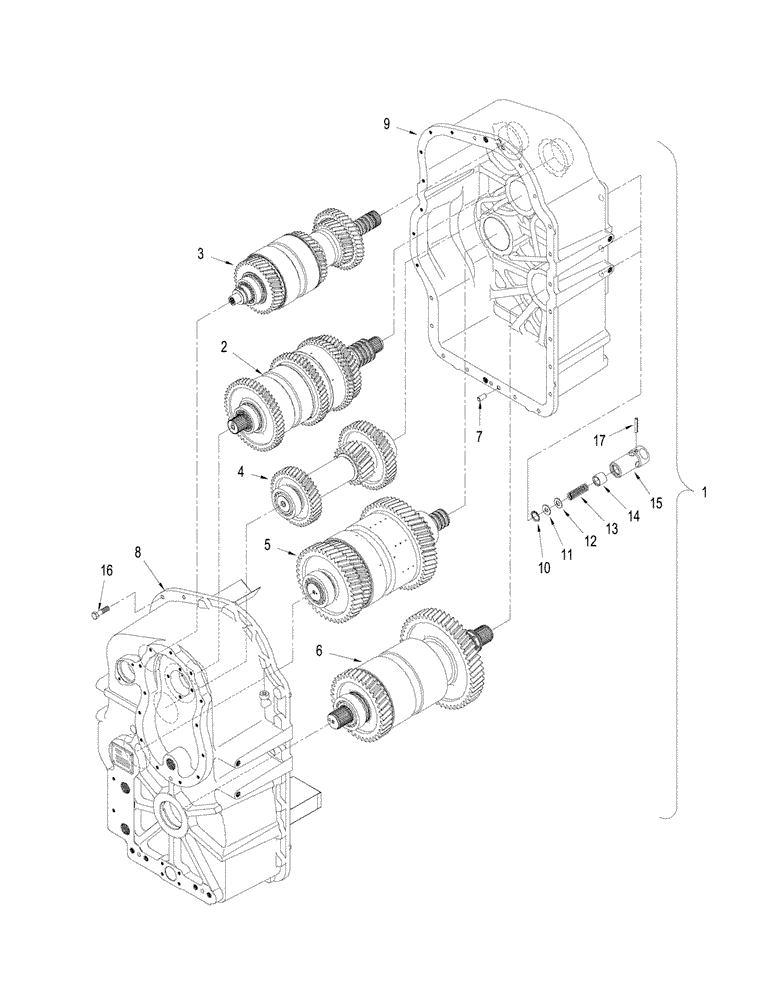

Схема запчастей Case IH STX375 - (06-19) - POWER SHIFT TRANSMISSION - HOUSING AND CLUTCHES (06) - POWER TRAIN
14
8
11
7
10
16
6
9
5
17
2
12
15
13
4
3
1

Артикул

Название

Примечание

Количество

403066A1

TRANSMISSION

TRANSMISSION, 8.5C Yoke, 16 SPD

1шт.

87627458R

REMAN-TRANSMISSION

TRANSMISSION, 8.5C Yoke, 16 SPD

1шт.

87627458C

CORE-TRANSMISSION

Return Part Number, PS3

1шт.

87416587

TRANSMISSION

TRANSMISSION, Closed Loop PS3 - 8C

1шт.

87627456R

REMAN-TRANSMISSION

TRANSMISSION, Closed Loop PS3 - 8C

1шт.

87627456C

CORE-TRANSMISSION

Return Part Number

1шт.

2

87431389

SHAFT

Input, See Figure 06-24, 06-25

1шт.

3

87431395

SHAFT

Second, See Figure 06-26

1шт.

4

NSS

NOT SOLD SEPARAT

Shaft, Third, Order Components, See Figure 06-27

1шт.

5

87431399

SHAFT ASSY.

Fourth, See Figure 06-28, 06-29

1шт.

6

87431402

SHAFT ASSY.

Fifth, See Figure 06-30, 06-31

1шт.

7

427530A1

DOWEL,14mm OD x 31mm L

2шт.

8

370636A1

HOUSING

Rear

1шт.

9

375486A1

HOUSING

Front

1шт.

10

800-2112

SNAP RING,M12, Int

4шт.

11

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

4шт.

12

370542A1

SHIM

4шт.

13

370543A1

SPRING

4шт.

14

370544A1

SPOOL

4шт.

15

370545A1

CAP

4шт.

16

514-831

BOLT,Hex, M12 x 1.25 x 45mm, Cl 8.8, Full Thd

25шт.

17

838-1318

LOCK PIN,3mm OD x 10mm L, Slotted

4шт.

Выбрано товаров: 22
