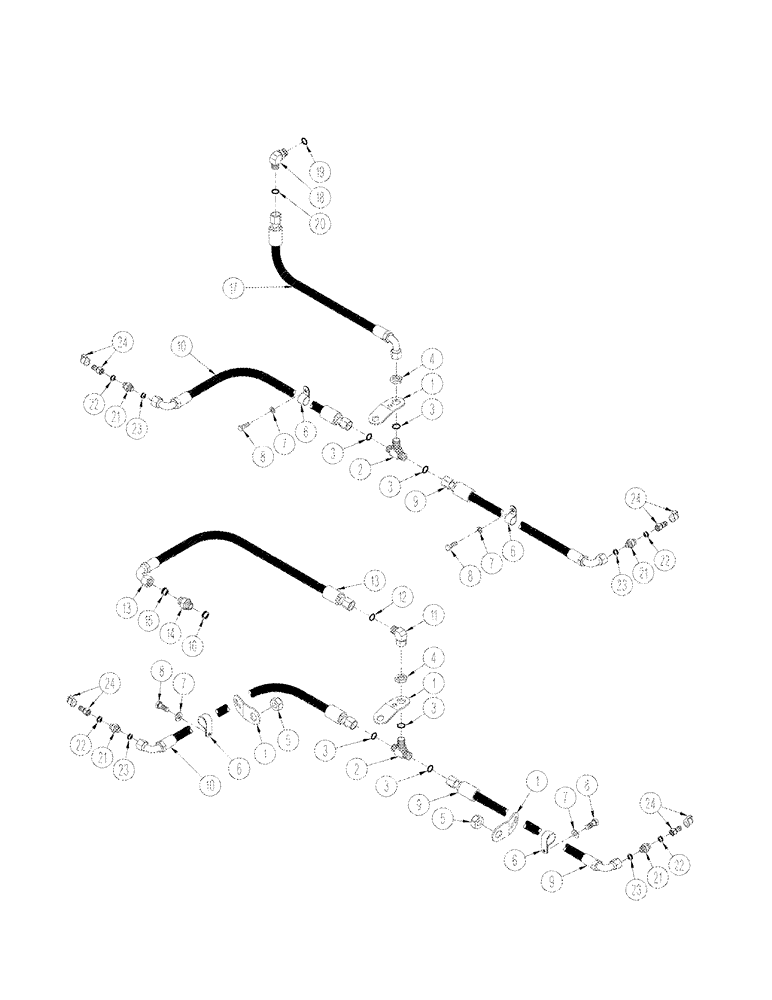

Запчасти Case IH STX375 (06-08) - TRACK TENSIONING (06) - POWER TRAIN

1

349174A1

BRACKET

8шт.

2

701-453

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS

M6 fc sl, Includes: Ref. 3

2шт.

3

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

4

701-1254

BHD LOCK NUT,9/16" - 18

M6

2шт.

5

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

6

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

16шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

18шт.

8

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

16шт.

9

335024A4

HOSE ASSY.

1816 mm (71 in.)

2шт.

10

376282A2

HOSE ASSY.

1943 mm (76 in.)

2шт.

11

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

M6 fc sl x swl, Includes: Ref. 12

1шт.

12

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

13

366721A1

HOSE ASSY.

1700 mm (67 in.)

1шт.

14

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

M8 fc sl x 14 or, Includes: Ref. 15 and 16

1шт.

15

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

16

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

17

366720A1

HOSE ASSY.,9.53mm ID x 900mm L

900 mm (35 in.)

1шт.

18

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

M14 or x 8 fc sl, Includes: Ref. 19 and 20

1шт.

19

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

20

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

21

314270A1

CHECK VALVE

M10 fc sl x 18 or, Includes: Ref. 22 and 23

4шт.

22

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

4шт.

23

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

24

325647A2

COUPLING

Diagnostic, M18 - Inc. items 25 & 26

4шт.

25

86502604

DUST CAP

Not Shown

1шт.

26

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

Not Shown

1шт.
