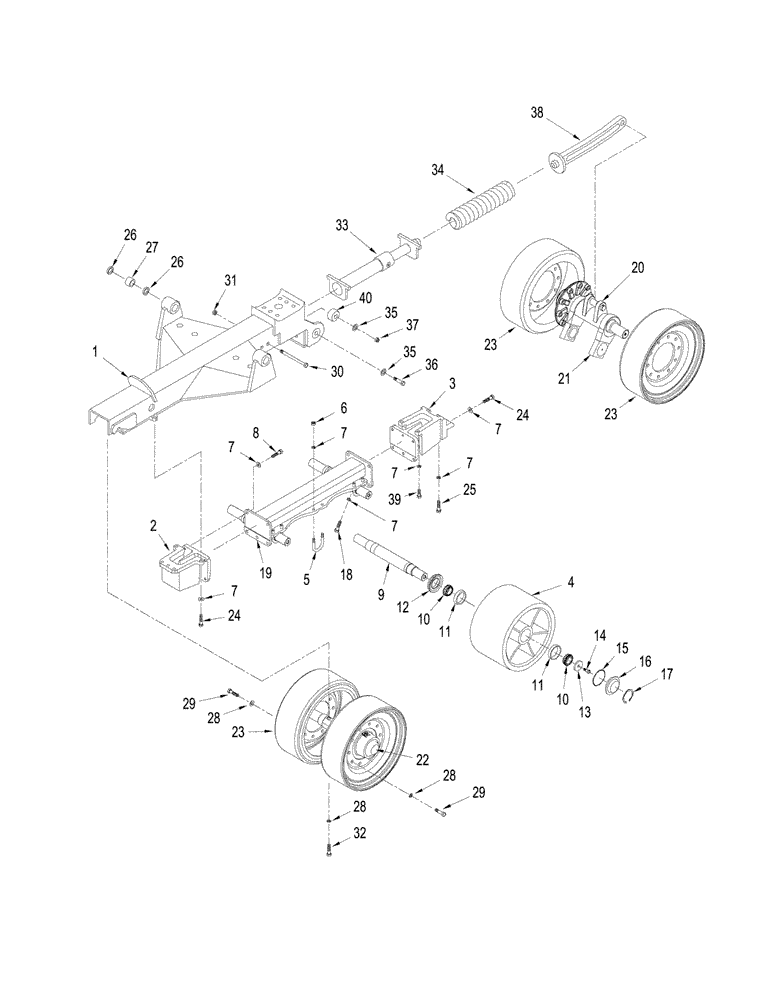

Запчасти Case IH STX375 (06-04) - UNDERCARRIAGE MOUNTING (06) - POWER TRAIN

1

371804A3

MOUNTING PARTS

undercarriage

1шт.

379714A2

ROLLER ASSY.

consists of: Ref. 2 - 19

1шт.

389759A1

ROLLER ASSY.

scrapper application, consists of: Ref. 2 - 19

6шт.

2

379694A2

SUSPENSION

rear

1шт.

2

389761A1

SUSPENSION

rear scrapper application

1шт.

2

389761A1R

SUSPENSION

Mount, Rear. Remanufactured

1шт.

2

389761A1C

SUSPENSION

Return Number

1шт.

3

379702A2

SUSPENSION

front

1шт.

3

389763A1

SUSPENSION

front scrapper application

1шт.

3

389763A1R

SUSPENSION

Mount, Front. Remanufactured

1шт.

3

389763A1C

SUSPENSION

Return Number

1шт.

4

379715A1

WHEEL

Order P/N 379715A1 for units built before 2005

6шт.

4

47487680R

REMAN-WHEEL ROLLER

See Note. Other Parts Required When Replacing 379715A1

6шт.

4

47487680C

CORE-WHEEL ROLLER

Return Number

6шт.

5

231765A1

U-BOLT,M16 x 2 x 30mm Threaded, x 80.2mm W

BOLT "U"

6шт.

6

832-46416

NUT,M16 x 2, Cl 8

12шт.

7

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

22шт.

8

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

8шт.

9

380744A2

SHAFT

3шт.

10

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

2-1/16 in. ID

12шт.

11

625743C1

BEARING CUP,90mm OD x 18.5mm W

3-35/64 OD

12шт.

12

339936A2

SEAL

multiple lip

6шт.

13

70-6520T1

WASHER

6шт.

14

627-20040

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

6шт.

15

238-5344

O-RING,0.21" Thk x 3.85" ID, -344, Cl 5, 75 Duro

3/4 x 3-7/8; 5

6шт.

16

368416A1

CAP

wheel

6шт.

17

800-21110

SNAP RING,M110, Int

M10

6шт.

18

827-16140

BOLT,Hex, M16 x 2 x 140mm, Cl 10.9

2шт.

19

379697A2

MOUNTING PARTS

roller wheel, order from machinery price list

1шт.

20

303965A3

FRONT IDLER

see Figure 06-05

1шт.

21

NSS

NOT SOLD SEPARAT

PIVOT ASSY, order components, see Figure 06-05

2шт.

22

309084A3

AXLE

rear idler, see Figure 06-06

1шт.

23

323903A2

WHEEL,700mm OD x 253.4mm W

idler

4шт.

23

323903A2R

WHEEL

STX375 (BSN JEE0099501), STX440

4шт.

23

323903A2C

WHEEL

Return Number

4шт.

24

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

9шт.

25

827-16180

BOLT,Hex, M16 x 2 x 180mm, Cl 10.9

2шт.

26

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

4шт.

27

307278A1

BUSHING,44.55mm ID x 57.27mm OD x 47mm L

2шт.

28

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

42шт.

29

627-22060

BOLT,Hex, M22 x 2.5 x 60mm, Cl 10.9, Full Thd

M20 x 50; 10.9

40шт.

30

827-20200

BOLT,Hex, M20 x 2.5 x 200mm, Cl 10.9

1шт.

31

832-46420

NUT,M20 x 2.5, Cl 8

1шт.

32

827-22130

BOLT,Hex, M22 x 2.5 x 130mm, Cl 10.9

2шт.

33

372269A1

TENSIONER

track

1шт.

33

87304299R

REMAN-HYD CYLINDER

STX375 (BSN JEE0099501), STX440, Both CASE IH 4WD TRACTOR, track, Reman for New PN 372269A1

1шт.

33

87304299C

CORE-HYD CYLINDER

Return Number

1шт.

34

255729A1

SPRING

1шт.

35

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

(26 ID x 44 x 5 mm)

2шт.

36

827-24270

BOLT,Hex, M24 x 3 x 270mm, Cl 10.9

2шт.

37

829-1424

NUT,M24, Cl 10

1шт.

38

320950A3

TENSIONER

1шт.

39

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

2шт.

40

379703A1

SHAFT

idler pivot

2шт.
