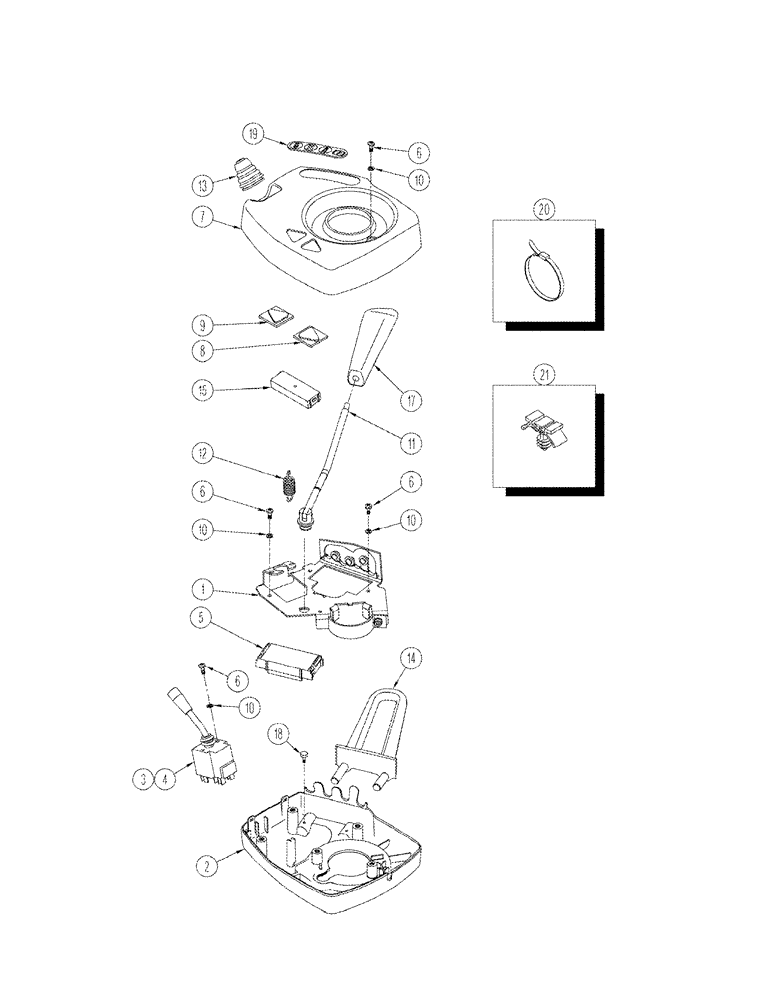

Запчасти Case IH STX375 (05-07) - TRANSMISSION CONTROL ASSY (05) - STEERING

376785A1

CONTROL

with self cancel, consists of: Ref. 1 - 3, 5 - 19

1шт.

360058A1

CONTROL

without self cancel, Includes: Ref. 1, 2, 4 - 19

1шт.

1

325362A1

CHASSIS

1шт.

2

325065A1

HOUSING

lower

1шт.

3

284777A1

SWITCH

with self cancel

1шт.

4

284776A1

SWITCH

Switch Universal w/Dipping, without self cancel

1шт.

5

325532A1

SWITCH

1шт.

6

840-1410

SCREW,Pan, M4 x 10mm, Cl 4.8

7шт.

7

325064A1

HOUSING

upper

1шт.

8

303466A1

SYMBOLS

SYMBOL RH

1шт.

9

303467A1

SYMBOLS

SYMBOL LH

1шт.

10

892-11004

LOCK WASHER,M4

7шт.

11

325363A1

LEVER

1шт.

12

250939A1

SPRING

1шт.

13

325068A1

BELLOWS

1шт.

14

325066A1

GUARD

1шт.

15

303465A2

LAMP,12V, 2W

with self cancel

1шт.

15

404053A1

LAMP

without self cancel

1шт.

16

375681A1

SENSOR

Transmission Control And Turn Signal Self-Cancelling Sensor (Sensor Not Serviced Separately), not illustrated

1шт.

16

84180381R

REMAN-SENSOR

STX375 (BSN JEE0099501), STX440, Both CASE IH 4WD TRACTOR, Transmission Control and Turn Signal Self-Cancelling Sensor, Reman for New PN 375681A1

1шт.

16

84180381C

CORE-SENSOR

Return Number

1шт.

16

303463A1

HARNESS

without self cancel, not illustrated

1шт.

17

325533A1

HANDLE

1шт.

18

905974R1

SELF-TAP SCREW,Pan Hd, M2.9 x 13

2шт.

19

358353A1

SYMBOLS

SYMBOL

1шт.

20

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

1шт.

21

392699A1

FASTENER

1шт.
