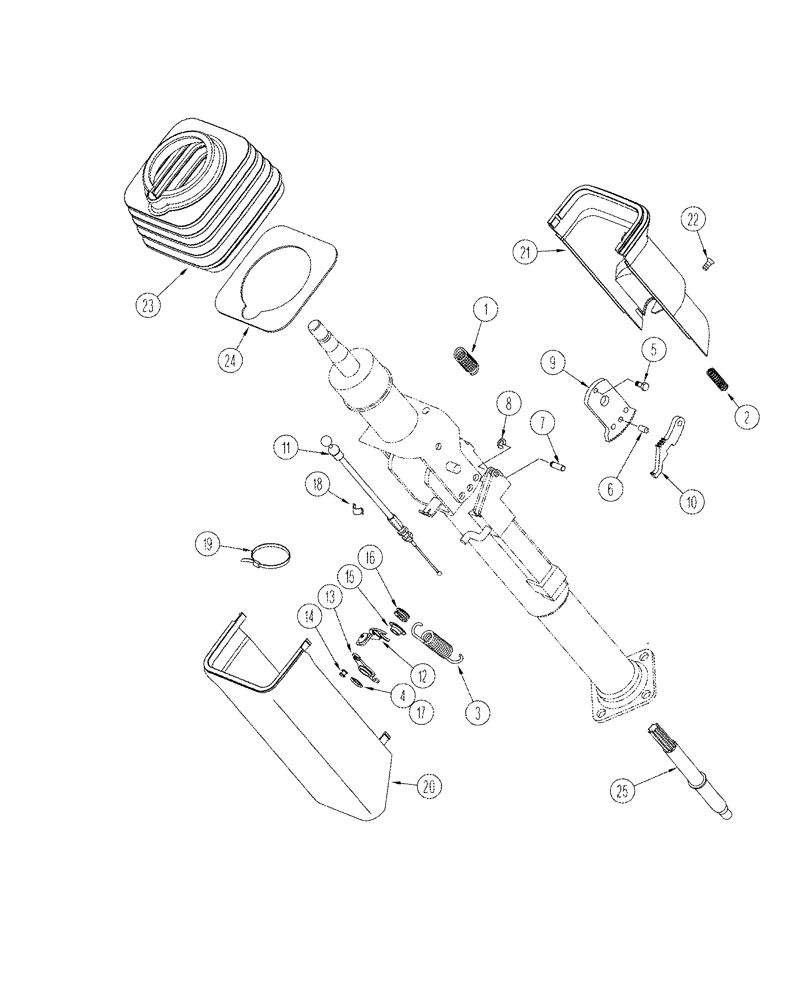

Запчасти Case IH STX375 (05-06) - STEERING COLUMN (05) - STEERING

373388A2

STEERING COLUMN

consists of: Ref. 1 - 25

1шт.

389979A1

PACKAGE, REPAIR

column springs, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

SPRING tilt return

2шт.

2

NSS

NOT SOLD SEPARAT

SPRING

1шт.

3

NSS

NOT SOLD SEPARAT

SPRING telescoping

1шт.

4

NSS

NOT SOLD SEPARAT

CLIP

1шт.

318942A1

REPAIR KIT

tilt locking, Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

BOLT

3шт.

6

NSS

NOT SOLD SEPARAT

PIN dowel

1шт.

7

NSS

NOT SOLD SEPARAT

PIN

1шт.

8

NSS

NOT SOLD SEPARAT

CLIP

1шт.

9

NSS

NOT SOLD SEPARAT

PLATE tilt positioning

3шт.

10

NSS

NOT SOLD SEPARAT

CATCH

1шт.

389889A1

PACKAGE, REPAIR

lever device, Includes: Ref. 11 - 19

1шт.

11

NSS

NOT SOLD SEPARAT

CABLE

1шт.

12

NSS

NOT SOLD SEPARAT

LEVER upper release

1шт.

13

NSS

NOT SOLD SEPARAT

LEVER lower release

1шт.

14

NSS

NOT SOLD SEPARAT

RIVET

1шт.

15

NSS

NOT SOLD SEPARAT

BUSHING

1шт.

16

NSS

NOT SOLD SEPARAT

BUSHING

1шт.

17

NSS

NOT SOLD SEPARAT

CLIP

1шт.

18

NSS

NOT SOLD SEPARAT

HOLDER

1шт.

19

NSS

NOT SOLD SEPARAT

STRAP

1шт.

284997A1

PACKAGE, REPAIR

cover, Includes: Ref. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

COVER lower column

1шт.

21

NSS

NOT SOLD SEPARAT

COVER upper column

1шт.

22

NSS

NOT SOLD SEPARAT

SCREW

1шт.

318940A1

PACKAGE,SERVICE

bellows, Includes: Ref. 23 - 24

1шт.

23

NSS

NOT SOLD SEPARAT

BOOT

1шт.

24

NSS

NOT SOLD SEPARAT

PLATE

1шт.

25

389980A1

SHAFT

1шт.
