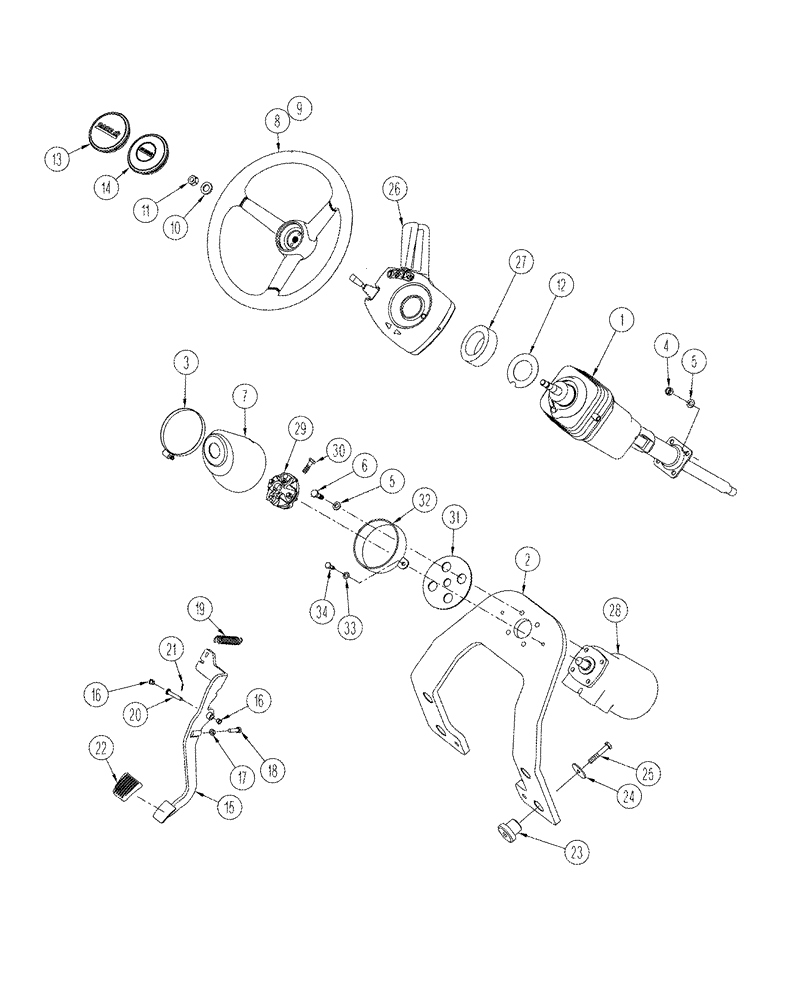

Запчасти Case IH STX375 (05-05) - STEERING WHEEL AND COLUMN (05) - STEERING

1

373388A2

STEERING COLUMN

see Figure 05-06

1шт.

2

379596A3

SUPPORT

1шт.

3

214-1580

HOSE CLAMP,#80, 4.62" - 5.5", Type F Worm, W/ Liner

1шт.

4

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

7

373193A1

BOOT

1шт.

8

224818A3

STEERING WHEEL

standard cab (1)

1шт.

9

301200A1

STEERING WHEEL

deluxe cab (1)

1шт.

9

359033A1

STEERING WHEEL

luxury cab (1)

1шт.

10

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

11

825-11414

NUT,M14 x 1.5, Cl 8

1шт.

12

1977448C2

WASHER

1шт.

13

224819A2

CAP

standard cab (1)

1шт.

14

361024A3

CAP

deluxe cab (1), luxury cab (1)

1шт.

15

311748A3

PEDAL

1шт.

16

282892A1

BUSHING,8mm ID x 9.6mm OD x 8mm L

2шт.

17

829-1508

NUT,M8, Cl 10

1шт.

18

514-633

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

19

311812A1

SPRING

1шт.

20

729-845

CLEVIS PIN,M8 x 45

1шт.

21

733-2012

COTTER PIN,M2 x 12

1шт.

22

323657A1

PAD

1шт.

23

A59514

RUBBER BUSHING,13.49mm ID x 34.29mm OD x 41.1mm L

4шт.

24

495-81145

WASHER,13/32" x 1 3/4" x .120"

4шт.

25

627-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9, Full Thd

4шт.

26

360058A1

CONTROL

transmission, without self cancel, see Figure 05-07

1шт.

26

376785A1

CONTROL

transmission, with self cancel, see Figure 05-07

1шт.

27

253679A1

RING

used with self cancel

1шт.

28

373374A2

VALVE, CONTROL

steering, see Figure 05-03

1шт.

28

373374A2R

REMAN-STEERING VALVE

Reman For New P/N 373374A2, Steering

1шт.

28

373374A2C

CORE-STEERING VALVE

Return Part Number

1шт.

29

L100096

ISOLATOR

1шт.

30

414-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

2шт.

31

373267A1

SEAL

1шт.

32

373194A1

HOUSING

boot

1шт.

33

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

34

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

6

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.
