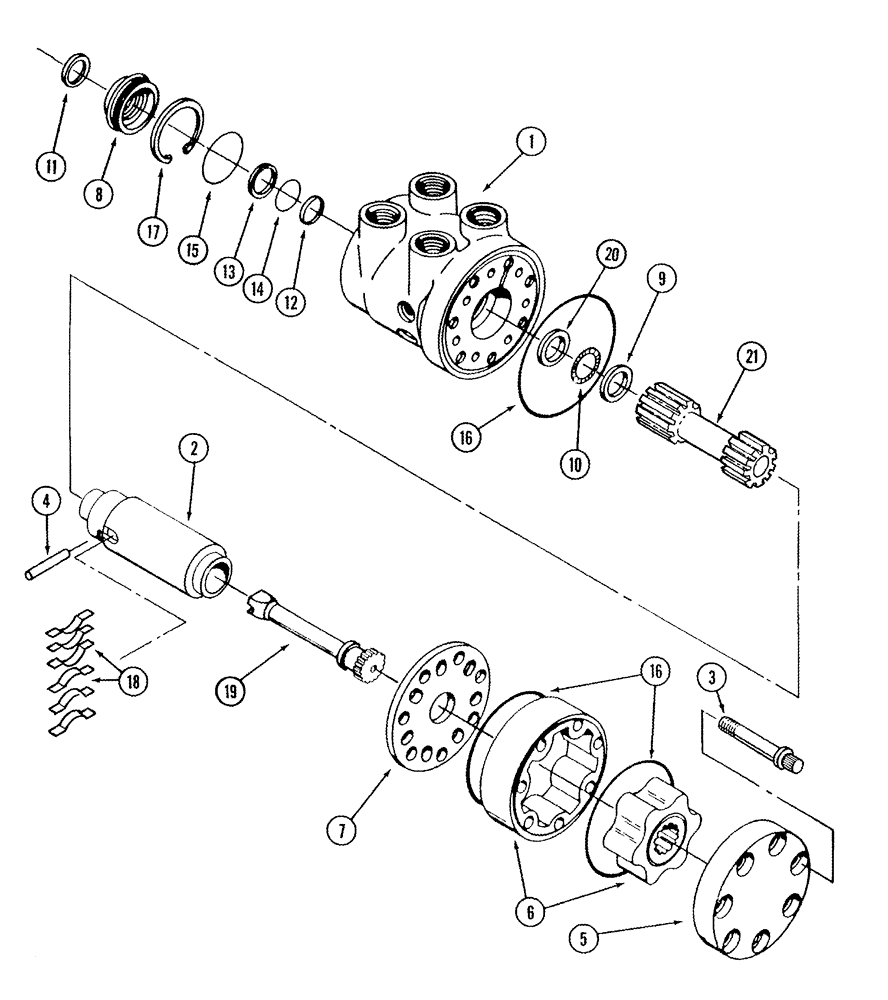

Запчасти Case IH STX375 (05-03) - STEERING CONTROL VALVE (05) - STEERING

373374A2

VALVE, CONTROL

steering control, consists of: Ref. 1 - 21

1шт.

373374A2R

REMAN-STEERING VALVE

Reman For New P/N 373374A2, Steering Control

1шт.

373374A2C

CORE-STEERING VALVE

Return Part Number

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

3

S302004

BOLT

12-point

7шт.

4

S301999

PIN

1шт.

5

50-2710T1

CAP

end

1шт.

6

50-2990T91

ROTOR ASSY.

set

1шт.

7

50-2707T1

WEAR PLATE

1шт.

8

50-3604T1

SEAL RETAINER

1шт.

9

D82804

RACE

1шт.

10

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

1шт.

11

18-137

OIL SEAL

input

1шт.

12

N13313

SEAL,25.1mm ID x 26.7mm OD x 2.6mm Thk

Teflon

1шт.

13

50-2703T1

BACK-UP RING

1шт.

14

238-5121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1шт.

15

50-2705T1

O-RING

1шт.

16

50-2708T1

O-RING

3шт.

17

103-21237

SNAP RING,2.375", Int, #237

1шт.

18

NSS

NOT SOLD SEPARAT

SPRING centering

1шт.

19

50-2706T1

SHAFT

drive

1шт.

20

D82804

RACE

bearing

1шт.

21

NSS

NOT SOLD SEPARAT

SHAFT steering

1шт.

400702A1

KIT

centering spring

1шт.

400703A1

SEAL KIT

1шт.
