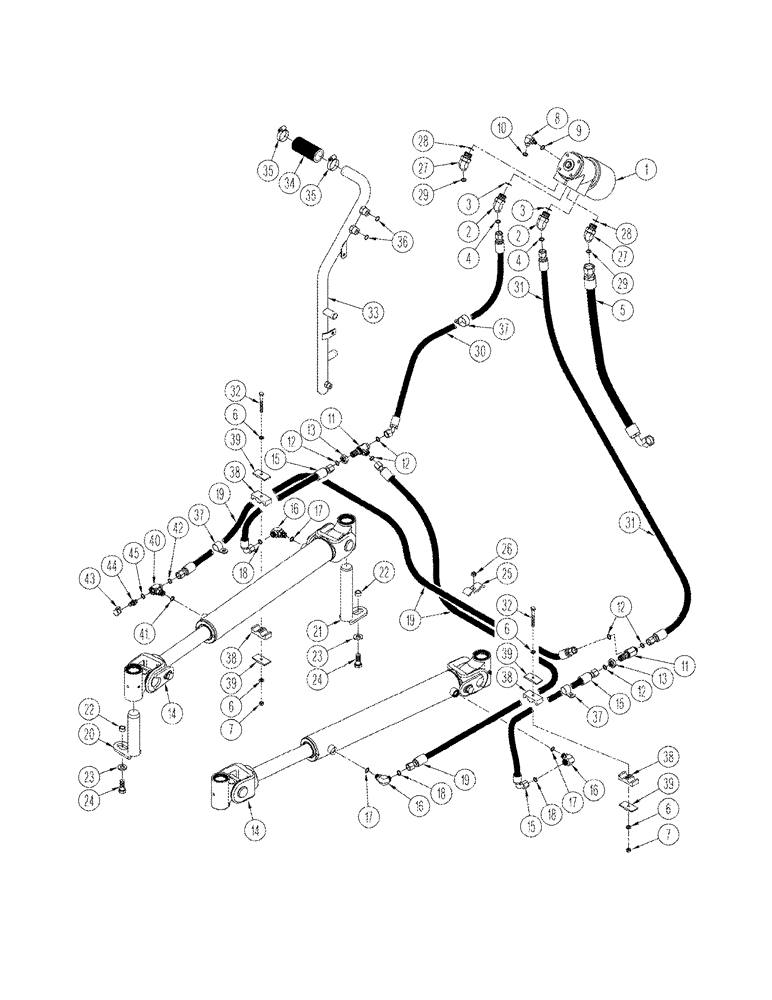

Запчасти Case IH STX375 (05-01) - HYDRAULICS STEERING (05) - STEERING

1

373374A2

VALVE, CONTROL

steering, see Figure 05-03

1шт.

1

373374A2R

REMAN-STEERING VALVE

Reman For New P/N 373374A2, Steering

1шт.

1

373374A2C

CORE-STEERING VALVE

Return Part Number

1шт.

2

700-387

ELBOW,45 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

M20 fc sl x 2.7 or, Includes: Ref. 3 and 4

2шт.

3

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

3шт.

4

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

5

327494A1

HOSE ASSY.,19.05mm ID x 1240mm L

1240 mm (49 in.)

1шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

9шт.

8

700-311

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M12 x 1.5 Male ORB

11/16 fc sl x 12 or, Includes: Ref. 9 and 10

1шт.

9

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

10

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

11

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

M12 fc sl x blkhd fc sl, Includes: Ref. 12

2шт.

12

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

13

701-903

NUT,13/16" - 16

2шт.

14

304933A1

CYLINDER

articulation, order components, see Figure 05-02

2шт.

15

367244A1

HOSE,12.7mm ID x 550mm L

550 mm (21-1/2 in.)

2шт.

16

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. Ref. 17 and 18

3шт.

17

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

3шт.

18

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

19

367243A1

HOSE ASSY.

1500 mm (59 in.)

2шт.

20

70-6076T3

PIN

1-3/4 x 7-1/4

2шт.

21

70-6085T2

PIN

1-3/4 x 9-1/4

2шт.

22

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

4шт.

23

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

4шт.

24

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

25

R15257

CLAMP

1шт.

26

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

27

700-388

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x M27 x 2 Male ORB

M12 fc sl x 27 or, Includes: Ref. 28 and 29

2шт.

28

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

29

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

30

327460A2

HOSE ASSY.

2285 mm (90 in.)

1шт.

31

381704A2

HOSE ASSY.

2542 mm (100 in.)

1шт.

32

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

2шт.

33

394306A1

TUBE,38.1 mm OD

return

1шт.

34

1-4571

HOSE

114 mm (4-1/2 in.)

1шт.

35

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

36

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

37

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

P-type

6шт.

38

50-2551T1

CLAMP

4шт.

39

50-2533T1

PLATE

4шт.

40

364967A1

TEE,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB x M14 x 1.5 Female ORB

M18 or, Includes: Ref. 41 and 42

1шт.

41

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

42

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

178889A1

DIAGNOSTIC COUPLER

diagnostic, Includes: Ref. 43 and 44

1шт.

43

H434163

DUST CAP

1шт.

44

182606A1

HYD CONNECTOR

Includes: Ref. 45

1шт.

45

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.
