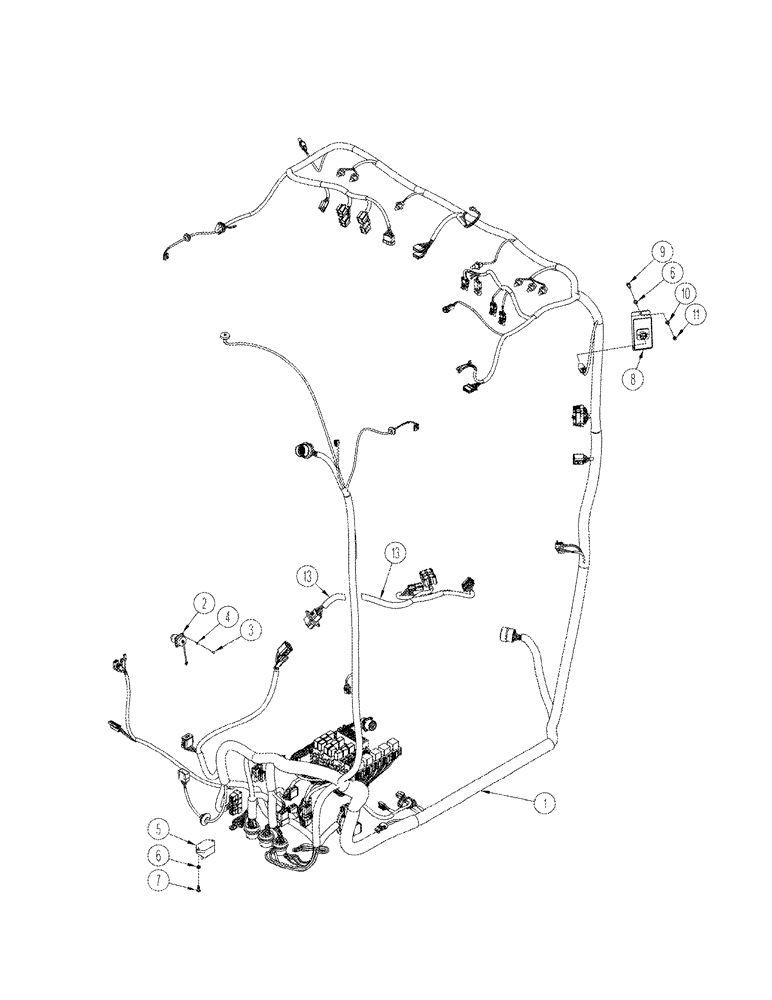

Запчасти Case IH STX375 (04-23) - HARNESS MAIN CAB, STANDARD CAB (04) - ELECTRICAL SYSTEMS

403776A1

CLUSTER, INSTR.

CLUSTER, INSTRUMENT electronics, see Figure 04-25, consists of: Ref. 1

1шт.

1

NSS

NOT SOLD SEPARAT

HARNESS main cab

1шт.

2

227739A2

POWER SOCKET

power

1шт.

3

383986A1

RIVET

4шт.

4

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

(3.2 x 7 x 0.5 mm)

8шт.

5

20-2041T2

CIRCUIT BREAKER

1шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

7

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

2шт.

8

284638A2

ELEC CONNECTOR,4 Pin

1шт.

9

863-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

2шт.

10

892-11006

LOCK WASHER,M6

2шт.

11

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

2шт.

12

388811A1

CIGAR LIGHTER

not illustrated

1шт.

13

403757A1

HARNESS

no armrest unit

1шт.
