(04-16) - BATTERIES WHEEL TRACTOR

Запчасти Case IH STX375 (04-16) - BATTERIES WHEEL TRACTOR (04) - ELECTRICAL SYSTEMS

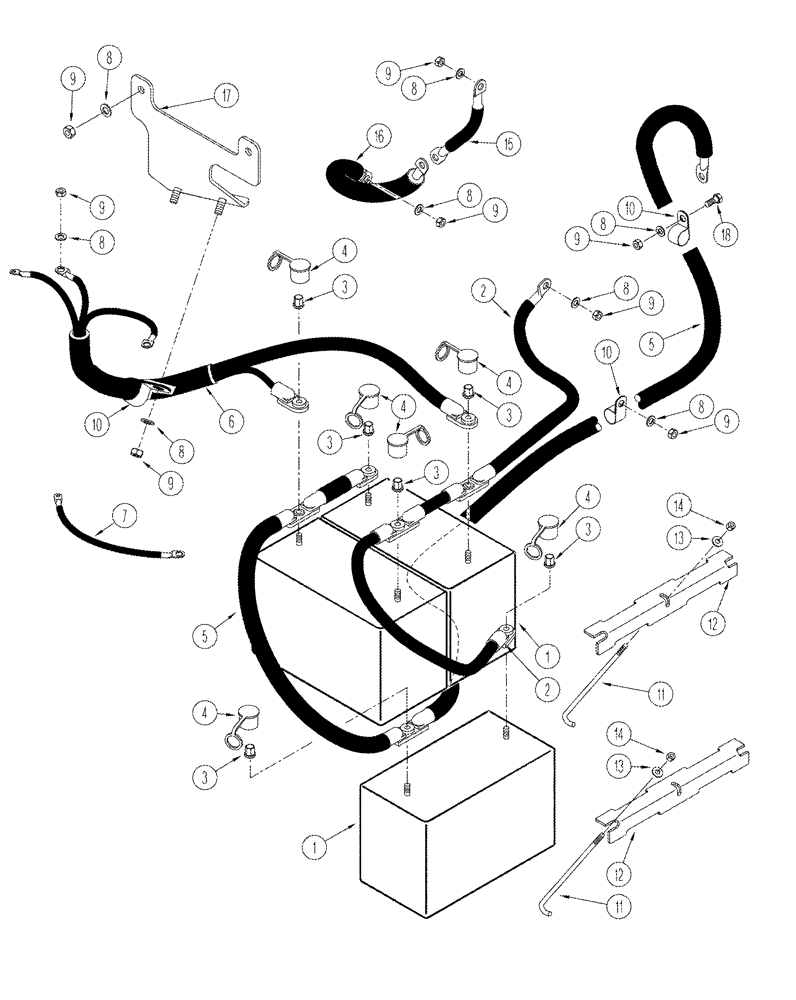

Схема запчастей Case IH STX375 - (04-16) - BATTERIES WHEEL TRACTOR (04) - ELECTRICAL SYSTEMS
3
4
6
9
8
3
8
2
11
7
8
11
9
9
18
3
2
8
10
9
4
12
9
4
15
4
17
8
12
14
10
5
5
10
8
3
3
1
13
13
1
4
16
8
6
14
9
9
9
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BMF31GS

DRY BATTERY

1000 cca

3шт.

2

361986A1

CABLE

ground, Includes: Ref. 3 and 4

1шт.

3

313189A1

NUT

2шт.

4

NSS

NOT SOLD SEPARAT

CAP

2шт.

5

361987A2

CABLE

positive, Includes: Ref. 3 and 4

1шт.

6

361988A3

HARNESS

cab power, Includes: Ref. 3 and 4

1шт.

7

364590A1

CABLE

circuit breaker

1шт.

9

829-1410

NUT,M10 x 1.5, Cl 10.9

8шт.

10

515-25238

CLAMP,15/16", Insul, 1/2" Bolt

3шт.

11

365357A1

ROD

3шт.

12

365358A2

BRACKET

2шт.

14

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

15

361989A1

CABLE

engine ground

1шт.

16

364591A1

CABLE

Chassis Ground

1шт.

17

365035A5

BRACKET

1шт.

18

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

13

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.
