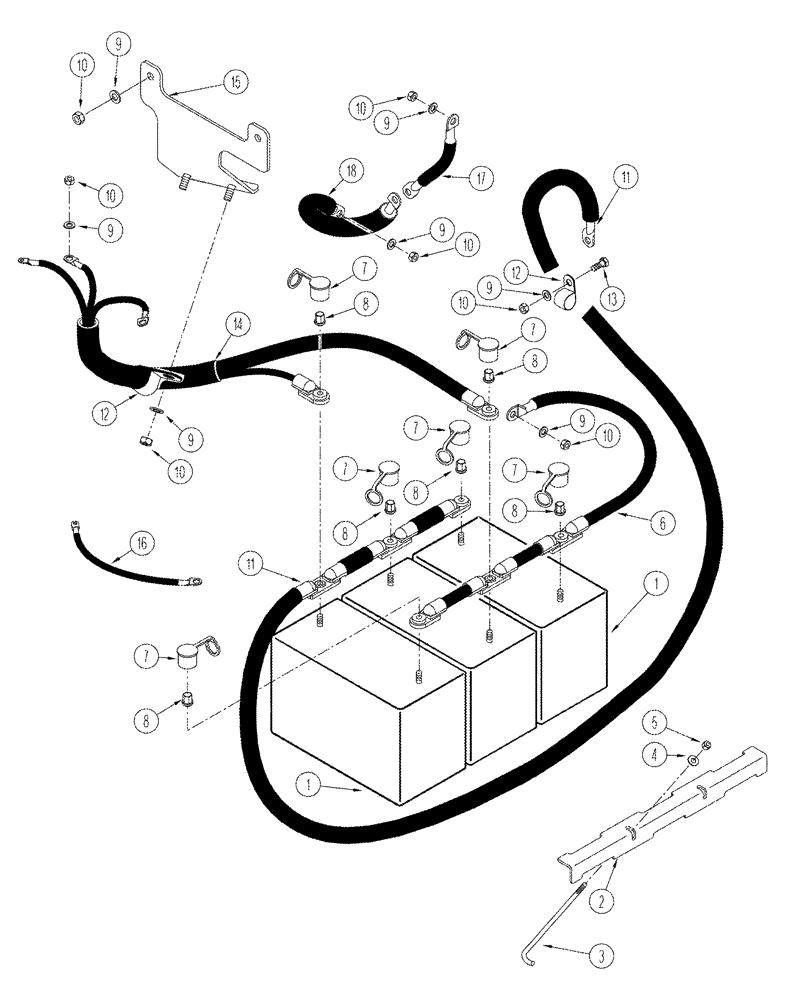

Запчасти Case IH STX375 (04-15) - BATTERIES QUADTRAC TRACTOR (04) - ELECTRICAL SYSTEMS

1

BMF31GS

DRY BATTERY

1000 cca

3шт.

2

366892A2

BRACKET

1шт.

3

365357A1

ROD

2шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

6

366724A1

CABLE

ground, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

CAP

2шт.

8

313189A1

NUT

2шт.

10

829-1410

NUT,M10 x 1.5, Cl 10.9

9шт.

11

366725A2

CABLE

positive, Includes: Ref. 7 and 8

1шт.

12

515-25254

CLAMP,1", Insul, 1/2" Bolt

2шт.

13

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

14

361988A3

HARNESS

cab power, Includes: Ref. 7 and 8

1шт.

15

365035A5

BRACKET

1шт.

16

364590A1

CABLE

circuit breaker

1шт.

17

361989A1

CABLE

engine ground

1шт.

18

364591A1

CABLE

Chassis Ground

1шт.

19

515-25238

CLAMP,15/16", Insul, 1/2" Bolt

Not Illustrated

2шт.

4

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

9шт.
