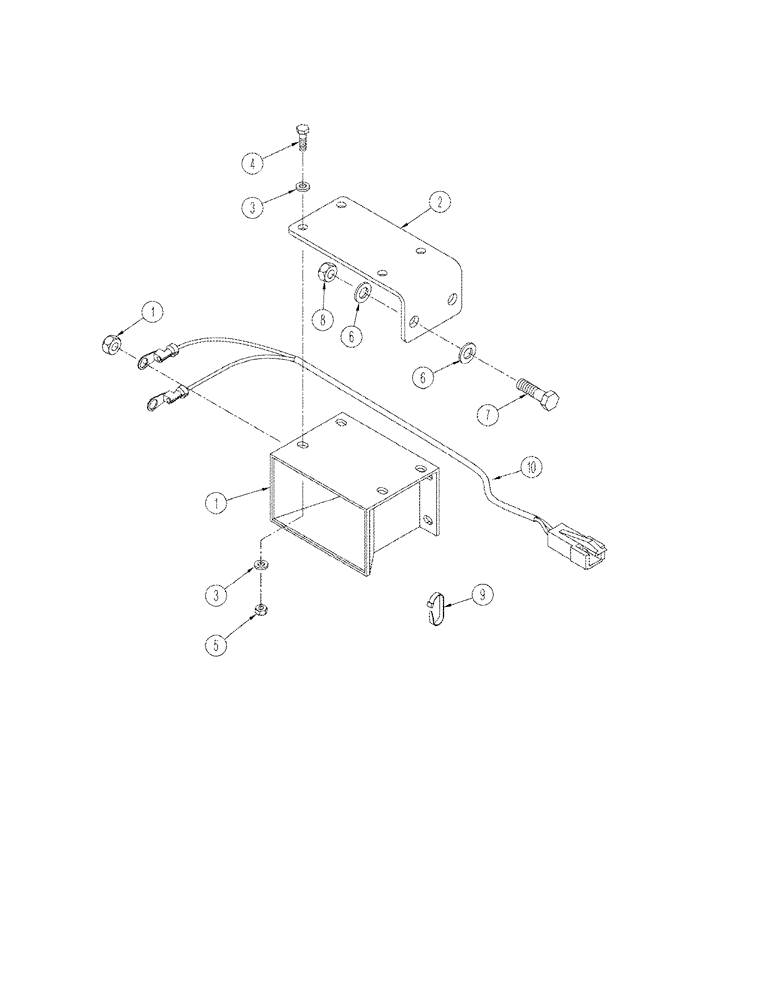

Запчасти Case IH STX375 (04-12) - ALARM BACK-UP (04) - ELECTRICAL SYSTEMS

1

D121972

ALARM

Includes: nuts

1шт.

2

384158A1

BRACKET

1шт.

3

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

8шт.

4

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

5

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

4шт.

7

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

8

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

9

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.

10

391364A1

HARNESS

1шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.
