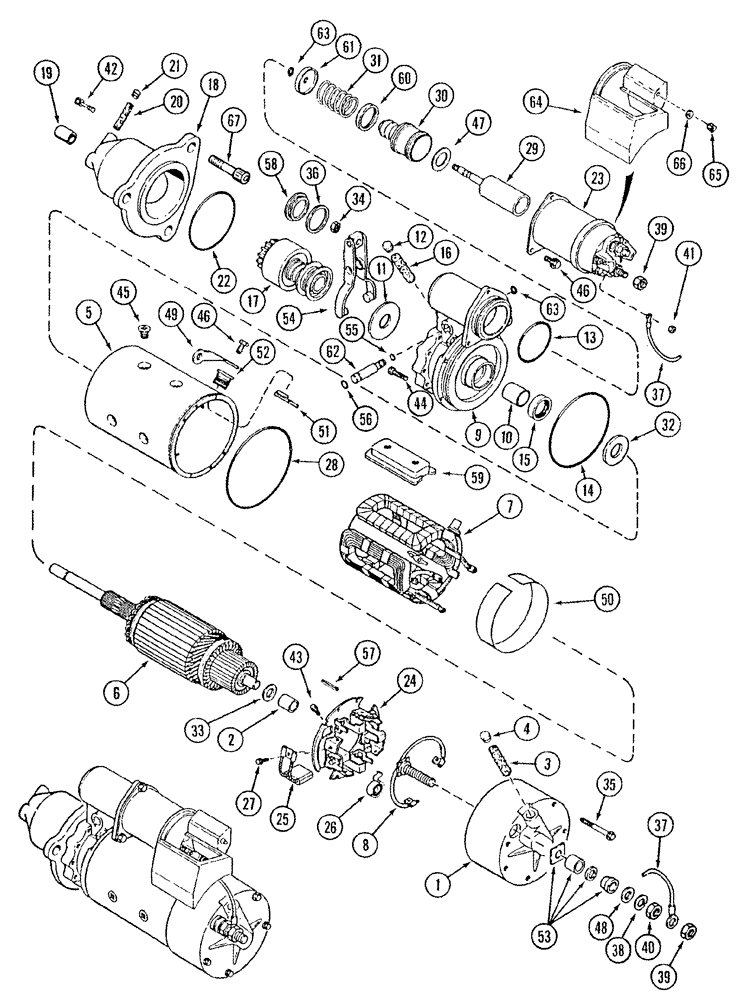

Запчасти Case IH STX375 (04-08) - STARTER ASSY (04) - ELECTRICAL SYSTEMS

140855A3

STARTING MOTOR,12V

consists of: Ref. 1 - 66

1шт.

140855A3R

REMAN-STARTER,12V

Remanufactured Starter 12 volt, 42MT

1шт.

140855A3C

CORE-STARTER,12V

Return Part Number, Starter 12 volt, 42MT

1шт.

396897A1

STARTING MOTOR

Delco Remy, 12 volt, consists of: Ref. 1 - 63

1шт.

87409408

STARTING MOTOR

STARTER

1шт.

87409408R

REMAN-STARTER

Remanufactured, Starter

1шт.

87409408C

CORE-STARTER

Return Part Number

1шт.

1

A187561

COVER

commutator end, consists of: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

BUSHING

1шт.

3

A49769

WICK

1шт.

4

A49573

PLUG

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

6

81772C1

ROTOR

1шт.

7

81771C1

COIL ASSY.

1шт.

8

A49764

TERMINAL CONNECTOR

1шт.

9

A49772

HOUSING

shift lever, consists of: Ref. 10 - 16

1шт.

10

A49765

BUSHING

1шт.

11

NSS

NOT SOLD SEPARAT

WASHER

1шт.

12

A49573

PLUG

1шт.

13

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

14

238-5243

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

Lever housing

1шт.

15

R21582

OIL SEAL

1шт.

16

A49567

WICK

1шт.

17

20-1343T1

DRIVE ASSY.

1шт.

18

A49773

HOUSING

drive end, consists of: Ref. 19 - 22

1шт.

19

A47257

BUSHING

1шт.

20

A47888

WICK

1шт.

21

A47889

PLUG

1шт.

22

A43854

O-RING,3.237" ID x 0.106" THK

1шт.

23

141338A1

SOLENOID

magnetic, with shield

1шт.

24

81769C1

BRUSH HOLDER

HOLDER, BRUSH

1шт.

81774C1

BRUSH SET

Includes: Ref. 25 - 28

1шт.

25

81770C1

BRUSH, COMMUTATOR

BRUSH

4шт.

26

A49575

SPRING

4шт.

27

A47894

SCREW,#8 - 32 x 5/16"

4шт.

28

238-5158

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

1шт.

29

A49757

PLUNGER

1шт.

30

A49589

BOOT

1шт.

31

A41242

SPRING

1шт.

32

A40892

WASHER

13/16 x 1-3/4 x 3/16

1шт.

33

195-2056

WASHER,5/8" x 1" x .065"

9/16 x 1 x 1/16

1шт.

34

131-489

LOCK NUT,5/16"-24, G8

5/16 NF

1шт.

35

142952A1

SCREW,#10 - 32 x 3-1/8"

6шт.

36

A41924

GASKET

1шт.

37

A47895

ELECTRICAL WIRE

WIRE

1шт.

38

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

39

A47890

NUT

1/2

2шт.

40

425-148

JAM NUT,Jam, 1/2"-13, G5

1шт.

41

1546549C1

NUT

No. 10 NF

2шт.

42

1546551C1

BOLT,Torx Hd, 5/16" - 18 x 0.86"

5/8 x 7/8

6шт.

43

A47894

SCREW,#8 - 32 x 5/16"

2шт.

44

A187741

BOLT,Torx Drive, 1/4" - 28 x 1", T Pt

5шт.

45

142955A1

SCREW,Torx Flat Hd, Csk, 3/8" - 24 x 0.735"

3/8 NF x 21/32

8шт.

46

10497770

BOLT,Torx Hd, 1/4" - 20

1/4 NC x 35/64

4шт.

47

A41922

WASHER

1шт.

48

95-81101

WASHER,0.52" ID x 0.88" OD x 0.07" Thk

33/64 x 7/8 x 1/16

1шт.

49

A49779

TERMINAL CONNECTOR

1шт.

50

A49767

RUBBER INSULATOR

field coil

1шт.

51

A49501

RUBBER INSULATOR

inner

1шт.

52

A49500

RUBBER INSULATOR

outer

1шт.

53

A49768

KIT

insulator

1шт.

54

A49775

LEVER

1шт.

55

A47259

O-RING,0.244" ID x 0.391" OD

1шт.

56

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

57

A49753

PIN, SPLIT (COTTER)

PIN, COTTER

1шт.

58

R21587

PLUG

1шт.

59

R15115

SHOE

4шт.

60

A43380

BACK-UP RING

1шт.

61

A43419

SEAT

1шт.

62

A42199

PIN

shift lever

1шт.

63

100-1137

SNAP RING,#37, Ext

2шт.

64

L128826

SHIELD

1шт.

65

225-14210

NUT,#10-32

1шт.

66

492-11010

LOCK WASHER,#10

1шт.

67

480-11032

12 PT SCREW,Flg, 5/8"-11 x 2", Gr 8

2 x 1/16

3шт.
