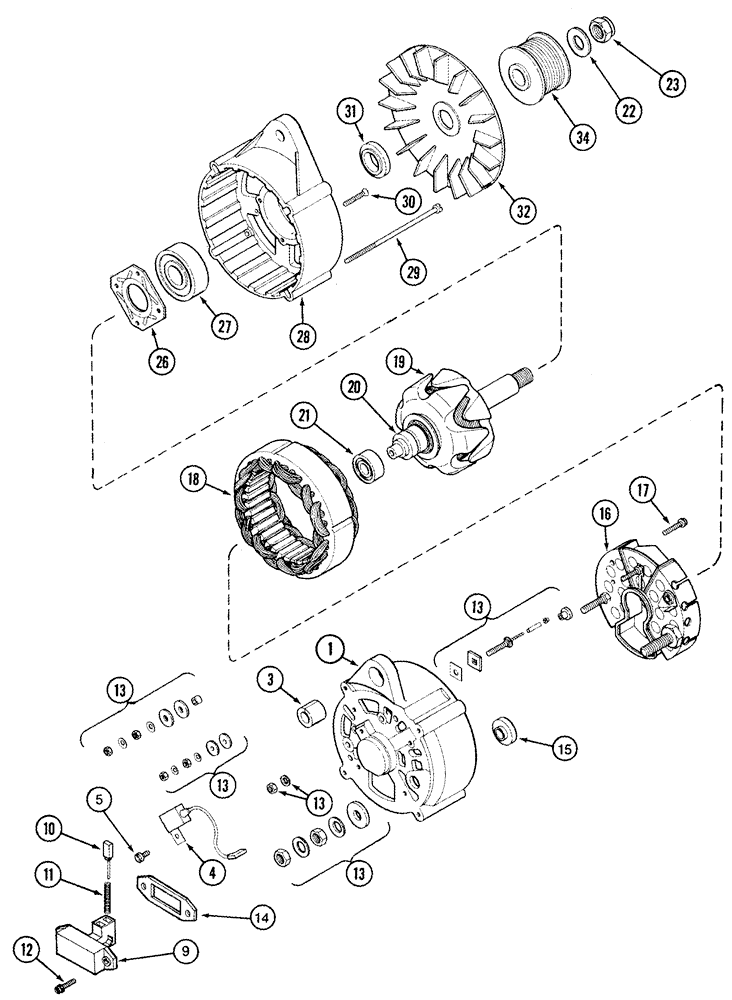

Запчасти Case IH STX375 (04-07) - ALTERNATOR ASSY 135 AMPERE (04) - ELECTRICAL SYSTEMS

125849A1

ALTERNATOR,12V, 135A, W/ Pulley

135 amp, Includes: Ref. 1 - 32

1шт.

125849A1R

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

125849A1C

CORE-ALTERNATOR

Return Part Number

1шт.

87601413

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

87601410

CORE-ALTERNATOR

Return Part Number

1шт.

125849A1GV

ALTERNATOR

Value, 135 Amp

1шт.

1

1964731C1

HOUSING

1шт.

3

1964737C1

BUSHING,13.5mm ID x 20mm OD x 20mm L

1шт.

4

3079389R1

CAPACITOR

1шт.

5

1964969C1

SCREW

1шт.

9

111899A1

REGULATOR

1шт.

10

1964968C1

COMMUTATOR BRUSH

1шт.

11

1964734C1

SPRING

2шт.

12

A187504

SCREW

2шт.

13

1964738C1

REPAIR KIT

1шт.

14

140546A1

GASKET

1шт.

15

140545A1

RING

1шт.

16

1964732C1

RECTIFIER

1шт.

17

A186194

SCREW,M4 x 18mm

2шт.

18

140548A1

STATOR,12V, 135A

1шт.

19

1964728C1

ROTOR

1шт.

20

140543A1

RING

1шт.

21

1964730C1

BALL BEARING,12mm ID x 32mm OD x 14mm W

1шт.

22

495-21063

WASHER,9/16"

5/8 x 1-15/32 x 7/64

1шт.

23

231-24410

LOCK NUT,5/8"-18, GB

1шт.

26

1964727C1

PLATE

1шт.

27

1964726C1

BALL BEARING,22.2mm ID x 56mm OD x 21mm W

1шт.

28

1964725C1

HOUSING

1шт.

29

140549A1

SCREW,Oval Hd, M5 x 132mm

4шт.

30

140541A1

SCREW,Phil Flat Hd, Csk, M4 x 30mm, Cl 8.8

4шт.

31

1964729C1

SPACER

1шт.

32

1964736C1

FAN

1шт.

34

J926858

PULLEY

1шт.
