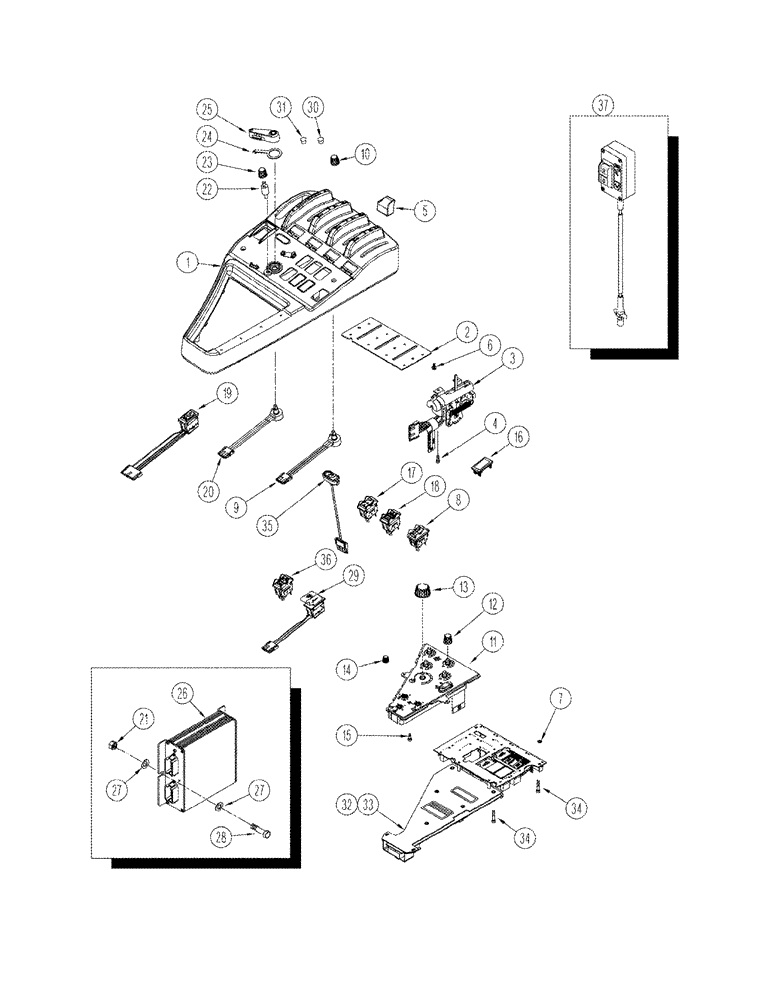

Запчасти Case IH STX375 (04-01) - CONTROLS RIGHT HAND CONSOLE (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

COVER ASSY right-hand console, see Page 9-22

1шт.

302995A1

CONTROL

electronic, consists of: Ref. 2 - 4

1шт.

47372893R

REMAN-JOYSTICK

STX375 (BSN JEE0099501), STX440 Both 4WD TRACTOR, Reman for New PN 302995A1

1шт.

47372893C

CORE-JOYSTICK

Return Number

1шт.

2

230098A1

PLATE

mounting

1шт.

3

302992A2

LEVER

remote auxiliary valve

4шт.

47372893R

REMAN-JOYSTICK

STX375 (BSN JEE0099501), STX440 Both 4WD TRACTOR, Reman for New PN 302992A2

4шт.

47372893C

CORE-JOYSTICK

Return Number

1шт.

4

261-3446

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 3/8"

8шт.

5

220455A3

KNOB

Remote

4шт.

6

864-4020

HEX SOC SCREW,M4 x 20mm, Cl 8.8

4шт.

7

A39888

NUT

3/8-32

1шт.

8

277499A1

SWITCH

fifth auxiliary valve

1шт.

9

256305A2

POTENTIOMETER,1000 Ohm

Flow Control

1шт.

10

276797A1

KNOB

flow control

1шт.

11

339735A1

PANEL

secondary, with three-point hitch

1шт.

11

238290A4

PANEL

secondary, without three-point hitch

1шт.

12

276797A1

KNOB

flow control

4шт.

13

187820A1

KNOB

remote valve timer control

1шт.

14

223433A1

KNOB

electronic draft control, with three-point hitch

2шт.

15

760-14316

SELF-TAP SCREW,Pan Hd, M4.2 x 16

2шт.

16

86000535

PLUG,1.427" x .62", Plastic

2шт.

17

229378A1

SWITCH

differential lock, front

1шт.

18

246809A1

SWITCH

differential lock, rear

1шт.

19

255676A1

SWITCH

hitch position

1шт.

20

256304A2

POTENTIOMETER,1000 Ohm

Three-Point Hitch

1шт.

21

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

22

256303A1

STUD

stop position

1шт.

23

276797A1

KNOB

stop position

1шт.

24

248087A1

LEVER

stop position

1шт.

25

299483A2

CONTROL LEVER

hitch position

1шт.

26

323758A4

CONTROL UNIT

three-point hitch

1шт.

26

323758A4R

REMAN ELECT CONTROL

CONTROL UNIT

1шт.

26

323758A4C

CORE-ELECTRONIC CONT

Return Number

1шт.

27

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

28

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

1шт.

29

345415A2

SWITCH

power takeoff

1шт.

30

353-402

PLUG,Dome, .375" hole, Nylon

No 3-point hitch

1шт.

31

374705A1

PLUG

no-three-point hitch

1шт.

32

323752A5

CONTROL UNIT

1шт.

32

87308354R

REMAN ELECT CONTROL

STX375 (BSN JEE0099501), STX440, Both CASE IH 4WD TRACTOR, Reman for New PN 323752A5

1шт.

32

87308354C

CORE-ELECTRONIC CONT

Return Number

1шт.

33

NSS

NOT SOLD SEPARAT

SOFTWARE, download software for module assy processor from service tool

1шт.

34

864-4010

HEX SOC SCREW,M4 x 10mm, Cl 8.8

6шт.

35

353942A1

SWITCH

scraper, reynolds drawbar application, Auxiliary Auto Mode Switch

1шт.

36

229373A1

SWITCH

slip limit control

1шт.

37

382247A1

SWITCH

remote, three-point hitch

1шт.
