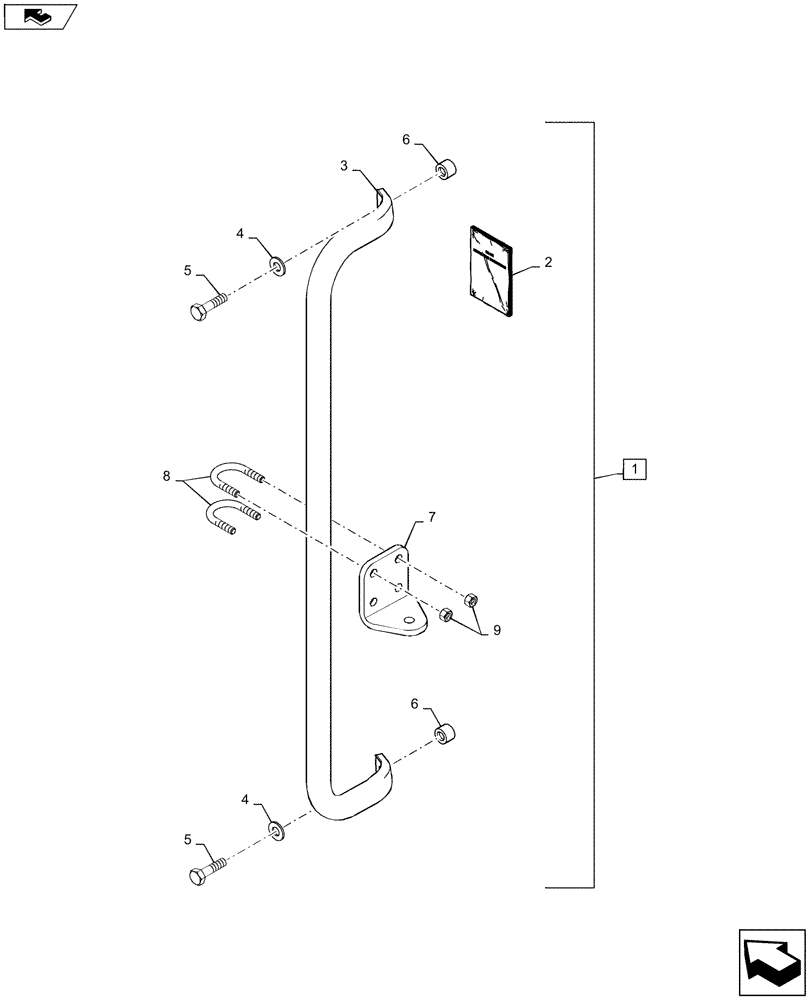

Запчасти Case IH STX375 (88.088.01) - DIA KIT, A-POST MONITOR (88) - ACCESSORIES

1

719515003

KIT

A-Post Monitor, Incl 2 - 9

1шт.

2

87698258

INSTRUCTION

Monitor Mounting Dia

1шт.

3

369275A1

TUBE

Monitor Mounting

1шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

5

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

2шт.

6

371838A1

SPACER,9.5mm ID x 19.1mm OD x 10mm Thk

Mounting

2шт.

7

87530660

BRACKET

Mount Monitor

1шт.

8

87526197

U-BOLT,1/4" - 20 x 1", Round, 1-1/8" W, 2" L

2шт.

9

425-104

NUT,1/4"-20, Cl 5

4шт.
