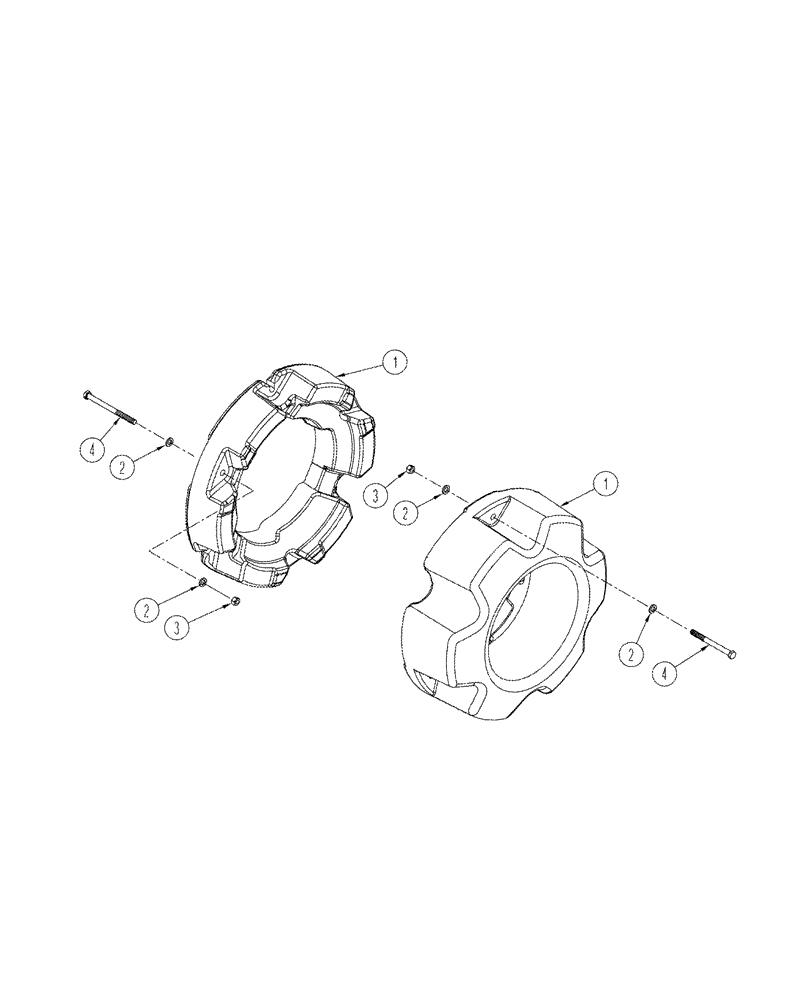

Запчасти Case IH STX375 (09-52) - WEIGHTS WHEEL (09) - CHASSIS/ATTACHMENTS

1

221481A2

WEIGHT

500 lb, order from machinery price list

2шт.

1

199403A2

WEIGHT

1000 lb, order from machinery price list

2шт.

2

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

3

829-1416

NUT,M16, Cl 10

6шт.

4

827-16200

BOLT,Hex, M16 x 2 x 200mm, Cl 10.9

500 lbs. Application

6шт.

4

827-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

1000 lbs. Application

6шт.
