Запчасти Case IH STX375 (09-44) - AIR CONDITIONING SYSTEM (09) - CHASSIS/ATTACHMENTS

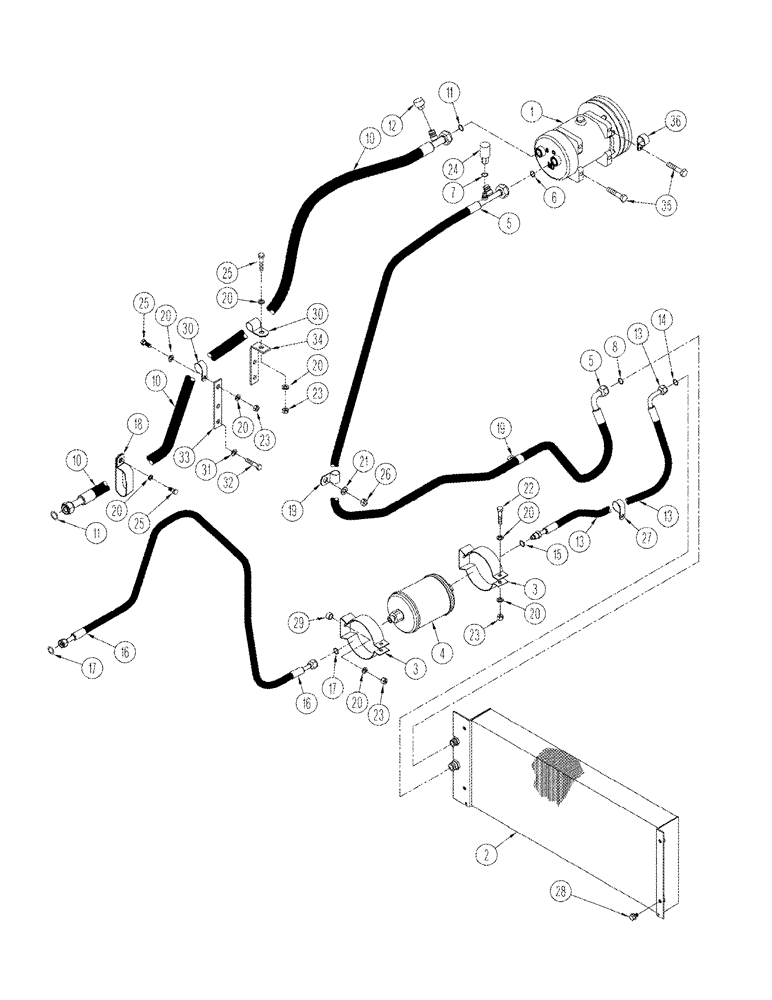

Схема запчастей Case IH STX375 - (09-44) - AIR CONDITIONING SYSTEM (09) - CHASSIS/ATTACHMENTS
33
30
20
18
34
20
13
25
25
19
13
19
1
17
8
15
20
17
20
13
20
28
10
16
10
11
36
21
22
23
23
26
11
3
31
20
30
2
32
4
12
27
14
10
35
20
23
24
6
25
16
29
5
7
3
5
20

Артикул

Название

Примечание

Количество

1

317008A3

AIRCOND. COMPRESSOR

1шт.

1

86993463R

REMAN-A/C COMPRESSOR

Inc.- 4 Cross Bolt Mounting Lugs, w/6 In. OD Pulley For 8 Rib Poly-V Belt

1шт.

1

86993463C

CORE-A/C COMPRESSOR

Return Number

1шт.

2

345226A1

CONDENSER

1шт.

3

70-6589T1

SUPPORT

2шт.

4

295006A1

RECEIVER-DRYER

134a

1шт.

5

308747A4

HOSE ASSY.

2200 mm (87 in.), Includes: Ref. 6 - 9

1шт.

6

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

7

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

8

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16

1шт.

9

122554A1

CAP

1шт.

10

308748A4

HOSE ASSY.

3600 mm (141 in.), Includes: Ref. 11 and 12

1шт.

11

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

2шт.

12

122553A1

CAP

1шт.

13

308749A2

HOSE ASSY.

2100 mm (83 in.), Includes: Ref. 14 and 15

1шт.

14

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16

1шт.

15

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

16

308750A3

A/C HOSE

2200 mm (87 in.), Includes: Ref. 17

1шт.

17

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

2шт.

18

R54363

CLAMP

2шт.

19

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

1шт.

20

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

17шт.

22

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

23

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

7шт.

24

284273A2

SWITCH, A/C HIGH PRE

1шт.

26

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

27

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

2шт.

28

844-8012

BOLT,M8 x 1.25 x 20.1mm, Cl 8.8

4шт.

29

70-6199T1

SPACER

2шт.

30

515-22254

CLAMP,1", Insul, 5/16" Bolt

2шт.

31

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

32

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

4шт.

33

332387A2

BRACKET

1шт.

34

366835A2

BRACKET

1шт.

35

827-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

4шт.

36

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

25

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

21

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

Выбрано товаров: 38
