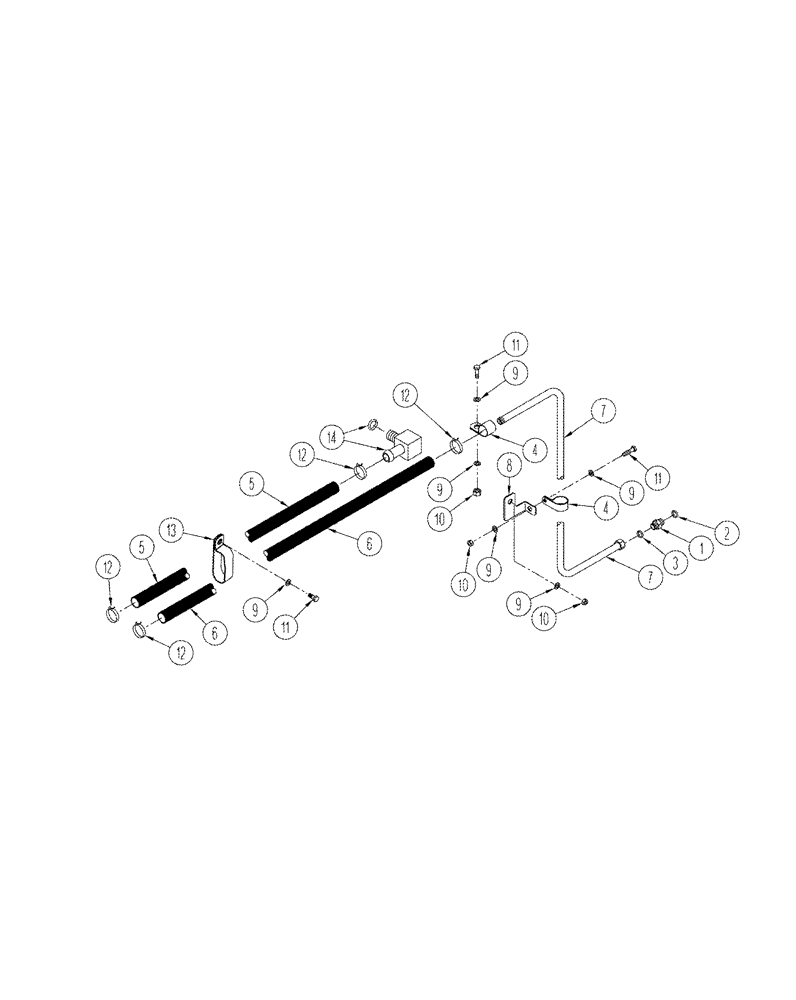

Запчасти Case IH STX375 (09-43) - HEATER HOSES (09) - CHASSIS/ATTACHMENTS

1

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 2, 3

1шт.

2

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

4

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

2шт.

5

31-1292

supply

1шт.

6

31-1293

HOSE,0.63" ID x 55.00"

return, 5/8 ID x 57 in.

1шт.

7

381977A1

HEATER TUBE

1шт.

8

381978A1

BRACKET

1шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.

11

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

3шт.

12

214-1408

HOSE CLAMP,11.2mm - 19.8mm

4шт.

13

R54363

CLAMP

1шт.

14

293824A1

FITTING

with O-ring

1шт.
