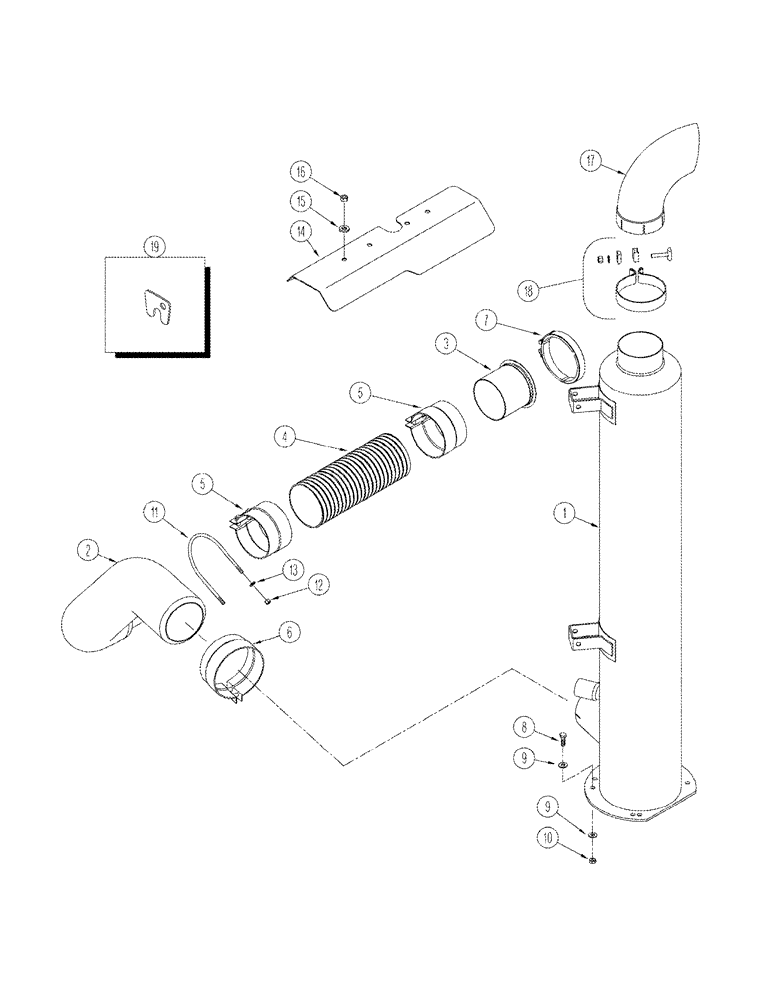

Запчасти Case IH STX375 (03-02) - EXHAUST SYSTEM QUADTRAC TRACTOR (03) - FUEL SYSTEM

1

357685A2

MUFFLER

1шт.

1

369942A1

MUFFLER

spark arresting

1шт.

2

358244A1

TUBE,127 mm ID, 152.4 mm OD, 616.3, 245.1 mm Length

double wall

1шт.

3

357683A1

TUBE,127 mm OD, 112 mm Length

1шт.

4

364158A1

TUBE

flexible

1шт.

5

90-8320T1

MOUNTING CLIP

2шт.

6

357686A1

ASSEMBLY

6

1шт.

7

31-1316

MOUNTING CLIP

1шт.

8

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

9

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

6шт.

10

832-46410

NUT,M10 x 1.5, Cl 8

2шт.

11

44-13T1

U-BOLT,5/16" - 18 x 7.29", Class 8.8

BOLT "U"

1шт.

12

231-1445

NUT,5/16"-18, GB

2шт.

13

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

2шт.

14

360736A1

SHIELD

1шт.

15

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm

4шт.

16

829-1412

NUT,M12, Cl 10.9

4шт.

17

364095A2

ELBOW

Includes: Ref. 18

1шт.

18

357875A1

CLAMP,134mm

1шт.

19

404824A1

SHIM

muffler

1шт.

394847A1

KIT

spark arresting, Includes: Ref. 1

1шт.
