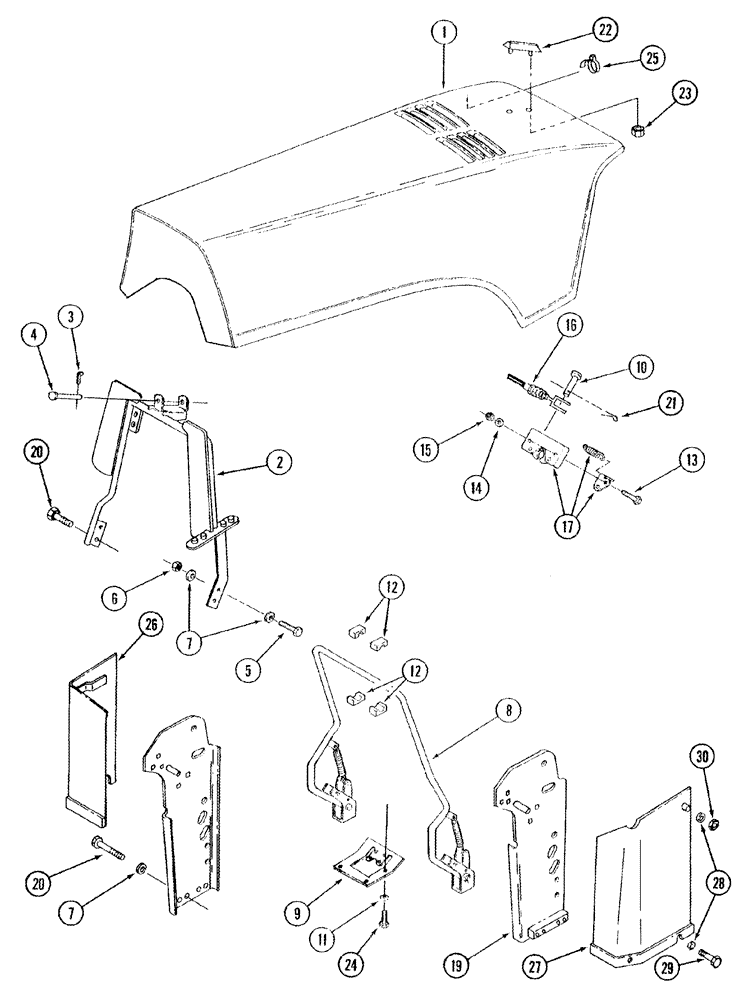

Запчасти Case IH STX375 (09-40) - HOOD AND SUPPORT (09) - CHASSIS/ATTACHMENTS

1

323892A3

HOOD

1шт.

2

326444A6

SUPPORT

1шт.

3

733-4032

COTTER PIN,M4 x 32

1шт.

4

728-16100

CLEVIS PIN,M16 x 100

11/16 x 100

1шт.

5

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

6

829-1412

NUT,M12, Cl 10.9

2шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

12шт.

8

339543A2

ARM

lift, see Figure 09-42

1шт.

9

352811A2

PLATE

hood latch

1шт.

10

728-620

CLEVIS PIN,M6 x 20

6 x 20 mm

1шт.

11

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

12

314842A3

BEARING

4шт.

13

827-6040

BOLT,Hex, M6 x 40mm, Cl 10.9

4шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

15

832-10406

NUT,M6 x 1, Cl 8

4шт.

16

308453A3

CABLE

1шт.

17

318159A1

LATCH

1шт.

18

339534A3

SUPPORT

radiator, left-hand

1шт.

19

339537A3

SUPPORT

radiator, right-hand

1шт.

20

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

10шт.

21

733-1610

COTTER PIN,M1.6 x 10

1шт.

22

349565A1

GUIDE

hood sight

1шт.

23

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

24

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

4шт.

25

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.

26

392428A1

COVER

fan, left-hand

1шт.

27

392434A1

COVER

fan, right-hand

1шт.

28

399576A1

WASHER

6шт.

30

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

29

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.
