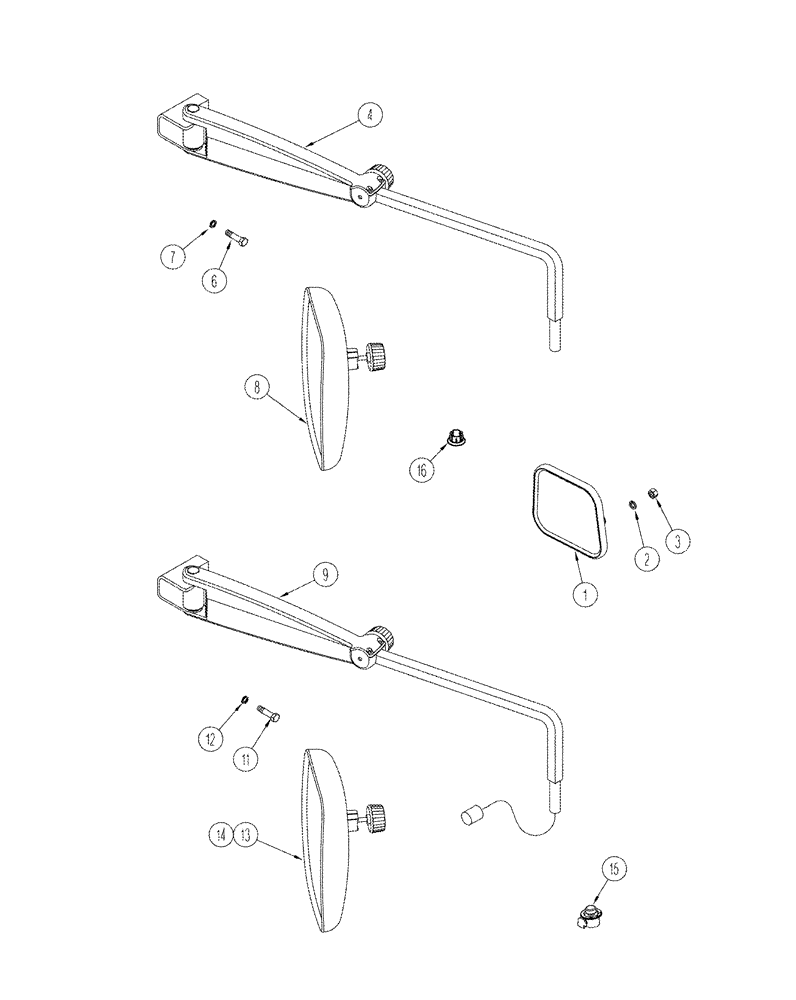

Запчасти Case IH STX375 (09-28) - MIRRORS (09) - CHASSIS/ATTACHMENTS

1

A177462

MIRROR

interior, Includes: Ref. 2 and 3

1шт.

2

493-41026

LOCK WASHER,Ext Tooth, 1/4"

1шт.

3

19-5565

LOCK NUT,1/4"-28, GB

1шт.

4

313139A1

ARM

right-hand, manual

1шт.

5

313140A1

ARM

left-hand, manual, not illustrated

1шт.

6

514-865

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

7

896-19012

WASHER,M12 x 24.5 x 3, HT

13.5 x 24 x 3 mm

4шт.

8

365414A1

MIRROR

manual

2шт.

9

313141A1

ARM

right-hand, electric

1шт.

10

313142A1

ARM

left-hand, electric, not illustrated

1шт.

11

514-865

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

12

896-19012

WASHER,M12 x 24.5 x 3, HT

13.5 x 24 x 3 mm

4шт.

13

360580A1

MIRROR,238mm x 328mm

electric, Includes: Ref. 14

2шт.

14

324437A1

REPLACEMENT MIRROR

1шт.

15

280627A1

SWITCH, MIRROR ADJUS

1шт.

16

280628A1

PLUG

mirror switch, manual mirror

1шт.
