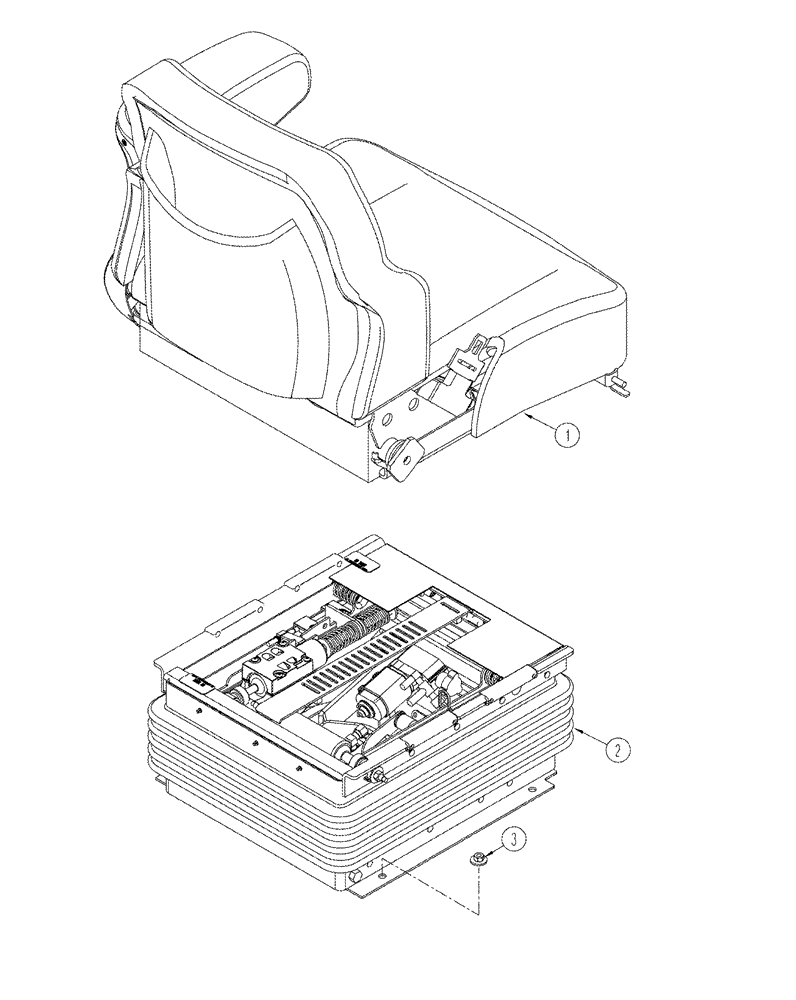

Запчасти Case IH STX375 (09-25) - SEAT (09) - CHASSIS/ATTACHMENTS

358202A2

SEAT ASSY.

cloth, without heat, standard cab, Includes: Ref. 1 and 2

1шт.

397519A1

SEAT ASSY.

cloth, heated, deluxe cab, Includes: Ref. 1 and 2

1шт.

358203A2

SEAT ASSY.

leather, heated, luxury cab, Includes: Ref. 1 and 2

1шт.

1

360319A2

CUSHION ASSY.

cloth, without heat, standard cab, see Page(s) 9-63 - 9-67

1шт.

1

397525A1

CUSHION ASSY.

cloth, heated, deluxe cab, see Figure 09-26

1шт.

1

360321A2

CUSHION ASSY.

leather, heated, luxury cab, see Figure 09-26

1шт.

2

374353A1

PACKAGE,SERVICE

see Page(s) 9-69

1шт.

3

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.
