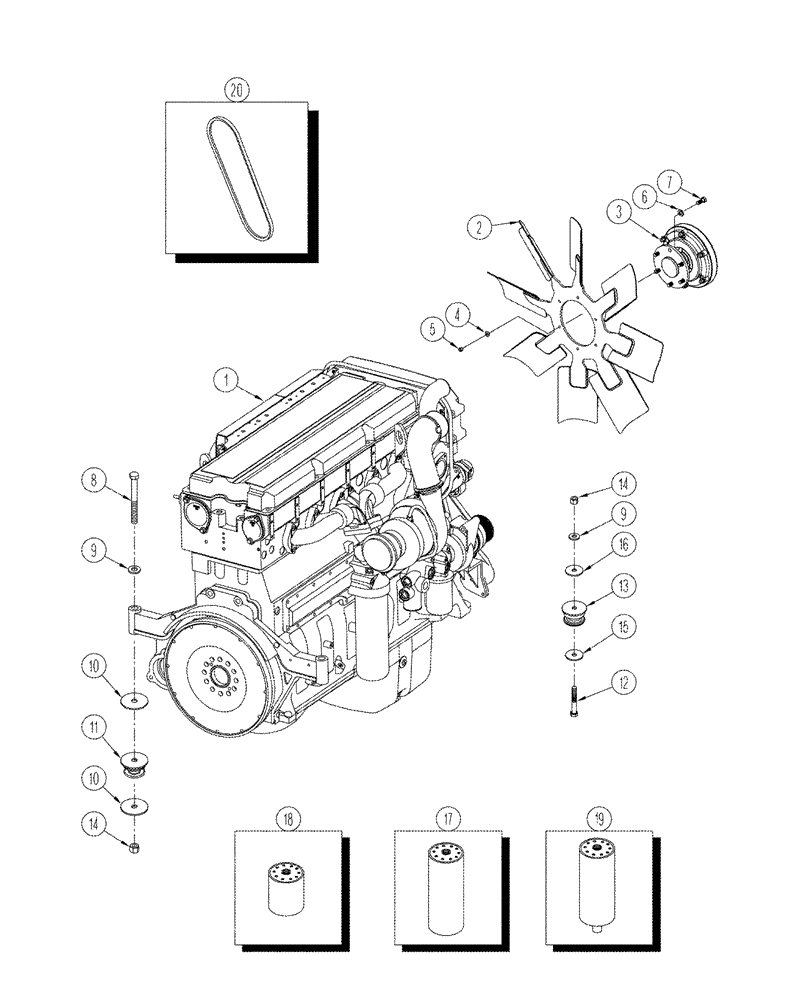

Запчасти Case IH STX375 (02-09) - ENGINE MOUNTING AND ATTACHING PARTS (02) - ENGINE

1

NSS

NOT SOLD SEPARAT

ENGINE, STX 375

1шт.

See Your Cummins Engine Dealer for Service.

1шт.

1

NSS

NOT SOLD SEPARAT

ENGINE, STX 440

1шт.

See Your Cummins Engine Dealer for Service.

1шт.

2

367202A1

FAN

1шт.

3

384866A1

DRIVE

fan

1шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

7

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

6шт.

8

827-16200

BOLT,Hex, M16 x 2 x 200mm, Cl 10.9

2шт.

9

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

2шт.

10

361812A1

WASHER

23/32 x 3-3/4 x 3/16

2шт.

11

382235A1

RUBBER MOUNTING

2шт.

12

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

2шт.

13

24-231

RUBBER MOUNTING

2шт.

14

832-10416

NUT,M16 x 2, Cl 8

2шт.

15

19-408

WASHER

21/32 x 2-1/2 x 7/32

2шт.

16

51-128

WASHER

21/32 x 3-1/2 x 3/16

2шт.

17

324617A1

ENGINE OIL FILTER

1шт.

18

324618A1

FILTER

1шт.

19

324619A1

SEPARATOR

1шт.

20

325289A1

V-BELT,1013.50 mm L, 12 Ribs

Water Pump

1шт.

20

325290A1

V-BELT

Single alternator

1шт.

4

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.
