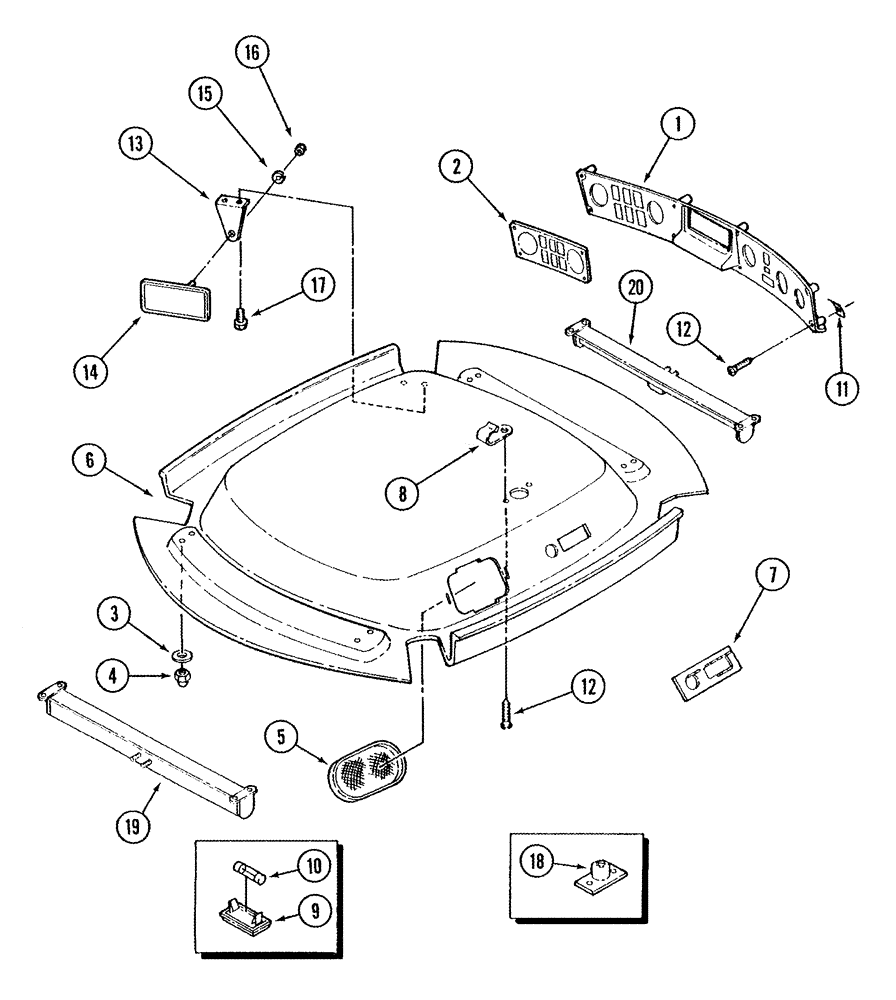

Запчасти Case IH STX375 (09-18) - CAB HEADLINER AND CONTROL PANEL STANDARD CAB (09) - CHASSIS/ATTACHMENTS

1

358332A1

PANEL

control

1шт.

2

308645A3

DECAL

light panel, see Figure 09-59

1шт.

3

895-30104

WASHER,M6 x 12 x 1.6

9 x 20 x 1.6 mm

8шт.

4

834-502

CROWN NUT,Crown, M6, Cl8

8шт.

5

358683A1

GRILLE

speaker

2шт.

359617A2

PANEL

Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

HEADLINER

1шт.

7

305485A2

RETAINER

domelight

1шт.

8

302862A1

SPRING NUT,4.2 Thread

2шт.

9

1983391C1

LAMP,12V, 10W

dome, Includes: Ref. 10

1шт.

10

E35556

BULB,12V, 10W

1шт.

11

177269A1

SPRING NUT,M4.2

8шт.

12

1270741C1

SELF-TAP SCREW,Cross Pan Hd, #8 x 1"

10шт.

13

64-086T3

BRACKET

mirror

1шт.

14

A177462

MIRROR

rearview, Includes: Ref. 15 and 16

1шт.

15

493-41026

LOCK WASHER,Ext Tooth, 1/4"

1шт.

16

19-5565

LOCK NUT,1/4"-28, GB

1шт.

17

555-12

BOLT,Hvy Hex, M6 x 30mm, Cl 10.9

2шт.

18

83882C91

LAMP

courtesy

1шт.

19

389093A1

VISOR, SUN

rear

1шт.

20

246324A1

VISOR, SUN

front

1шт.
