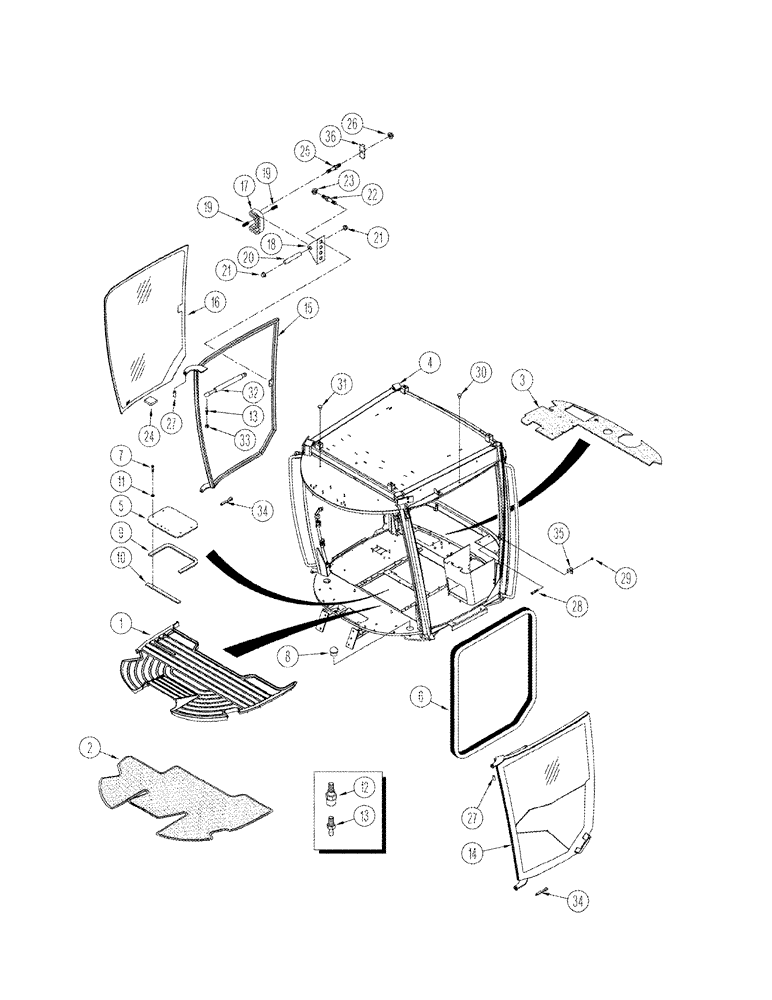

Запчасти Case IH STX375 (09-14) - CAB FLOORMATS AND DOORS (09) - CHASSIS/ATTACHMENTS

1

259587A4

FLOOR MAT

rubber, standard cab, deluxe cab

1шт.

2

358342A1

CARPET

luxury cab

1шт.

3

302840A4

FOAM INSULATION

floor, rear

1шт.

4

398296A1

CAB

1шт.

5

224964A2

PLATE

if used

1шт.

6

390360A1

SEAL

cut from 388449A1

2шт.

7

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

8шт.

8

353-593

PLUG

2-1/2 ID

2шт.

9

281113A1

SEAL

cut from 187874C1, if used

2шт.

10

281114A1

SEAL

cut from 187874C1, if used

2шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

12

390837A1

STUD

2шт.

13

3234063R1

BALL STUD,M10 x 1.5

2шт.

14

388870A3

DOOR ASSY.

See Figure 09-15

1шт.

389175A2

WINDOW ASSY

Includes: Ref. 13, 15, 16, 22 - 24, 32, 33

1шт.

15

389176A1

WINDOW FRAME

right-hand

1шт.

16

181242A3

WINDOW

1шт.

317171A1

LEVER

window, right-hand, Includes: Ref. 17 - 21

1шт.

17

NSS

NOT SOLD SEPARAT

LEVER

1шт.

18

NSS

NOT SOLD SEPARAT

BRACKET

1шт.

19

NSS

NOT SOLD SEPARAT

SPRING

2шт.

20

NSS

NOT SOLD SEPARAT

PIN pivot

1шт.

21

NSS

NOT SOLD SEPARAT

NUT special, M8

2шт.

22

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

23

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

2шт.

24

97268C1

SPACER

10шт.

25

403574A1

SPLIT PIN/SAFETY PIN

1шт.

26

832-4748

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

27

388764A1

BUSHING

4шт.

28

R51754

STRIKER

1шт.

29

231-5347

FLANGE NUT,7/16"-14, G5

7/16; 8

1шт.

30

353-406

PLUG,Dome, .625" hole, Nylon

5/8

1шт.

31

64-146

PLUG

1/2

11шт.

32

356845A1

GAS STRUT,383mm Extended, 253mm Compressed

gas spring

1шт.

33

403749A1

LOCK NUT,M10 x 1.5, Class 8.8

M10; 10.9

1шт.

34

733-3220

COTTER PIN,M3.2 x 20

2шт.

35

369719A1

BRACKET

door, left-hand

1шт.

36

371554A1

BRACKET

door, right-hand

1шт.
