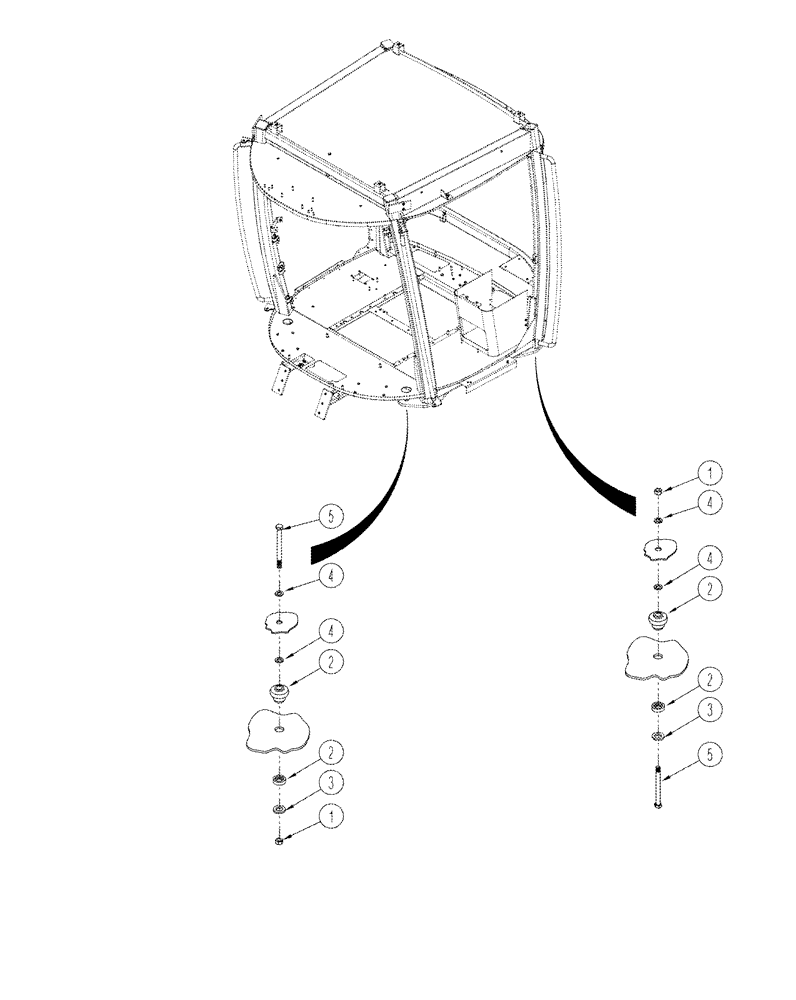

Запчасти Case IH STX375 (09-11) - CAB MOUNTING (09) - CHASSIS/ATTACHMENTS

1

832-10424

NUT,M24 x 3, Cl 8

4шт.

2

377678A1

RUBBER MOUNTING

isolator

4шт.

3

371043A1

WASHER

steel

4шт.

4

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

(26 ID x 44 x 5 mm)

8шт.

5

827-24120

BOLT,Hex, M24 x 3 x 120mm, Cl 10.9

M24 x 120; 10.9

4шт.
