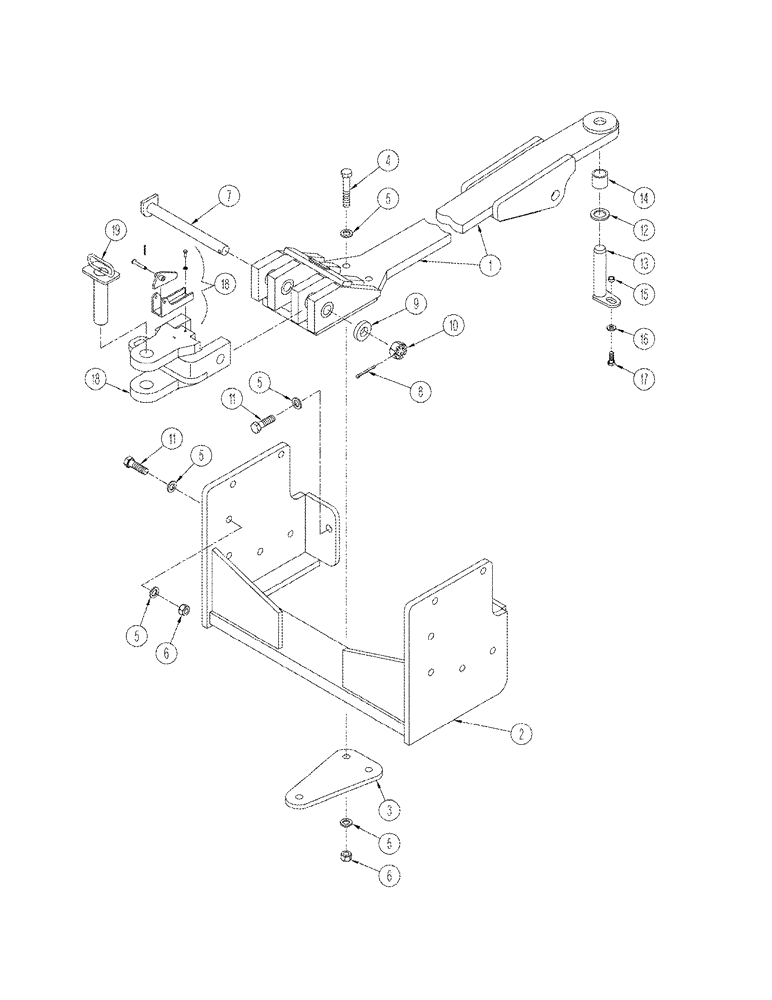

Запчасти Case IH STX375 (09-10) - DRAWBAR REYNOLDS (09) - CHASSIS/ATTACHMENTS

1

339581A3

DRAWBAR

1шт.

2

377546A1

DRAWBAR

1шт.

3

336132A1

PLATE

1шт.

4

827-24140

BOLT,Hex, M24 x 3 x 140mm, Cl 10.9

3шт.

5

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

(26 ID x 44 x 5 mm)

32шт.

6

829-1424

NUT,M24, Cl 10

15шт.

336133A1

HITCH PIN

Includes: Ref. 7 - 10

1шт.

7

NSS

NOT SOLD SEPARAT

PIN

1шт.

8

NSS

NOT SOLD SEPARAT

PIN cotter

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER

1шт.

10

NSS

NOT SOLD SEPARAT

NUT slotted

1шт.

11

827-24080

BOLT,Hex, M24 x 3 x 80mm, Cl 10.9

14шт.

12

1-4088

WASHER,45mm ID x 69.9mm OD x 6.35mm Thk

1-3/4 x 2-3/4 x 1/4

1шт.

13

195941A1

PIN,44.37mm OD x 205mm L

1шт.

14

381065A1

SPACER

1шт.

15

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

1шт.

16

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

1шт.

17

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

1шт.

365945A1

KIT

reverse, Includes: Ref. 18 and 19

1шт.

18

390467A1

KIT

1шт.

19

259522A1

Purchase assy and components directly from Reynolds, McAllen, Texas.

1шт.
