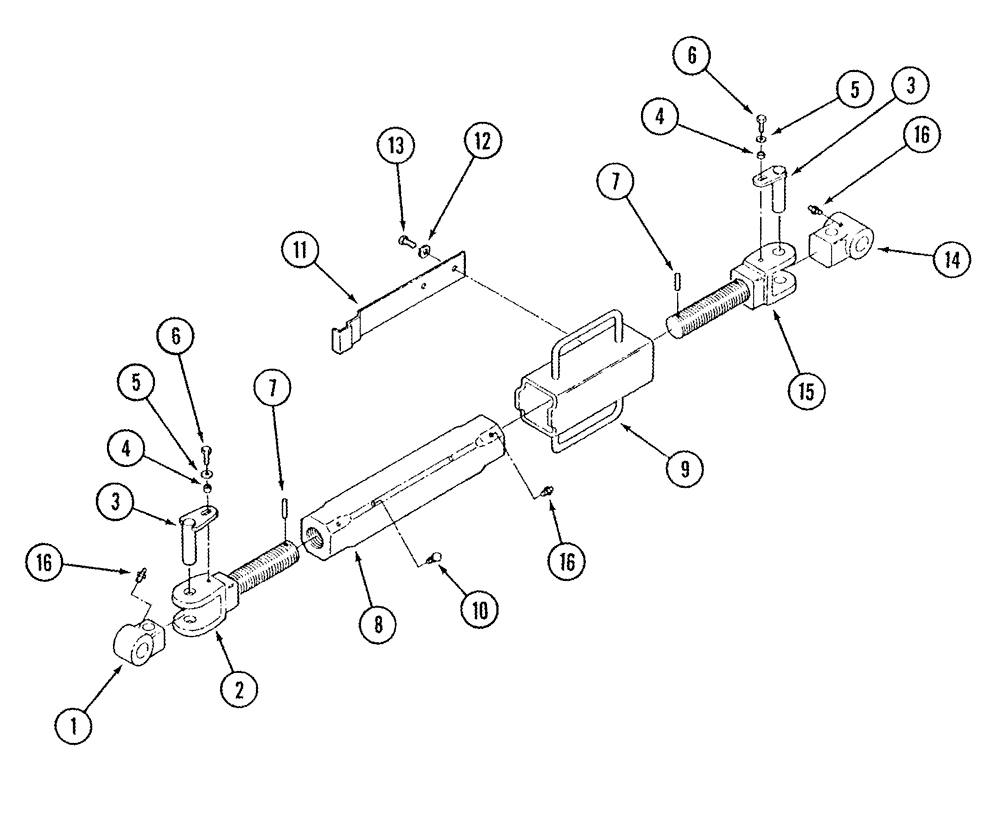

Запчасти Case IH STX375 (09-04) - LINK ASSY UPPER (09) - CHASSIS/ATTACHMENTS

253908A2

LINK

Includes: Ref. 1 - 16

1шт.

1

258946A1

KNUCKLE

ASSY.

1шт.

2

279050A1

LINK

U-joint

1шт.

3

70-6013T2

PIN

2шт.

4

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

2шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

6

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

7

838-3655

PIN

M6 x 55

2шт.

8

258550A1

TURNBUCKLE

1шт.

9

283052A2

LOCK

1шт.

10

295004A1

PLUG

4шт.

11

282523A1

LOCK

anti-rotation

1шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

13

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

2шт.

14

253894A1

KNUCKLE

ASSY.

1шт.

15

279051A1

LINKAGE

U-joint

1шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

6шт.
