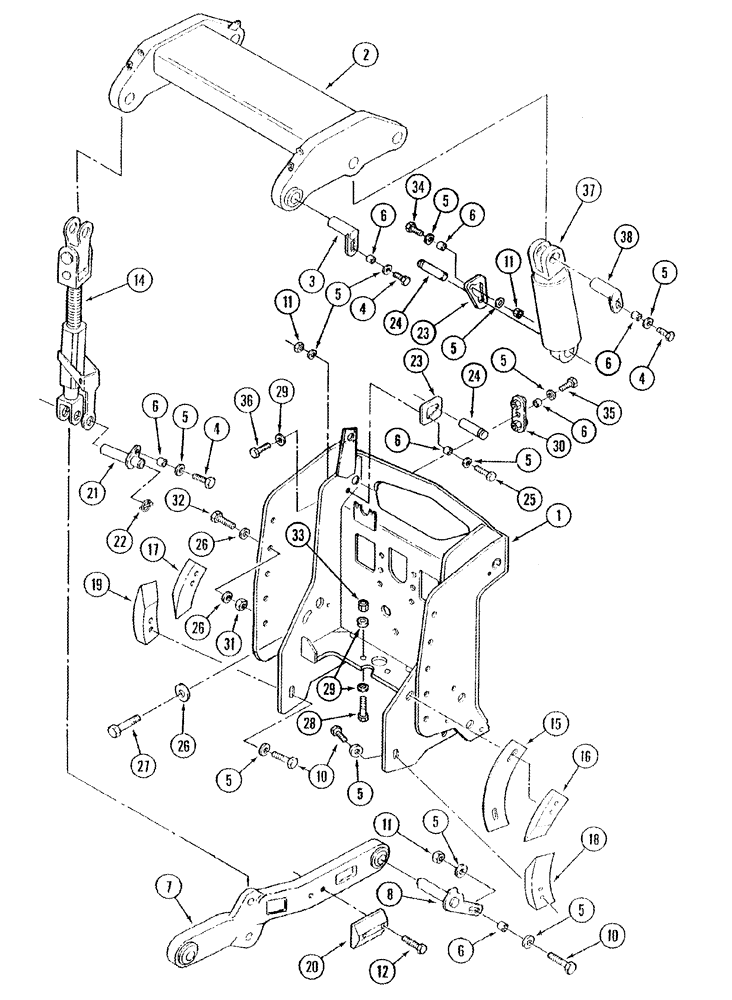

Запчасти Case IH STX375 (09-01) - HITCH THREE POINT HITCH (09) - CHASSIS/ATTACHMENTS

347185A1

MOUNTING PARTS

Includes: Ref. 1 - 25

1шт.

1

363385A4

MOUNTING PARTS

1шт.

2

347193A1

ROCKSHAFT

see Figure 09-02

1шт.

3

70-6013T2

PIN

2шт.

4

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

6шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

28шт.

6

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

14шт.

7

344962A2

LIFT ARM

draft

2шт.

8

348061A1

PIN

left-hand

1шт.

9

347641A1

PIN

right-hand, not illustrated

1шт.

10

627-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9, Full Thd

10шт.

11

829-1416

NUT,M16, Cl 10

6шт.

12

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

4шт.

14

NSS

NOT SOLD SEPARAT

LINK ASSY lift, right-hand, see Page(s) 9-13, order components

1шт.

15

70-6387T1

LARGE PLATE

PLATE, LARGE

2шт.

16

279611A1

BLOCK ASSY.

1шт.

17

279608A1

BLOCK ASSY.

1шт.

18

279610A1

BLOCK ASSY.

1шт.

19

279607A1

BLOCK ASSY.

1шт.

20

279613A1

BLOCK ASSY.

2шт.

21

322096A1

PIN,31.85mm OD x 132mm L

2шт.

22

A30338

PIN

2шт.

23

326573A3

LARGE PLATE

PLATE, LARGE

4шт.

24

321188A2

PIN,50.9mm OD x 215mm L

4шт.

25

827-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

2шт.

26

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

(26 ID x 44 x 5 mm)

28шт.

27

827-24110

BOLT,Hex, M24 x 3 x 110mm, Cl 10.9

4шт.

28

827-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

2шт.

29

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

4шт.

30

259389A1

PLATE

2шт.

31

829-1424

NUT,M24, Cl 10

12шт.

32

627-24060

BOLT,Hex, M24 x 3 x 60mm, Cl 10.9, Full Thd

12шт.

33

829-1420

NUT,M20, Cl 10

2шт.

34

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

2шт.

35

627-16025

BOLT,Hex, M16 x 2 x 25mm, Cl 10.9, Full Thd

2шт.

36

827-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

4шт.

37

349116A1

CYLINDER

lift, see Figure 08-50

2шт.

38

70-5973T2

PIN

2шт.
