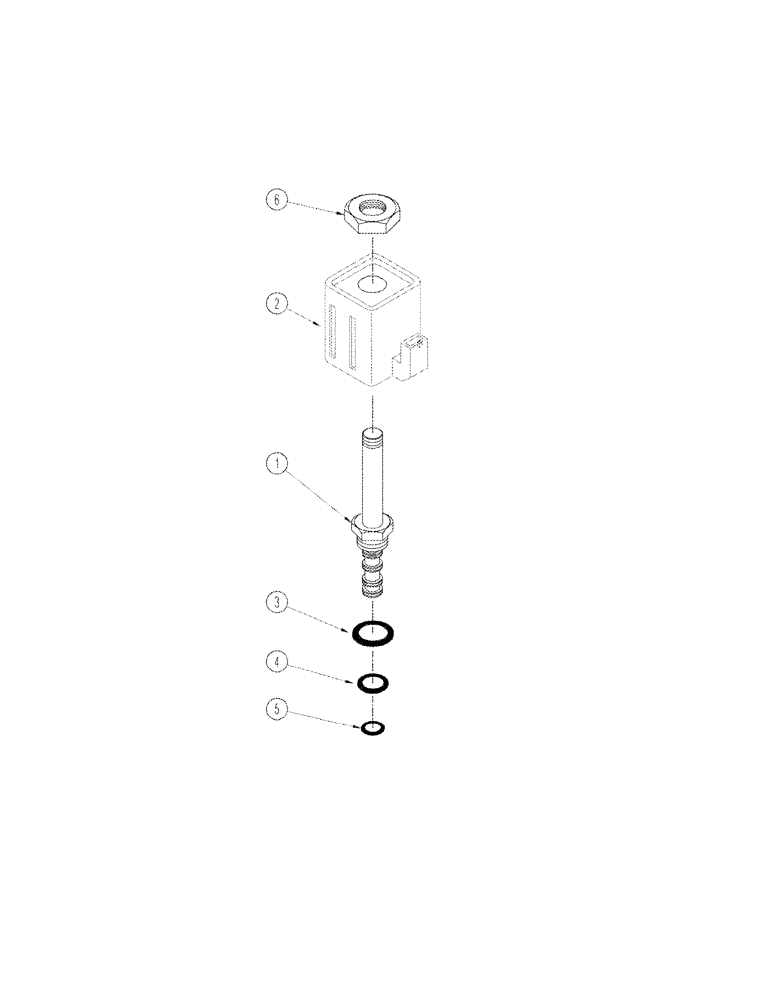

Запчасти Case IH STX375 (08-51) - VALVE ASSY DIFFERENTIAL LOCK (08) - HYDRAULICS

384977A1

VALVE

differential lock, consists of: Ref. 1 - 6

1шт.

1

384976A1

CARTRIDGE

1шт.

2

353941A1

COIL

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

5

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

6

NSS

NOT SOLD SEPARAT

NUT

1шт.
