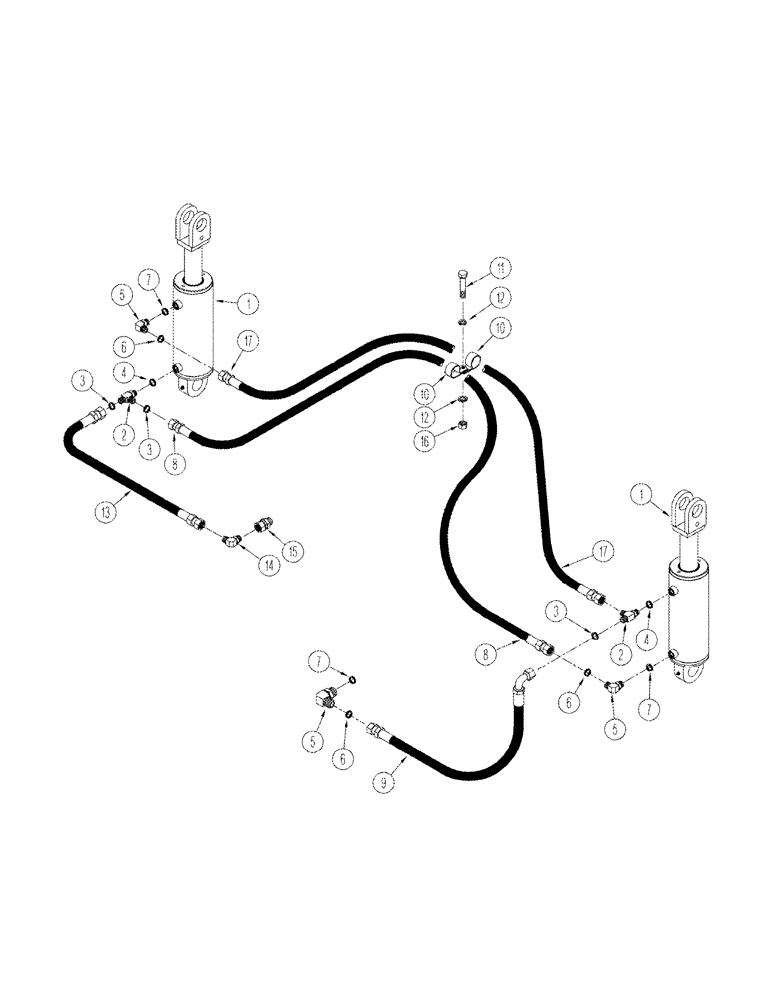

Запчасти Case IH STX375 (08-48) - THREE POINT HITCH HYDRAULICS MANUAL HITCH (08) - HYDRAULICS

1

349116A1

CYLINDER

see Figure 08-50

2шт.

2

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Includes: Ref. 3 and 4

2шт.

3

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

4

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

5

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. Ref. 6 and 7

3шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

7

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

3шт.

8

363126A1

HOSE ASSY.

pressure, 1645 mm (65 in.)

1шт.

9

359756A1

HOSE ASSY.

320 mm (12-1/2 in.)

1шт.

10

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

P-type

4шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

13

363127A1

HOSE ASSY.

670 mm (26 in.)

1шт.

14

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

7/8 fl x 1/2 PT

1шт.

15

1-7141

FITTING

1шт.

16

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

17

394732A1

HOSE ASSY.

return, 1410 mm (55-1/2 in.)

1шт.

11

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.
