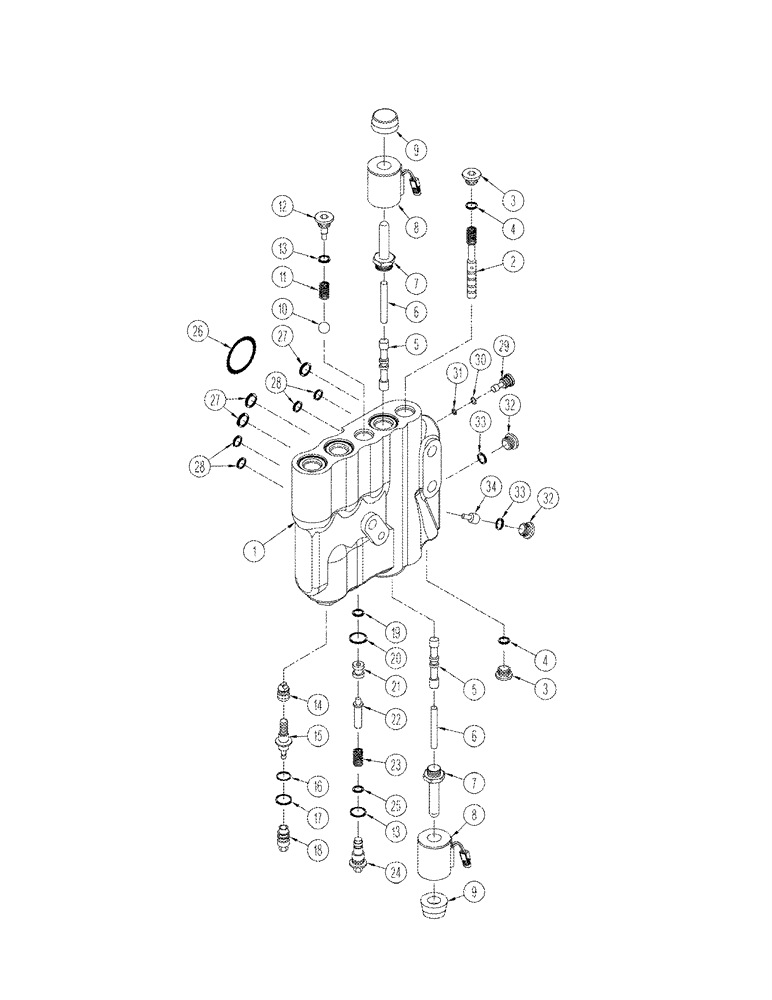

Запчасти Case IH STX375 (08-44) - HITCH VALVE ASSEMBLY ELECTRONIC CONTROLLED (08) - HYDRAULICS

319131A1

VALVE

Hitch, Incl 1 - 34

1шт.

319131A2

VALVE

Hitch, Incl 1 - 34

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

3

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 4

2шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

5

188104A1

SPOOL

pilot

2шт.

6

188116A1

PIN,3.25mm OD x 39.93mm L

2шт.

7

188117A1

CARTRIDGE,72.25mm OAL

override

2шт.

8

NSS

NOT SOLD SEPARAT

COIL

2шт.

9

188106A1

NUT

2шт.

10

511-10200

BALL,20mm Dia

Gr 28

1шт.

11

188114A1

SPRING

compression

1шт.

12

373760A1

PLUG

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

14

363246A1

POPPET

1шт.

15

NSS

NOT SOLD SEPARAT

STEM servo

1шт.

16

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

1шт.

17

238-5023

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

1шт.

18

188111A1

PLUG,1-1/16" - 18

Meter Out

1шт.

19

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

20

373767A1

RING,Split, 83.06mm ID

1шт.

21

373766A1

SEAT

1шт.

22

373765A1

POPPET

1шт.

23

373764A1

CHECK VALVE

compression

1шт.

24

373762A1

PLUG

1шт.

25

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

26

238-5142

O-RING,0.103" Thk x 2.362" ID, -142, Cl 5, 75 Duro

1шт.

27

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

3шт.

28

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

5шт.

29

373761A1

PLUG

1шт.

30

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

31

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

2шт.

32

86529630

PLUG,Hex Soc, 3/8"-24 ORB

2шт.

33

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

2шт.

34

373758A1

VALVE

load sense

1шт.
