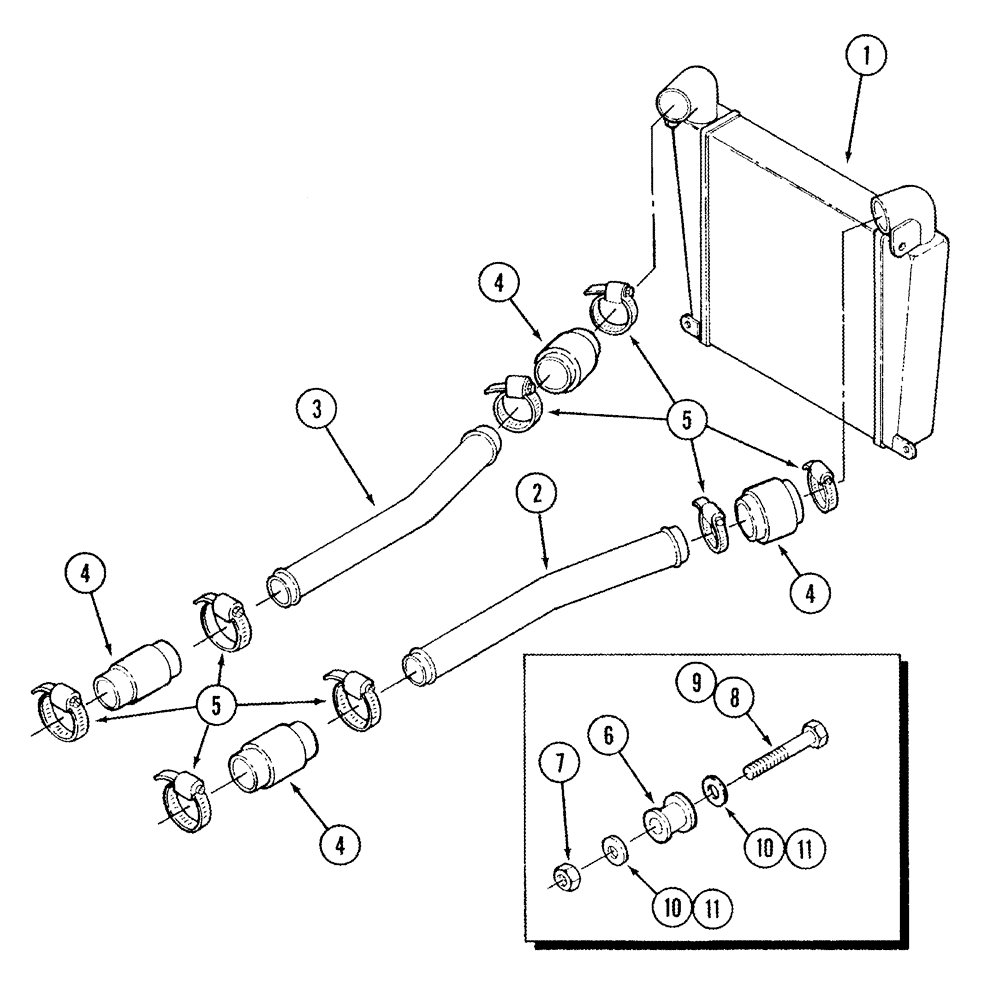

Запчасти Case IH STX375 (02-06) - AIR COOLER (02) - ENGINE

1

294026A1

COOLER

1шт.

2

324205A2

TUBE

1шт.

3

324349A2

TUBE,101.6 mm OD, 899, 155 mm Length

1шт.

4

251400A1

BELLOWS

4шт.

5

L124635

HOSE CLAMP

8шт.

6

60-6650T1

RUBBER BUSHING

4шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

8

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

Upper cooler mount

2шт.

9

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

Lower cooler mount

2шт.

10

496-41041

WASHER,13/32" x 1 1/8" x .134"

4шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.
