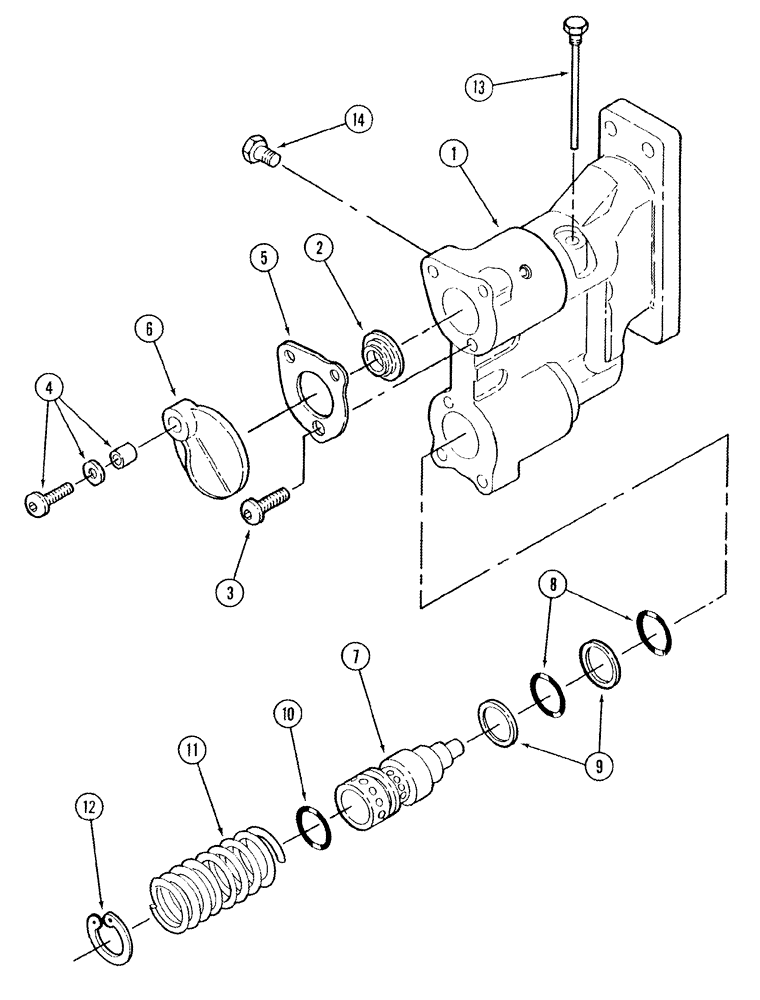

Запчасти Case IH STX375 (08-41) - COUPLER VALVE ASSY (08) - HYDRAULICS

292322A1

COUPLING, BREAK AWAY

Incl 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

2

240969A1

SEAL,22.9mm ID x 46.2mm OD x 8.07mm Thk

2шт.

3

240970A2

HEX SOC SCREW,BTN HD, M6 x 1 x 10mm

4шт.

4

240973A2

CAPTIVE WASHER SCREW,Hex Flng, M16 x 1 x 25mm

With Sleeve and Washer

2шт.

5

292326A1

PLATE

Cover

2шт.

6

240974A2

DOOR COVER

Dust

2шт.

7

84262367

CARTRIDGE

2шт.

345193A1

SEAL KIT

Coupler, External, Incl 8 - 10

1шт.

87428689

SEAL KIT

Coupler, Internal (Not Shown)

1шт.

8

238-5027

O-RING,0.07" Thk x 1.301" ID, -27, Cl 5, 75 Duro

4шт.

9

93332C1

SEAL ASSY.

4шт.

10

345192A1

SEAL,0.139" Thk x 0.796" ID, -211, 88 Duro

2шт.

11

93330C1

VALVE SPRING

2шт.

12

100-28162

SNAP RING,1.625", Int, #162

2шт.

13

367755A1

RETAINER

2шт.

14

217-432

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.
