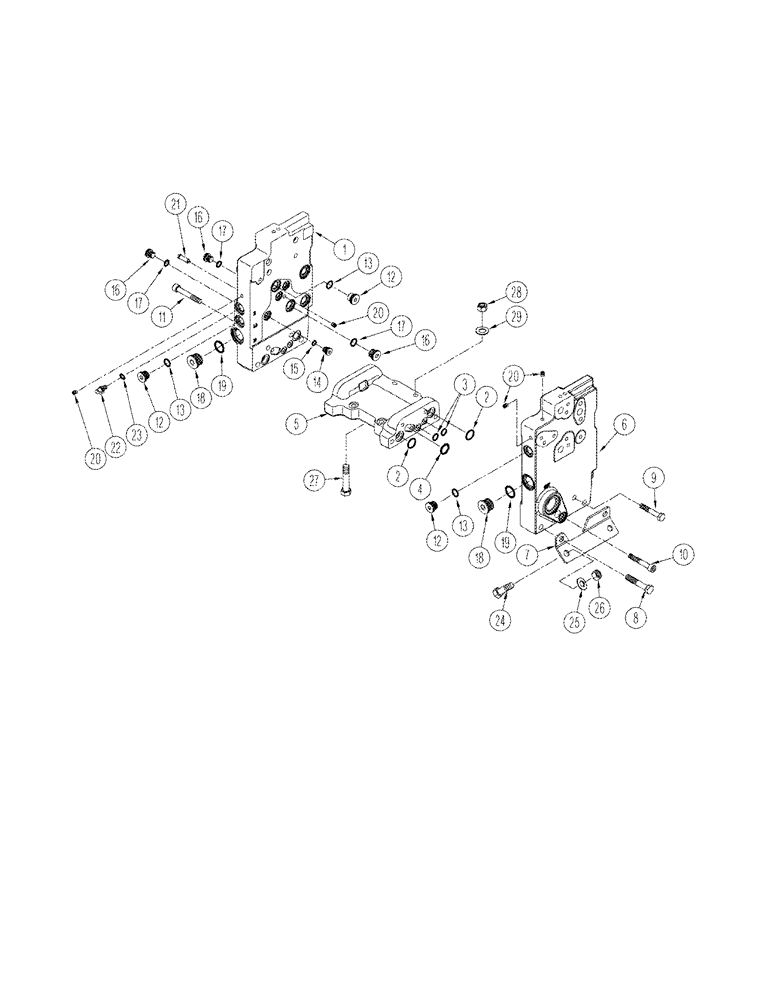

Запчасти Case IH STX375 (08-38) - MANIFOLD VALVE ASSY (08) - HYDRAULICS

337882A2

VALVE

manifold, consists of: Ref. 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

VALVE intake, left-hand

1шт.

2

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

4шт.

3

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

4шт.

4

238-5211

O-RING,0.139" Thk x 0.796" ID, -211, Cl 5, 75 Duro

2шт.

5

NSS

NOT SOLD SEPARAT

VALVE manifold, connector

1шт.

6

NSS

NOT SOLD SEPARAT

VALVE manifold, outlet, right-hand

1шт.

7

338681A1

BRACKET

2шт.

8

828-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

4шт.

9

828-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

2шт.

10

864-10065

HEX SOC SCREW,M10 x 65mm, Cl 8.8

1шт.

11

864-10070

HEX SOC SCREW,M10 x 70mm, Cl 8.8

1шт.

12

221578A1

PLUG,M18 x 1.5 ORB

Includes Ref. 13

10шт.

13

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

10шт.

14

221573A1

PLUG,Hex Soc, M12 x 1.5, ORB

M12 or x 13, Incl. Ref. 15

3шт.

15

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

3шт.

16

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Includes Ref. 17

7шт.

17

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

7шт.

18

221580A1

PLUG,M27 x 2 ORB

Includes Ref. 19

2шт.

19

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

20

353828A1

PLUG

9шт.

21

326965A1

FILTER STRAINER,10.46mm OD x 33.7mm L, 140 Micron

1шт.

22

358968A1

FITTING

diagnostic, M18 or x 1.5, if used, Includes: Ref. 23

1шт.

23

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

24

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

25

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

26

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

27

828-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

2шт.

28

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

29

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.
