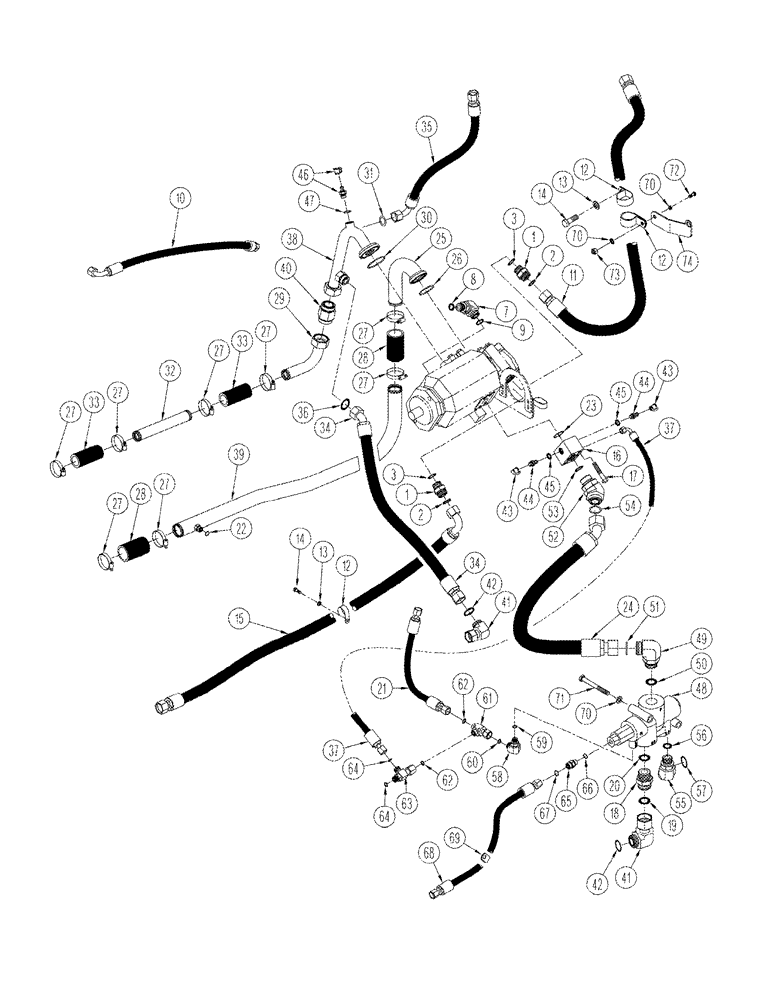

Запчасти Case IH STX375 (08-32) - HIGH OUTPUT HYDRAULICS PUMP LUBRICATION CIRCUIT (08) - HYDRAULICS

1

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

Incl. Ref. 2 and 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2шт.

4

201-311

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 7/16" - 20 Male ORB

Incl. Ref. 5 and 6

1шт.

5

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

6

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

7

201-341

ELBOW,90 Degree, 1"-14 x 1 1/16"-12, Adj, ORFS

1 fc sl x 1-1/16 or, Includes: Ref. 8 and 9

1шт.

8

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

363769A1

HOSE ASSY.

700 mm (27-1/2 in.)

1шт.

11

358860A1

HOSE ASSY.,25.4mm ID x 1625mm L

1625 mm (64 in.)

1шт.

12

515-24349

CLAMP,1 3/8", Insul, 7/16" Bolt

3шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

15

335103A1

HOSE ASSY.,25.4mm ID x 1525mm L

1525 mm (60 in.)

1шт.

16

316457A1

BLOCK

1шт.

17

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

4шт.

18

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

1-7/16 fc sl x 33 or, Includes: Ref. 19 and 20

1шт.

20

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

21

383586A1

HOSE ASSY.

1416 mm (56 in.)

1шт.

22

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

23

238-6029

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

1шт.

24

383351A1

HOSE ASSY.

675 mm (26-1/2 in.)

1шт.

25

300358A1

TUBE,50.8 mm OD, 266 mm Length

1шт.

26

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

27

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

8шт.

28

31-2427

HOSE,2.00" ID x 6.00"

102 mm (4 in.), cut from 1-4568

2шт.

29

352036A1

TUBE,38.1 mm OD, 160, 95 mm Length

1шт.

30

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

1шт.

31

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

32

352038A1

TUBE,38.1 mm OD, 550 mm Length

1шт.

33

1-4571

HOSE

114 mm (4-1/2 in.), cut from 1-4482

2шт.

34

335104A2

HOSE ASSY.

925 mm (36 in.)

1шт.

35

301409A1

HOSE ASSY.

885 mm (35 in.)

1шт.

37

327471A1

HOSE

724 mm (28 in.)

1шт.

38

352034A2

TUBE,38.1 mm OD, 321, 138 mm Length

1шт.

39

356814A1

TUBE,50.8 mm OD, 1020, 260 mm Length

1шт.

40

275680A1

VALVE

1-1/2

1шт.

41

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

Incl. Ref. 42

2шт.

42

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

178889A1

DIAGNOSTIC COUPLER

diagnostic, consists of: Ref. 43 - 44

1шт.

43

H434163

DUST CAP

2шт.

44

182606A1

HYD CONNECTOR

Includes: Ref. 45

2шт.

45

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

46

358968A1

FITTING

diagnostic, M18 or x 1.5, Includes: Ref. 47

1шт.

47

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

48

337481A1

VALVE

see Figure 08-36

1шт.

49

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. Ref. 50 and 51

1шт.

50

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

52

700-318

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. Ref. 53 and 54

1шт.

53

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

55

700-387

ELBOW,45 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

M20 fc sl x 2.7 or, Includes: Ref. 56 and 57

1шт.

56

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

57

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

58

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 59 and 60

1шт.

59

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

60

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

61

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. Ref. 62

1шт.

62

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

63

300209A1

VALVE

shuttle

1шт.

64

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

65

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 66, 67

1шт.

66

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

67

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

68

327451A1

HOSE ASSY.

1180 mm (46 in.)

1шт.

69

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

2шт.

71

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

2шт.

73

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

74

396278A1

BRACKET

1шт.

14

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

72

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

2

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

19

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

36

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

51

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

54

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

70

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
