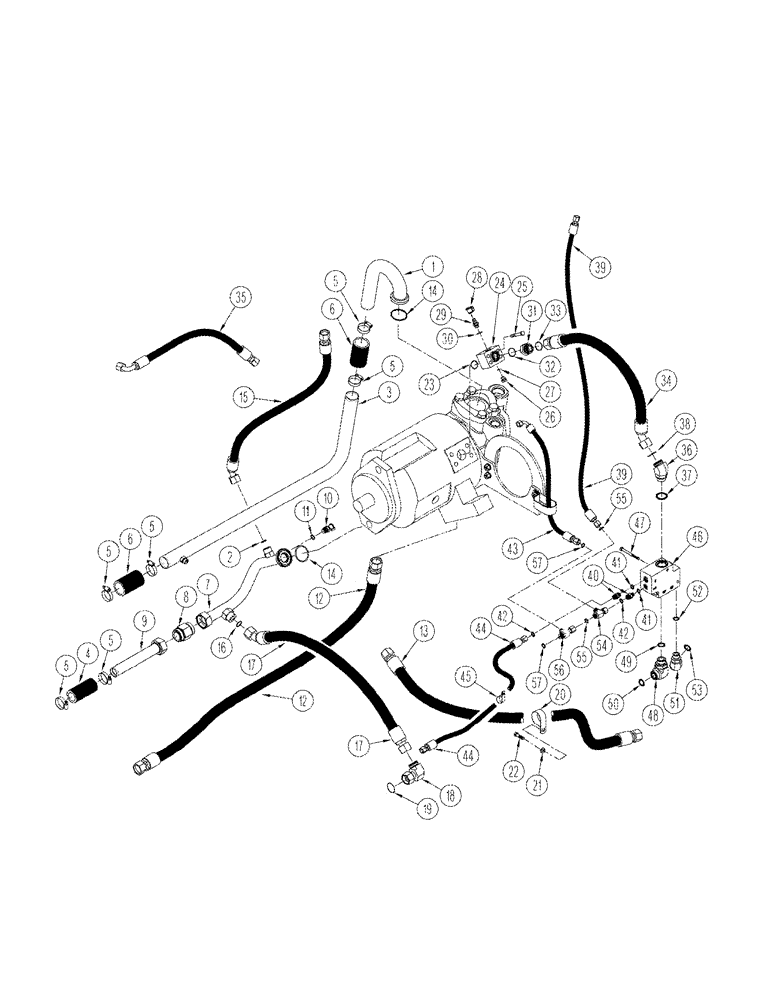

Запчасти Case IH STX375 (08-28) - STANDARD HYDRAULICS PUMP LUBRICATION CIRCUIT (08) - HYDRAULICS

1

332411A1

TUBE

1шт.

2

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

3

334868A2

TUBE,50.8 mm OD, 955, 365 mm Length

1шт.

4

1-4571

HOSE

114 mm (4-1/2 in.)

1шт.

5

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

6шт.

6

31-2427

HOSE,2.00" ID x 6.00"

102 mm (4 in.), cut from 1-4568

2шт.

7

332413A2

TUBE

1шт.

8

275680A1

VALVE

1-1/2

1шт.

9

334864A2

TUBE,38.1 mm OD, 375 mm Length

1шт.

10

358968A1

FITTING

diagnostic, M18 orb x 1.5, Includes: Ref. 11

1шт.

11

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

12

327466A1

HOSE

1486 mm (58 in.)

1шт.

13

327461A1

HOSE ASSY.

1750 mm (69 in.)

1шт.

14

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

2шт.

15

315576A1

HOSE ASSY.

935 mm (37 in.)

1шт.

17

335104A2

HOSE ASSY.

925 mm (36 in.)

1шт.

18

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

Incl. Ref. 19

1шт.

20

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

2шт.

21

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

23

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

24

398274A1

BLOCK

1шт.

25

426-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

4шт.

26

220064A1

PLUG,M14 x 1.5, ORB

Incl. Ref. 27

1шт.

27

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

178889A1

DIAGNOSTIC COUPLER

diagnostic, Includes: Ref. 28 and 29

1шт.

28

H434163

DUST CAP

1шт.

29

182606A1

HYD CONNECTOR

Includes: Ref. 30

1шт.

30

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

31

700-159

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M22 x 1.5 Male ORB

Incl. Ref. 32 and 33

1шт.

32

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

33

87473574

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

34

315577A2

HOSE ASSY.,25.4mm ID x 800mm L

800 mm (31 in.)

1шт.

35

395875A1

HOSE ASSY.

775 mm (30 1/2 in.)

1шт.

36

700-318

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. Ref. 37 and 38

1шт.

37

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

38

87473574

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

39

327459A1

HOSE ASSY.

1350 mm (53 in.)

1шт.

40

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 41, 42

2шт.

41

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

42

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

43

315574A2

HOSE ASSY.

623 mm (24-1/2 in.)

1шт.

44

397244A1

HOSE ASSY.

1105 mm (43-1/2 in.)

1шт.

45

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

2шт.

46

363294A1

VALVE

see Figure 08-31

1шт.

47

827-8090

BOLT,Hex, M8 x 1.25 x 90mm, Cl 10.9

2шт.

48

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. Ref. 49 and 50

1шт.

49

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

50

87473574

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

51

700-387

ELBOW,45 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

M20 fc sl x 2.7 or, Includes: Ref. 52 and 53

1шт.

52

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

53

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

54

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. Ref. 55

1шт.

55

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

56

300209A1

VALVE

shuttle

1шт.

57

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

22

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

16

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

19

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

33

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

38

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

50

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.
