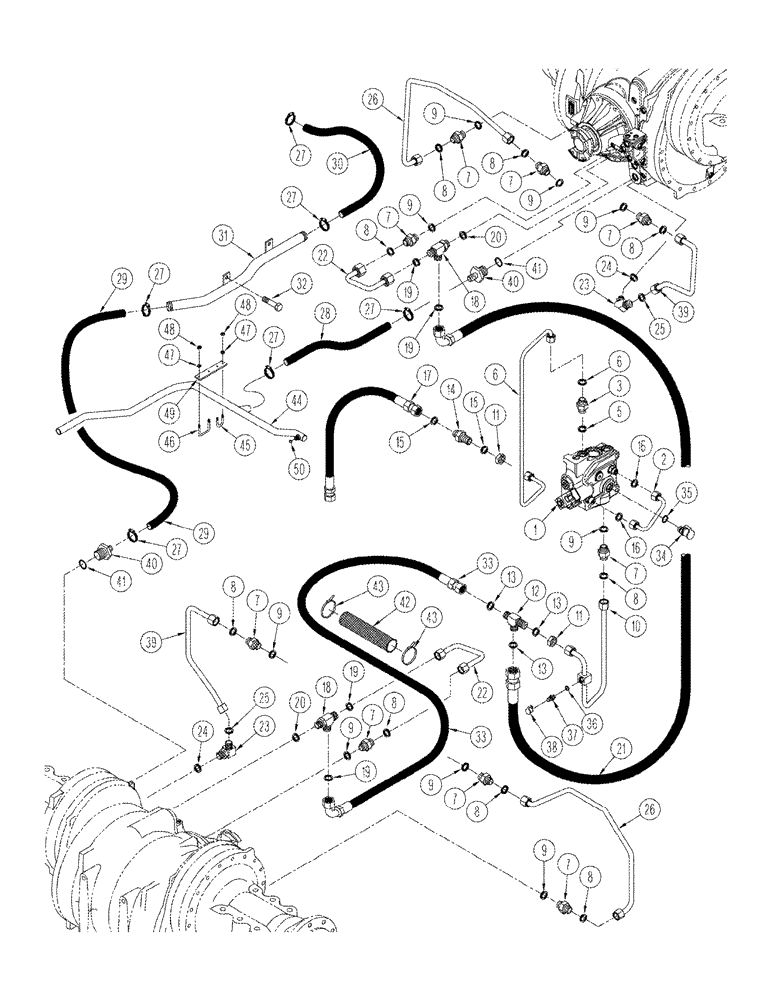

Запчасти Case IH STX375 (08-18) - AXLE HYDRAULICS LUBRICATION CIRCUIT QUADTRAC (08) - HYDRAULICS

1

339014A2

VALVE

see Figure 08-22

1шт.

2

341290A1

TUBE,9.5 mm OD, 101, 46 mm Length

1шт.

3

700-169

HYD CONNECTOR,13/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl. Ref. 4 and 5

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

6

391409A1

TUBE

1шт.

7

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. Ref. 8 and 9

1шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

9

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

10

341282A2

TUBE

1шт.

11

701-903

NUT,13/16" - 16

2шт.

12

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

M12 fc sl x blkhd fc sl, Includes: Ref. 13

1шт.

13

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

14

701-121

UNION,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl. Ref. 15

1шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

16

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

17

388475A1

HOSE

1067 mm (42 in.)

1шт.

18

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl. Ref. 19 and 20

2шт.

19

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

20

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

21

383968A2

HOSE ASSY.

1886 mm (74 1/4 in.)

1шт.

22

401386A1

TUBE

2шт.

23

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. Ref. 24 and 25

2шт.

24

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

25

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

26

370751A1

TUBE

final drive

2шт.

27

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

6шт.

28

395933A1

HOSE,1.00" ID x 15.00"

Cut from S118383

1шт.

29

340971A1

HOSE

1219 mm (48 in.), cut from 31-2755

1шт.

30

340972A1

HOSE

787 mm (31 in.), cut from 31-2756

1шт.

31

363713A1

TUBE,25.4 mm OD, 625, 55 mm Length

1шт.

33

375663A1

HOSE ASSY.

2165 mm (85 in.)

1шт.

34

358968A1

FITTING

diagnostic, M18 or x 1.5, Includes: Ref. 35

1шт.

35

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

36

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

37

392690A1

COUPLING

1шт.

38

399032A1

CAP

1шт.

39

376212A2

TUBE

2шт.

40

390348A1

STEM

axle drain, M33 or x barb, Includes: Ref. 41

2шт.

41

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

42

334783A1

SLEEVE

610 mm (24 in.)

1шт.

43

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in.

2шт.

44

394304A1

TUBE,25.4 mm OD

return

1шт.

45

253105A1

U-BOLT,Coined, M8 x 1.25 x 33.8 x 50mm

BOLT "U"

2шт.

46

396490A1

U-BOLT

BOLT "U"

2шт.

47

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

48

832-10408

NUT,M8 x 1.25, Cl 8.8

8шт.

49

394302A1

PLATE

2шт.

50

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

32

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.
