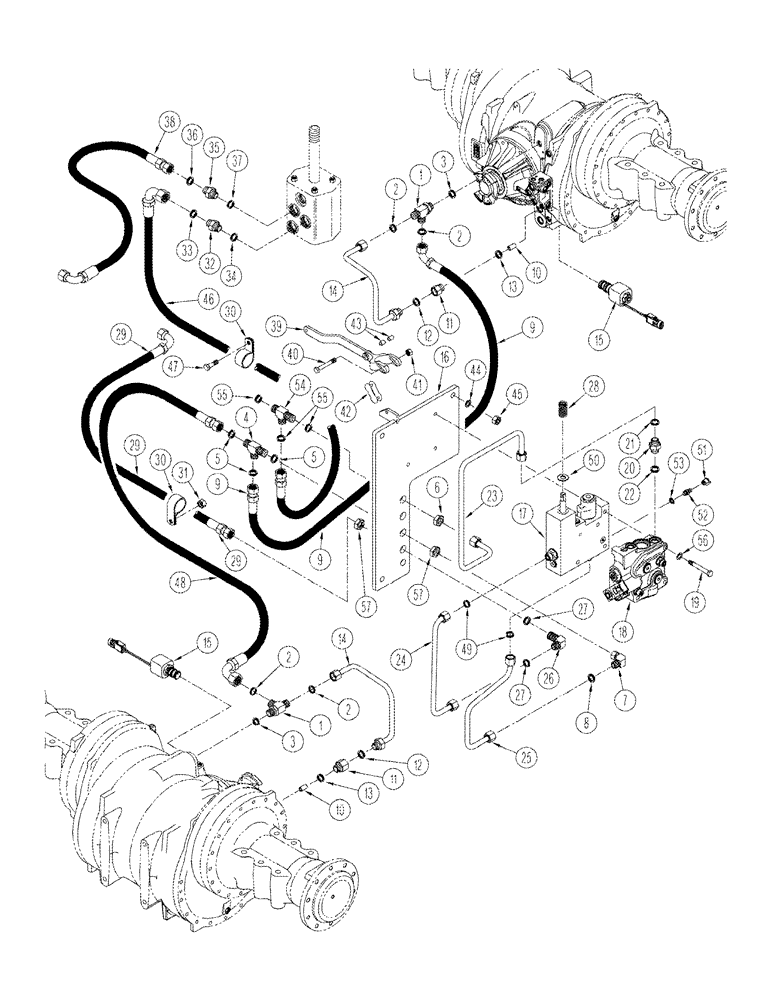

Запчасти Case IH STX375 (08-16) - AXLE HYDRAULICS PARK BRAKE CIRCUIT QUADTRAC, WITH DIFFERENTIAL LOCKS (08) - HYDRAULICS

1

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl. Ref. 2 and 3

2шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

3

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

4

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

M12 fc sl x blkhd fc sl, Includes: Ref. 5

1шт.

5

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

6

701-919

BHD LOCK NUT,1" - 14

3шт.

7

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. Ref. 8

1шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

9

383969A2

HOSE ASSY.

1845 mm (73 in.)

1шт.

341195A1

ORIFICE

consists of: Ref. 10 - 13

2шт.

10

NSS

NOT SOLD SEPARAT

Screw, Set, Hex Soc. M8 x 12, Cup Pt.

2шт.

11

NSS

NOT SOLD SEPARAT

Connector, 13/16" fcsl x M14 orb

1шт.

12

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

13

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

14

341276A1

TUBE

2шт.

15

384977A1

VALVE

differential lock, see Figure 08-51

2шт.

16

390920A1

PLATE ASSY.

mounting

1шт.

17

319774A4

VALVE

tow block, see Figure 08-23

1шт.

18

339014A2

VALVE

see Figure 08-22

1шт.

19

827-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 10.9

3шт.

20

700-115

HYD CONNECTOR,1" - 14 Male ORFS x M18 x 1.5 Male ORB

Incl. Ref. 21 and 22

1шт.

21

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

22

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

23

391411A1

TUBE

1шт.

24

341288A1

TUBE,12.2 mm OD, 317, 75 mm Length

1шт.

25

341284A1

TUBE,12.2 mm OD, 200, 181 mm Length

1шт.

26

701-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl. Ref. 27

1шт.

27

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

28

361897A1

SPRING

1шт.

29

352114A1

HOSE

1460 mm (57 in.)

1шт.

30

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

P-type

3шт.

31

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

32

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. Ref. 33 and 34

1шт.

33

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

34

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

35

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 36, 37

1шт.

36

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

37

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

38

335095A2

HOSE ASSY.

1050 mm (41 in.)

1шт.

39

390918A2

ARM

1шт.

40

827-6070

BOLT,Hex, M6 x 70mm, Cl 10.9

1шт.

41

832-10406

NUT,M6 x 1, Cl 8

1шт.

42

242-4412

CHAIN LINK

1шт.

43

392748A1

SPACER

2шт.

44

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

3шт.

45

829-1412

NUT,M12, Cl 10.9

3шт.

46

391790A2

HOSE ASSY.

2368 mm (93 in.)

1шт.

47

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

48

352112A3

HOSE ASSY.

2336 mm (92 in.)

1шт.

49

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

50

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

178889A1

DIAGNOSTIC COUPLER

diagnostic, Includes: Ref. 51 and 52

1шт.

51

H434163

DUST CAP

1шт.

52

182606A1

HYD CONNECTOR

Includes: Ref. 53

1шт.

53

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

54

701-429

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Male ORFS

Incl. Ref. 55

1шт.

55

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

56

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

3шт.

57

701-903

NUT,13/16" - 16

3шт.
