Запчасти Case IH STX375 (02-03) - ETHER START SYSTEM (02) - ENGINE

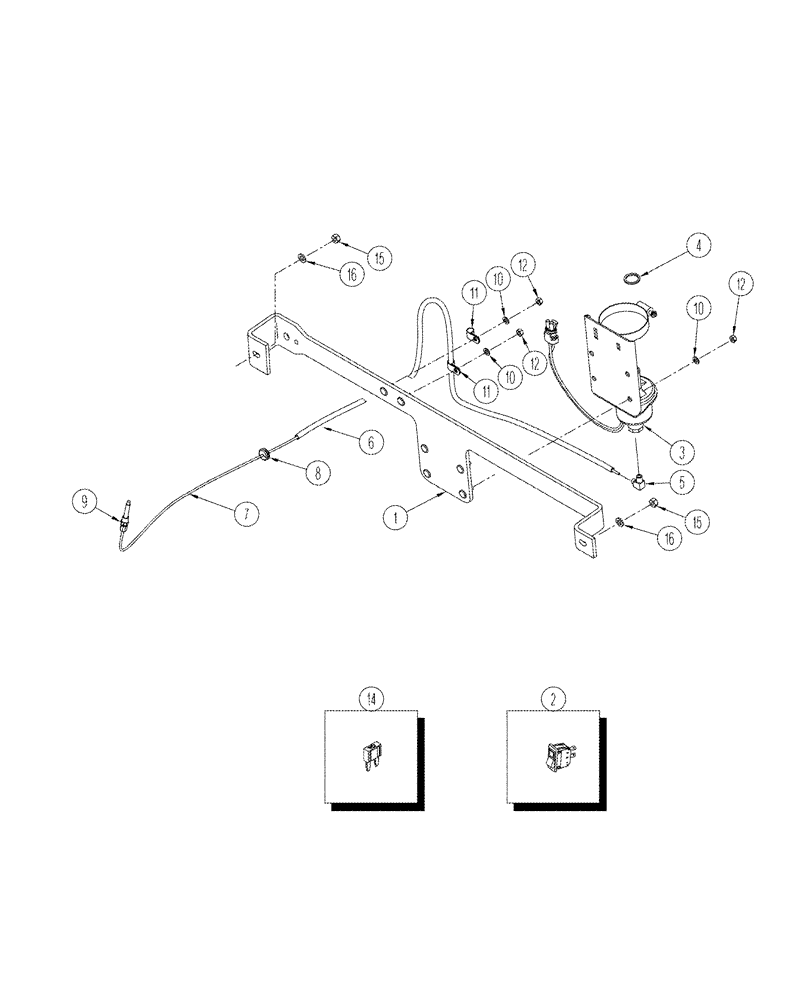

Схема запчастей Case IH STX375 - (02-03) - ETHER START SYSTEM (02) - ENGINE
6
1
8
10
2
4
16
12
12
15
10
10
9
16
15
3
11
14
11
12
5
7

Артикул

Название

Примечание

Количество

1

389900A1

MOUNTING PARTS

1шт.

2

229364A1

SWITCH

rocker, ether start

1шт.

392355A1

SOLENOID VALVE

electrical, consists of: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

VALVE control

1шт.

4

392377A1

GASKET

1шт.

5

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1/8 tube OD

1шт.

6

368730A2

TUBE,0.234" OD, 838 mm Length

1шт.

7

339865A2

TUBE,1.6 mm ID, 3.2 mm OD, 2005 mm Length

1шт.

8

248-2331

GROMMET,1/8" ID x 5/8" Groove Dia, Str Cut

1шт.

9

339866A2

NOZZLE INJECTION

atomizer

1шт.

10

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

7шт.

11

515-2179

CLAMP,5/16", Insul, 1/4" Bolt

(7.9 mm)

2шт.

12

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

7шт.

13

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

(7.9 mm) Ether start harness, Not illustrated

1шт.

14

121412A1

FUSE,10A, Mini, Red

1шт.

15

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

365978A1

KIT

ether start, see Figure 04-21, Includes: Ref. 1, 3 - 13

1шт.

Выбрано товаров: 18
