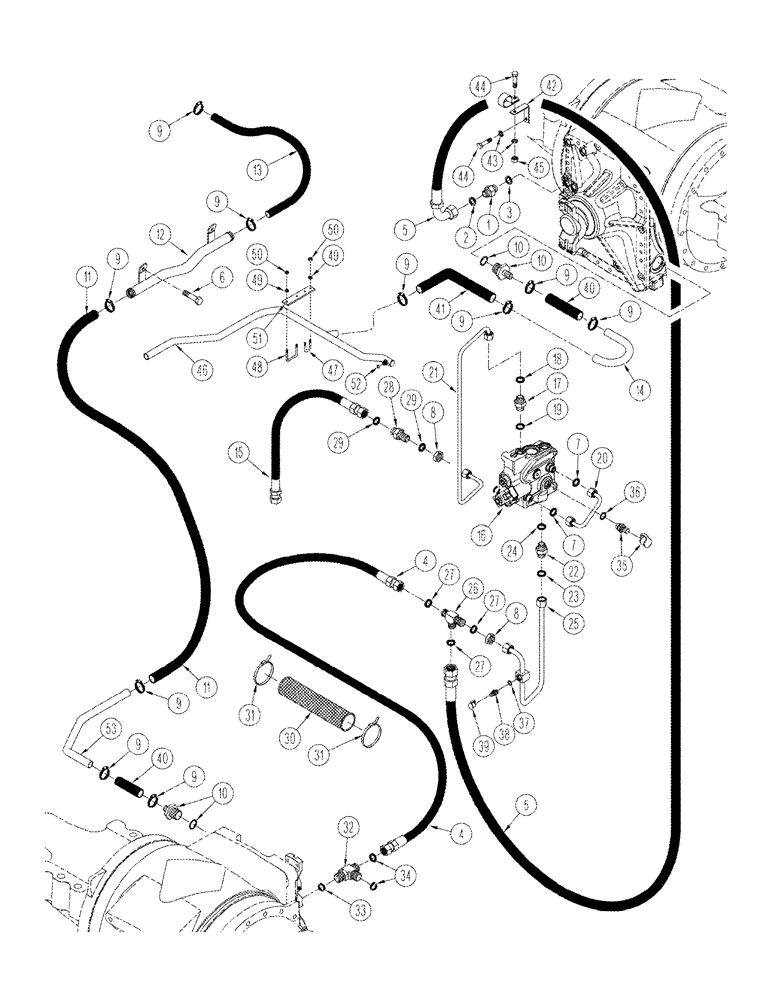

Запчасти Case IH STX375 (08-08) - AXLE HYDRAULICS LUBRICATION CIRCUIT STX 375 (08) - HYDRAULICS

1

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl. Ref. 2 and 3

1шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

3

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

4

390659A2

HOSE ASSY.

2178 mm (86 in.)

1шт.

5

382096A2

HOSE

2375 mm (93 1/2 in.)

1шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

8

701-903

NUT,13/16" - 16

2шт.

9

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

6шт.

10

337545A1

HYD CONNECTOR

axle drain

2шт.

11

404991A1

HOSE,1.00" ID x 38.00"

Cut from S118383

1шт.

12

363713A1

TUBE,25.4 mm OD, 625, 55 mm Length

1шт.

13

340972A1

HOSE

787 mm (31 in.), cut from 31-2756

1шт.

14

396679A2

TUBE

cut from 2-7659

1шт.

15

388475A1

HOSE

1067 mm (42 in.)

1шт.

16

339014A2

VALVE

see Figure 08-22

1шт.

17

700-169

HYD CONNECTOR,13/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl. Ref. 18 and 19

1шт.

18

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

19

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

20

341290A1

TUBE,9.5 mm OD, 101, 46 mm Length

1шт.

21

391409A1

TUBE

1шт.

22

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. Ref. 23 and 24

1шт.

23

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

24

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

25

341282A2

TUBE

1шт.

26

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

M12 fc sl x blkhd fc sl, Includes: Ref. 27

1шт.

27

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

28

701-121

UNION,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl. Ref. 29

1шт.

29

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

30

334783A1

SLEEVE

610 mm (24 in.)

1шт.

31

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in.

2шт.

32

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl. Ref. 33 and 34

1шт.

33

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

34

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

35

358968A1

FITTING

diagnostic, M18 or x 1.5, Includes: Ref. 36

1шт.

36

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

37

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

38

392690A1

COUPLING

1шт.

39

399032A1

CAP

1шт.

40

S118383X

LARGE HOSE

HOSE,LARGE 102 mm (4 in.), cut from 2-7659

2шт.

41

395933A1

HOSE,1.00" ID x 15.00"

Cut from S118383

1шт.

42

384501A1

PLATE

1шт.

43

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

44

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

45

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

46

394304A1

TUBE,25.4 mm OD

return

1шт.

47

253105A1

U-BOLT,Coined, M8 x 1.25 x 33.8 x 50mm

BOLT "U"

2шт.

48

396490A1

U-BOLT

BOLT "U"

2шт.

49

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

50

832-10408

NUT,M8 x 1.25, Cl 8.8

8шт.

51

394302A1

PLATE

2шт.

52

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

53

404965A1

TUBE

1шт.

6

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.
