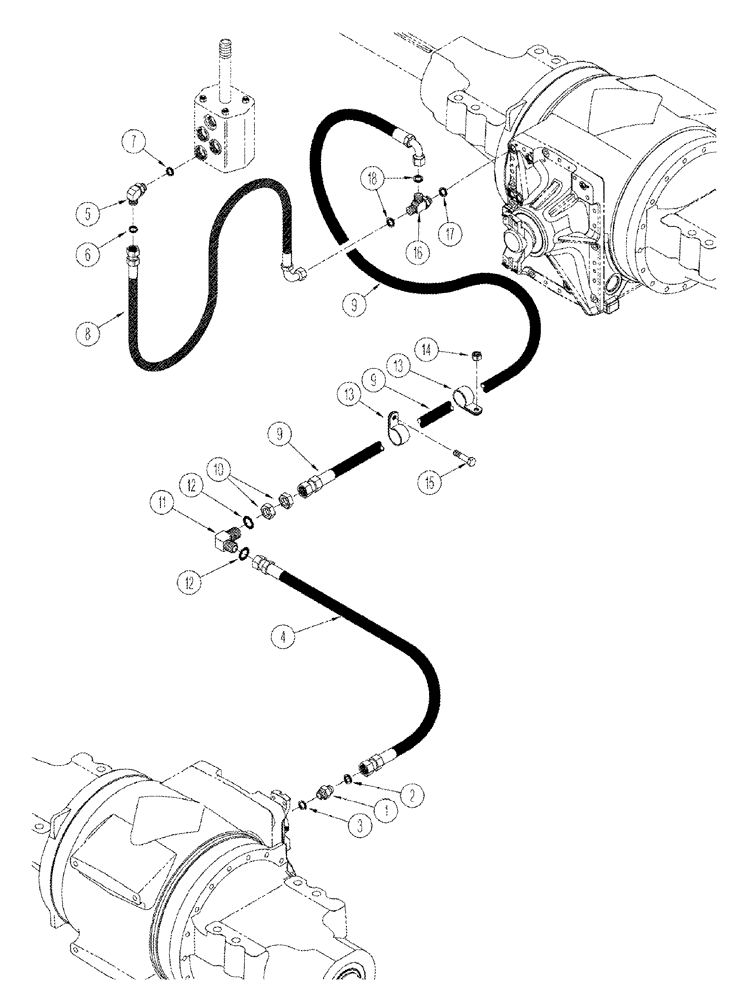

Запчасти Case IH STX375 (08-05) - AXLE HYDRAULICS SERVICE BRAKE CIRCUIT STX 375 (08) - HYDRAULICS

1

401760A1

VALVE

13/16 fc sl x 22 or, Includes: Ref. 2 and 3

1шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

3

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

4

392132A1

HOSE ASSY.

2125 mm (84 in.)

1шт.

5

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. Ref. 6 and 7

1шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

7

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

8

361957A2

HOSE

863 mm (34 in.)

1шт.

9

353609A1

HOSE ASSY.

2115 mm (83 in.)

1шт.

10

701-903

NUT,13/16" - 16

2шт.

11

701-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl. Ref. 12

1шт.

12

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

13

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

P-type

2шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

16

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl. Ref. 17 and 18

1шт.

17

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

18

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

15

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.
