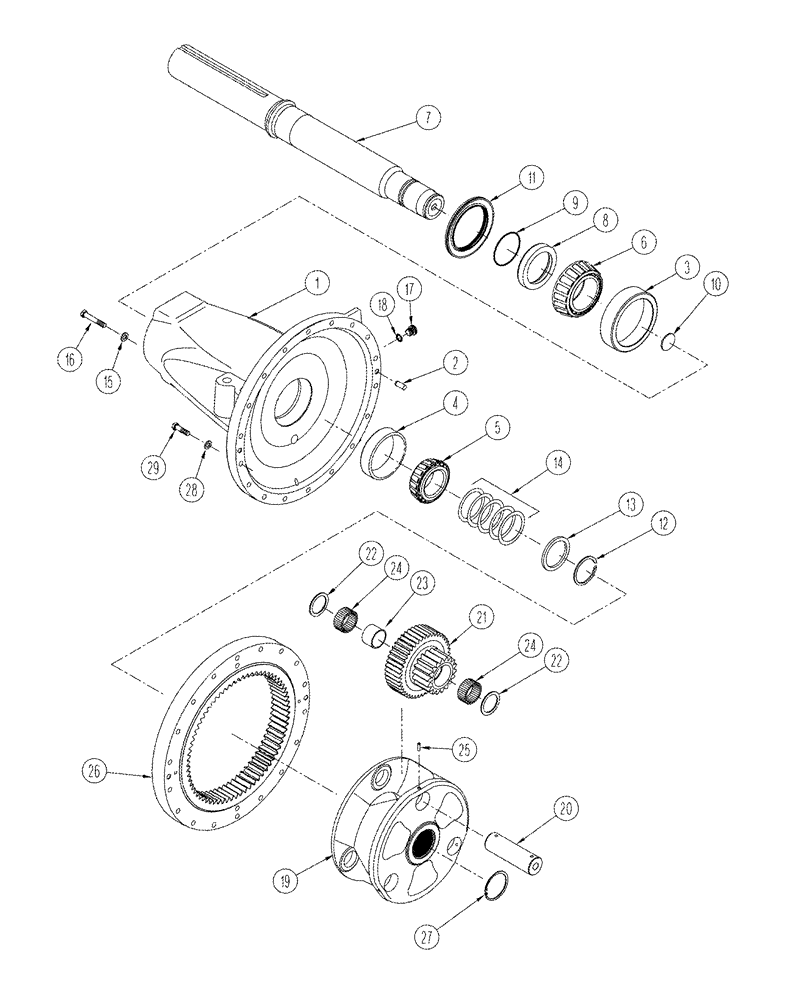

Запчасти Case IH STX375 (06-60) - AXLE ASSY FINAL DRIVE (STX 375 HEAVY DUTY, STX 440 WHEEL TRACTOR) (06) - POWER TRAIN

86985668

FRONT AXLE

HD W/Diff Lock

1шт.

86985668R

REMAN-FRONT AXLE w/D

HD W/Diff Lock

1шт.

86985668C

CORE-FRT AXLE W/DIFF

Return Number

1шт.

86985669

REAR AXLE

HD W/Diff Lock

1шт.

86985669R

REMAN-RR AXLE W/DI

HD W/Diff Lock

1шт.

86985669C

CORE-REAR AXLE W/DI

Return Number

1шт.

333401A1

AXLE CARRIER

consists of: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

837-16040

DOWEL,M16 x 40

2шт.

3

237698A1

BEARING CUP,212.74mm OD x 53.87mm W

1шт.

4

A136253

BEARING, CUP,171.45mm OD x 38.1mm W

1шт.

5

A136255

ROLLER BEARING,95.25mm ID x 48.26mm W

1шт.

6

237700A1

TAPERED BEARING,114.3127 mm ID x 66.7766 mm

1шт.

279723A5

SHAFT

axle, 115 mm (4-1/2 in.), consists of: Ref. 7 - 10

1шт.

7

NSS

NOT SOLD SEPARAT

SHAFT, 115 mm (4-1/2 in.)

1шт.

8

239529A1

BUSHING,114.91mm ID x 155mm OD x 26mm L

outboard

1шт.

9

238-5246

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

1шт.

10

1981270C1

INSERT

1шт.

11

84225952

OIL SEAL,152.7mm ID x 214.31mm OD x 20.5mm Thk

2шт.

12

243856A1

RING, SNAP

RING SNAP

1шт.

13

124744C1

WASHER,95.63mm ID x 120mm OD x 8mm Thk

1шт.

14

143921C1

SHIM,95mm ID x 120mm OD x 0.76mm Thk

1шт.

14

143922C1

SHIM,95mm ID x 120mm OD x 0.3mm Thk

1шт.

14

143923C1

SHIM,95mm ID x 120mm OD x 0.13mm Thk

1шт.

14

143924C1

SHIM,95mm ID x 120mm OD x 0.1mm Thk

1шт.

14

143925C1

SHIM,95mm ID x 120mm OD x 0.08mm Thk

1шт.

15

95-31038

WASHER,5/16"

3/4 x 1-1/8 x 1/16

4шт.

16

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

4шт.

17

221578A1

PLUG,M18 x 1.5 ORB

Includes Ref. 18

1шт.

18

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

19

357484A3

CARRIER

planetary

1шт.

20

357483A1

SHAFT

3шт.

21

357347A2

GEAR,44T/18T

18 T / 44 T

3шт.

22

377651A1

THRUST WASHER

6шт.

23

377650A1

SPACER

3шт.

24

360785A1

NEEDLE

1шт.

25

838-3826

PIN,M8 x 26, Coiled

3шт.

26

357346A1

GEAR

RING, 69 T

2шт.

27

101-11350

SNAP RING,#350, Ext

2шт.

28

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

36шт.

29

828-16150

BOLT,Hex, M16 x 2 x 150mm, Cl 10.9

36шт.
