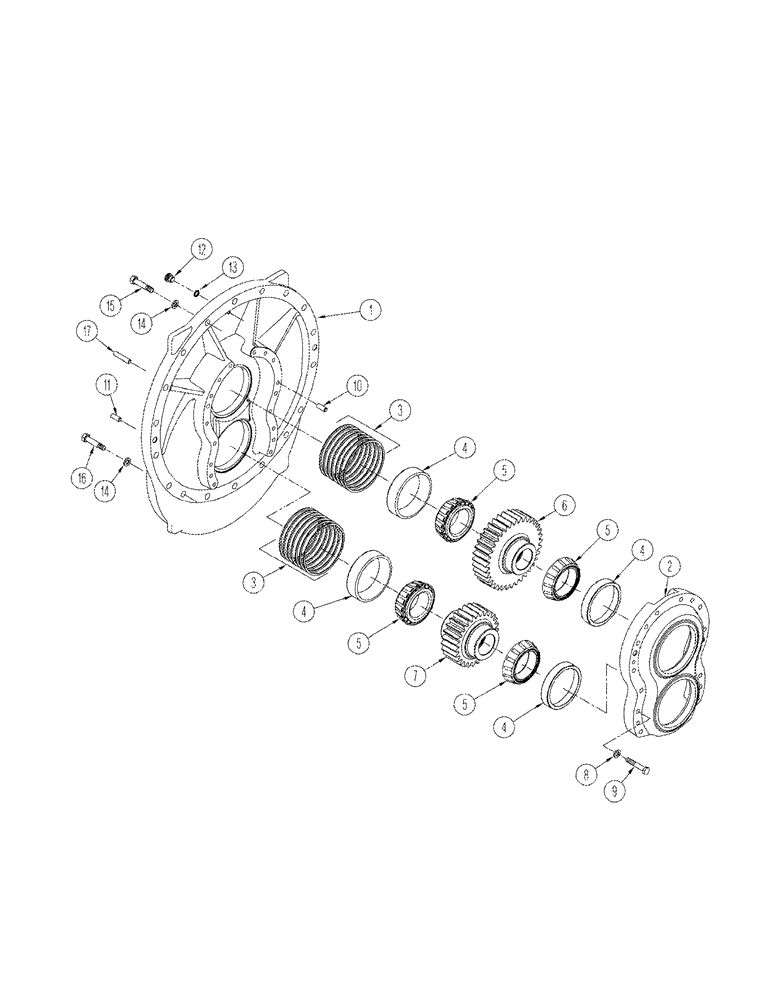

Запчасти Case IH STX375 (06-59) - AXLE ASSY OFFSET BEARING (QUADTRAC TRACTOR) (06) - POWER TRAIN

87423305

FRONT AXLE

QT W/Diff

1шт.

87423305R

REMAN-AXLE

QT Front Axle W/ Diff - REMANUFACTURED

1шт.

87423305C

CORE-FRT AXLE w/DL

CORE-PRESSURE SWITCH QT Front Axle W/Diff - Return Number

1шт.

87423306

REAR AXLE

QT W/Diff

1шт.

87423306R

REMAN-REAR AXLE 4WD

REMAN-REAR AXLE w/DIFF LOCK QT Rear Axle W/ Diff

1шт.

87423306C

CORE-REAR AXLE W/DI

QT Rear Axle W/Diff, Return Number

1шт.

284192A3

BEARING ASSY

offset bearing, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

CARRIER

1шт.

2

NSS

NOT SOLD SEPARAT

COVER

1шт.

3

358064A1

SHIM,2.2mm Thk

1шт.

3

358065A1

SHIM,149.33mm ID x 160mm OD x 2.3mm Thk

1шт.

3

358066A1

SHIM,2.4mm Thk

1шт.

3

358067A1

SHIM,2.5mm Thk

1шт.

3

358068A1

SHIM,149.33mm ID x 160mm OD x 2.6mm Thk

1шт.

3

358069A1

SHIM,2.7mm Thk

1шт.

3

358070A1

SHIM,149.33mm ID x 160mm OD x 2.8mm Thk

1шт.

4

284190A1

BEARING CUP,154.68mm OD x 24.51mm W

4шт.

5

299245A1

ROLLER BEARING,96.8505 mm ID x 28.882 mm

4шт.

6

279845A1

GEAR

36 T

1шт.

7

279846A1

GEAR

27 T

1шт.

8

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

16шт.

9

828-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

16шт.

10

837-12035

DOWEL,M12 x 35

2шт.

11

837-16040

DOWEL,M16 x 40

2шт.

12

221578A1

PLUG,M18 x 1.5 ORB

Includes Ref. 13

2шт.

13

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

14

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

16шт.

15

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

11шт.

16

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

5шт.

17

353-22

PLUG,Cap, 1.282" OD

14шт.
