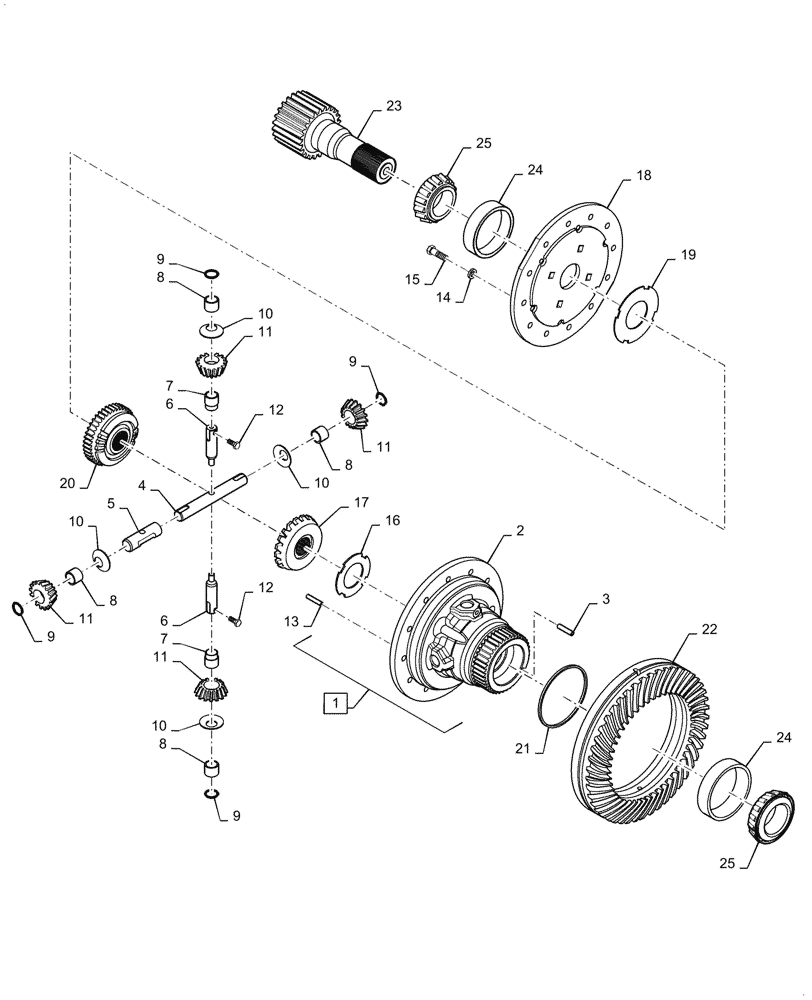

Запчасти Case IH STX375 (06-57) - AXLE ASSY DIFFERENTIAL WITHOUT DIFFERENTIAL LOCKS, STX 375 HEAVY DUTY, STX 440 QUADTRAC TRACTOR (06) - POWER TRAIN

1

47650237

CARRIER

Differential, Incl 2 - 3

1шт.

2

NSS

NOT SOLD SEPARAT

Differential Housing, Incl in 1

1шт.

3

1342851C1

PLUG

10mm

1шт.

4

92907C1

SHAFT

Pinion, Long

1шт.

5

1289349C1

SPACER

Pinion Shaft

1шт.

6

92906C1

SHORT SHAFT

Pinion

2шт.

7

1289350C1

SPACER

Pinion Shaft

2шт.

8

1270697C1

NEEDLE BEARING

Pinion

112шт.

28 Per Gear

1шт.

9

1289348C1

RING

Thrust

4шт.

10

92718C2

THRUST WASHER,32.7mm ID x 70mm OD x 1.6mm Thk

4шт.

11

92905C1

PINION

Gear

4шт.

12

1997421C1

BOLT

Differential Cross Pin, M10 x 1.5

2шт.

13

137023A1

DOWEL

10mm OD x 60mm L

6шт.

14

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

24шт.

15

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

24шт.

16

227116A2

THRUST WASHER

82mm ID x 142mm OD x 1.62mm Thk

1шт.

17

1259633C3

GEAR

Differential, 20T

1шт.

18

84323114

COVER

Differential Case, W/O Lock

1шт.

19

84321280

SHIM,95mm ID x 158mm OD x 4.91mm Thk

1шт.

20

1259634C3

PINION

Lock

1шт.

21

148939C1

SEALING RING,OD 200.60 mm

1шт.

22

NSS

NOT SOLD SEPARAT

Drive Gear, 53T

1шт.

Front Axle

1шт.

22

NSS

NOT SOLD SEPARAT

Drive Gear

1шт.

Rear Axle

1шт.

23

279844A2

SHAFT,271mm L

Sun Gear, Short

1шт.

Quadtrac Uses 2

1шт.

23

279719A2

SUN GEAR

Short

1шт.

STX375 HD Uses 1, STX440 Uses 1

1шт.

24

253931A1

BEARING, CUP,179.99mm OD x 28.95mm W

2шт.

25

253932A1

ROLLER BEARING,119.99mm ID x 37.98mm W

2шт.
