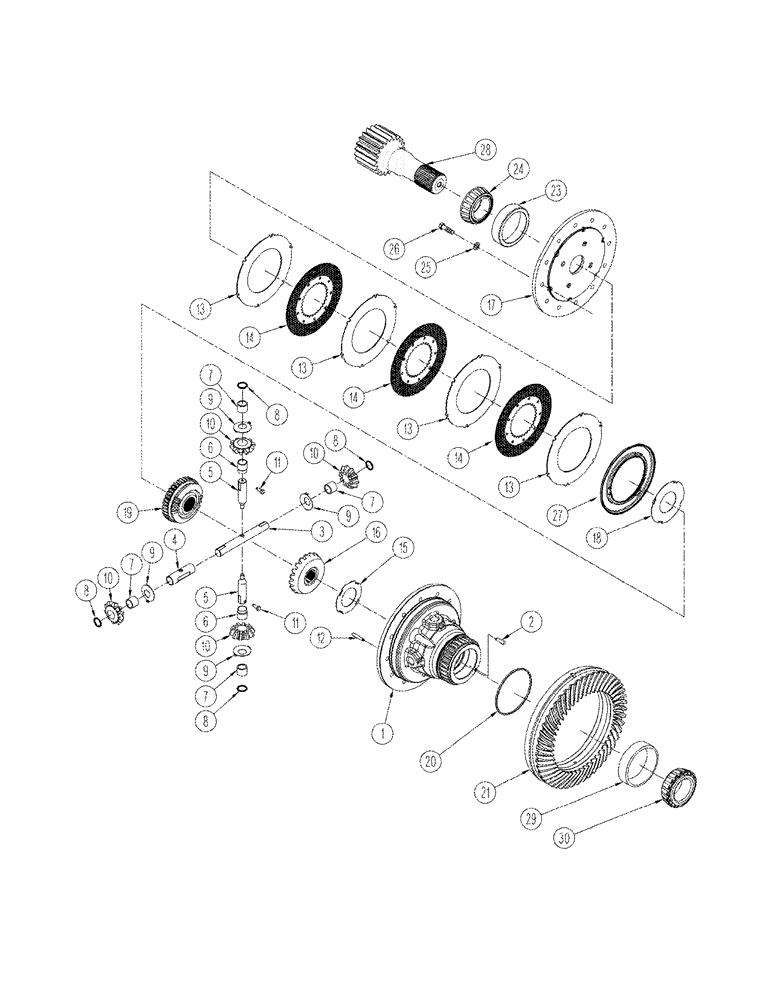

Запчасти Case IH STX375 (06-56) - AXLE ASSY DIFFERENTIAL WITH DIFFERENTIAL LOCKS, STX 375 HEAVY DUTY, STX 440 QUADTRAC TRACTOR (06) - POWER TRAIN

86985668

FRONT AXLE

HD W/Diff Lock

1шт.

86985668R

REMAN-FRONT AXLE w/D

HD W/Diff Lock

1шт.

86985668C

CORE-FRT AXLE W/DIFF

Return Number

1шт.

86985669

REAR AXLE

HD W/Diff Lock

1шт.

86985669R

REMAN-RR AXLE W/DI

HD W/Diff Lock

1шт.

86985669C

CORE-REAR AXLE W/DI

Return Number

1шт.

87423305

FRONT AXLE

QT W/Diff Lock

1шт.

87423305R

REMAN-AXLE

QT W/Diff Lock

1шт.

87423305C

CORE-FRT AXLE w/DL

Return Number

1шт.

87423306

REAR AXLE

QT W/Diff Lock

1шт.

87423306R

REMAN-REAR AXLE 4WD

QT W/Diff Lock

1шт.

87423306C

CORE-REAR AXLE W/DI

Return Number

1шт.

389330A2

DIFFERENTIAL ASSY

consists of: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

1342851C1

PLUG

10 mm

1шт.

3

92907C1

SHAFT

pinion, long

1шт.

4

1289349C1

SPACER

1шт.

5

92906C1

SHORT SHAFT

pinion

2шт.

6

1289350C1

SPACER

2шт.

7

1270697C1

NEEDLE BEARING

28 per gear

112шт.

8

1289348C1

RING

4шт.

9

92718C2

THRUST WASHER,32.7mm ID x 70mm OD x 1.6mm Thk

4шт.

10

92905C1

PINION

4шт.

11

1997421C1

BOLT

2шт.

12

137023A1

DOWEL

10 x 60 mm

6шт.

13

92915C1

PLATE,192mm ID x 322mm OD x 2.74mm Thk

separator

4шт.

14

120679C1

PLATE

friction

3шт.

15

227116A2

THRUST WASHER

1шт.

16

1259633C3

GEAR

1шт.

17

253609A3

COVER

1шт.

18

227117A2

THRUST WASHER,92mm ID x 176mm OD x 1.62mm Thk

1шт.

19

1259634C3

PINION

lock

1шт.

20

148939C1

SEALING RING,OD 200.60 mm

1шт.

352211A1

GEAR SET

pinion shaft, front axle, see Figures 06-52, 06-57, consists of: Ref. 21

1шт.

352212A1

ROLLER BEARING

pinion shaft and gears, rear axle, see Figures 06-53, 06-57, consists of: Ref. 22, not illustrated

1шт.

21

NSS

NOT SOLD SEPARAT

GEAR drive, front axle, 53 T

1шт.

22

NSS

NOT SOLD SEPARAT

COVER drive, rear axle

1шт.

23

253931A1

BEARING, CUP,179.99mm OD x 28.95mm W

1шт.

24

253932A1

ROLLER BEARING,119.99mm ID x 37.98mm W

1шт.

25

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

24шт.

26

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

24шт.

27

1997422C1

PISTON

brake

1шт.

28

279844A2

SHAFT,271mm L

sun gear, short, Quadtrac (2)

1шт.

28

279719A2

SUN GEAR

short, STX 375 heavy duty (1), STX 440 (1)

1шт.

29

622337C1

BEARING CUP,129.99mm OD x 23.90mm Thk

1шт.

30

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

1шт.
